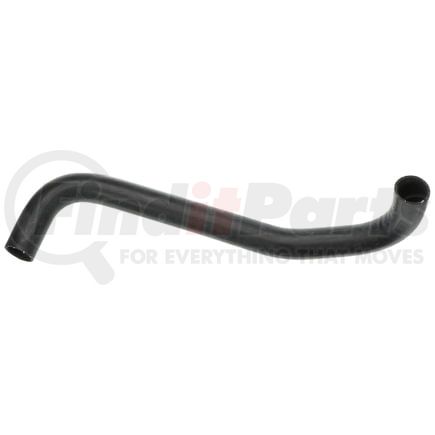

(888) 312-8812 Login SignupGATES 22134 Premium Molded Coolant Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 22134 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
1998-1997 GMC, C7500, Caterpillar 3116 Diesel, Upper - Eng. To Rad.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22134 Specifications
Product Attributes
| Centerline Length | 36.9 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 2 in |
| End 2 Inside Diameter | 2 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 937 MM |
| End 1 Inside Diameter | 51 MM |
| End 2 Inside Diameter | 51 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00072053171983 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22134 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 26271X |
| Carquest | 22134 |
| General Motors | 15691290, 15691292 |
| NAPA Belts/Hose | 9633 |
GATES 22134 Fits Vehicles
- Chevrolet B7 (1997-1998)
- Chevrolet C6500 Kodiak (1997-1998)
- GMC B7 (1993-1998)
- GMC C6500 Topkick (1997-1998)
- GMC C7500 Topkick (1997-1998)
- Chevrolet C7500 Kodiak (1997-1998)
GATES 22134 Cross References
We have 2 alternatives for the 22134 by GATES:
GATES 22134 Customer Reviews
No reviews yet
Be the first to review this product!
