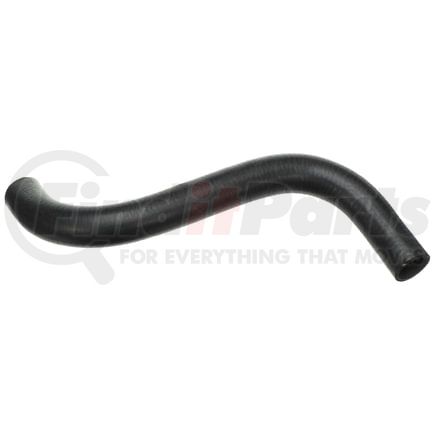

GATES 20795 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
1992-1985 Volkswagen, Golf, 4-Cyl. 1.8 L, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 20795 Specifications
Product Attributes
| Centerline Length | 20.2 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.25 in |
| End 2 Inside Diameter | 1.25 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 513 MM |
| End 1 Inside Diameter | 32 MM |
| End 2 Inside Diameter | 32 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053053098 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 20795 Cross References
| Brand | Part Number |
|---|---|
| 42610795 | |
| ACDelco | 24042L |
| Beck/Arnley | 142-6058, 142-6062, 142-1841, 142-5909, 142-5910 |
| Canadian Tire | 14-1659-6 |
| Carquest | 20795 |
| Continental Belt | 61524 |
| DAYCO | 71657 |
| Datsun/Nissan | 2150385E00, 215031E400, 215039E000, 21503D9000 |
| Dayco | 71168, D71168, 71560, 71588, 71668, C71588, D71560, D71668, 71097, 71636, D71097, D71636 |
| Duralast | D71636 |
| FAIRCHILD | MCH1329 |
| Firestone | 51319680 |
| Ford | F32Z 8260 B |
| General Motors | 14055718, 22538632, 25538632, 10082862, 10170192, 22548322 |
| Goodyear | 462, 61524, 62408, 62409 |
| Hyster | 225466 |
| Hyundai | 2541222050 |
| MasterPro | 20795, C0795 |
| Mazda | FS051518X, FS1115187, FS111518X, FS591518X, FS591518XA, FSC415186 |
| Mercedes-Benz | 1155010682, 1155010782, 1235010082, 1155011582 |
| Motorcraft | KM-2368, KM-3102 |
| NAPA Belts/Hose | 7558 |
| Rapro | R25154, R28105 |
| Roadmax | C0795 |
| Toyota | 1657162050 |
| Trugrip | 2132 |
| Ultralast | C0795 |
| Vera | 54-03511, 54-05217, 54-06123 |
| Volkswagen | 191121101B, 191121101Q |
GATES 20795 Fits Vehicles
- Plymouth Horizon (1980)
- Mercedes-Benz 200 (1968)
- Mazda 626 (1993-1997)
- Mercedes-Benz 220D (1968-1973)
- Mercedes-Benz 220 (1968-1973)
- Mercedes-Benz 200D (1968)
- Plymouth TC3 (1980)
- Chevrolet S10 (1983-1984)
- Volkswagen Passat (1991)
- Mazda MX-6 (1993-1997)
- Toyota T100 (1995-1998)
- Volkswagen Jetta (1985-1992)
- Volkswagen Golf (1985-1992)
- Nissan Maxima (1989-1994)
- Nissan Altima (1993-2001)
- Mercedes-Benz 300D (1979-1985)
- Mercedes-Benz 300TD (1979-1985)
- Mercedes-Benz 300SD (1981-1985)
- Mercedes-Benz 300CD (1980-1985)
- Mercedes-Benz 240D (1974, 1979-1983)
- Mercedes-Benz 230 (1974-1976)
- Ford Probe (1993-1997)
- Pontiac Grand Am (1992-1993)
- Oldsmobile Cutlass Cruiser (1989-1993)
- Oldsmobile Cutlass Ciera (1989-1993)
- Oldsmobile Cutlass Calais (1989-1991)
- Oldsmobile Achieva (1992-1993)
- GMC S15 (1983-1984)
- GMC S15 Jimmy (1983-1984)
- Chevrolet S10 Blazer (1983-1984)
- Buick Skylark (1989-1993)
- Buick Century (1989-1993)
- Dodge Omni (1980)
- Daewoo Nubira (1999)
- Hyundai Accent (1996-1997)
