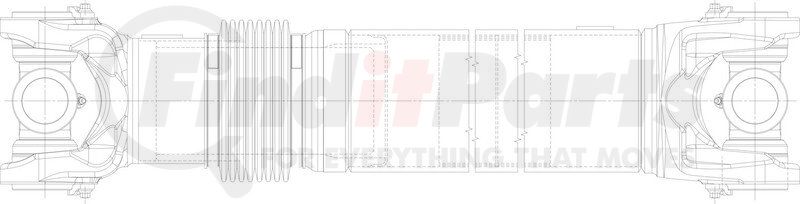

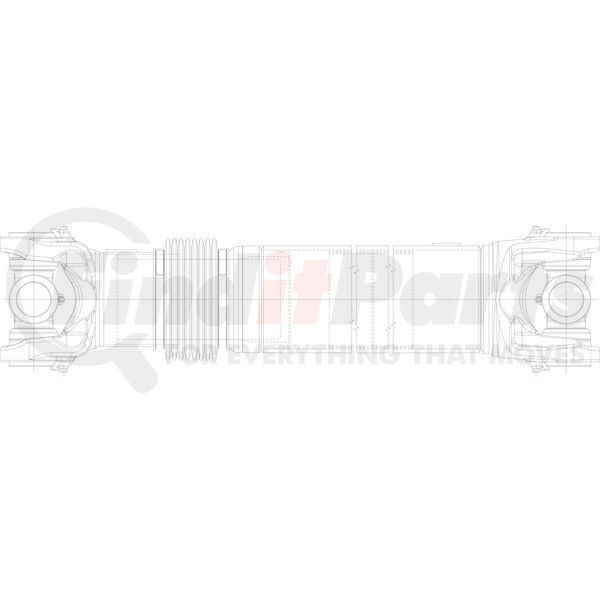

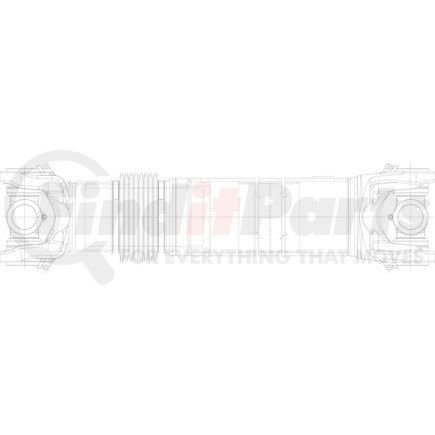

Dana 170IA55013C-90M - Drive Shaft Interaxle
$1,89349
62 day lead time
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | SPL170 |
| Material | Steel |
| Tube Size (MM) | 116.7 x 4.57 |
| Tube Size (IN) | 4.59 x .180 |
| Slip (MM) | 150.0000 |
| Slip (IN) | 5.9055 |
| Length End To End Collapse(MM) | 546.4000 |
| Length End To End Collapse(IN) | 21.5118 |
| Tube Length (MM) | 90.0000 |
| Tube Length (IN) | 3.5433 |
| Phased - Degrees | 48 |
| VMRS | 024000000 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 61.65 LB |
| Country of Origin | United States |
Product Description
Drive Shaft Interaxle
Features & Benefits
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Product Attributes
| Series | SPL170 |
| Shaft Material | Steel |
| Max Slip (IN) | 5.9055 |
| Max Slip (MM) | 150.0000 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913346553 |
| VMRS Code | 024000000 |
Part Interchanges
- Dana Commercial Vehicle Service Parts 170IA55009C-100M
- Dana Commercial Vehicle Service Parts 170IA55009C-110M
- Dana Commercial Vehicle Service Parts 170IA55013C-90MR
- International Harvester (IHC) 417LTG0545
- International Harvester (IHC) 417LTG0550
- Navistar 417LTF0545
- Navistar 417LTF0550
- Navistar 417LTG0545
- Navistar 417LTG0550
- Navistar DS170IA55013C90M
- Paccar Parts 1701A55013C90M
- Paccar Parts E0560080550
- Paccar Parts E05-6008-0550
- Paccar Parts E05D170A24800C0550
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
