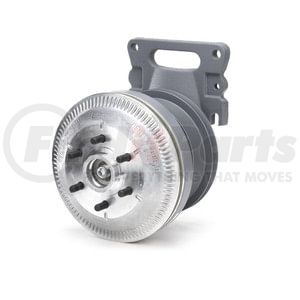

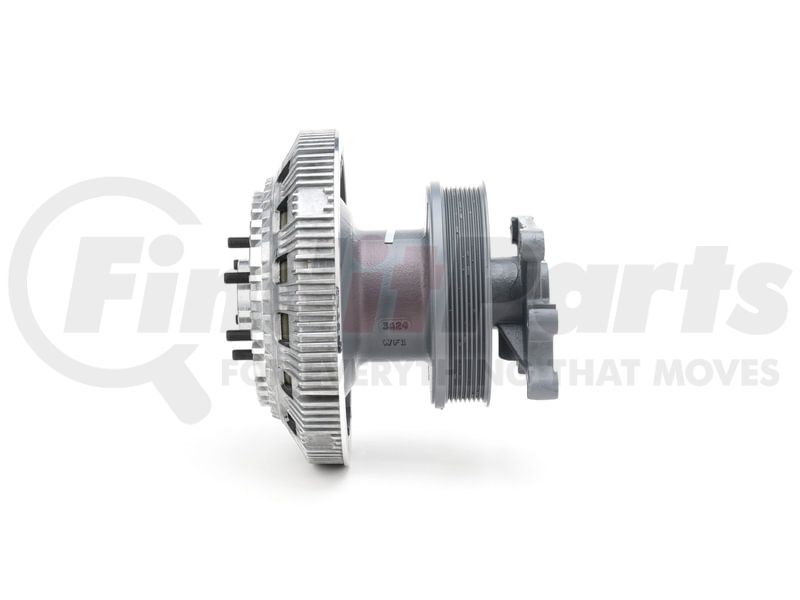

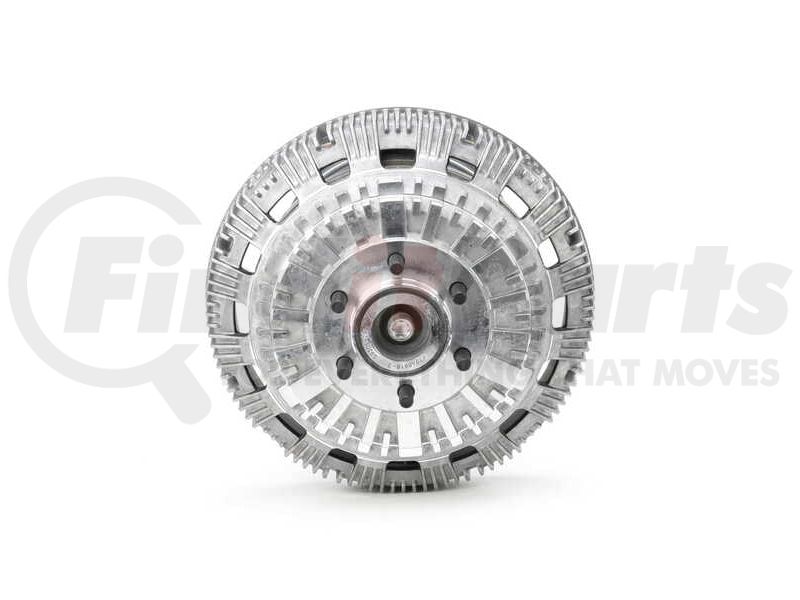

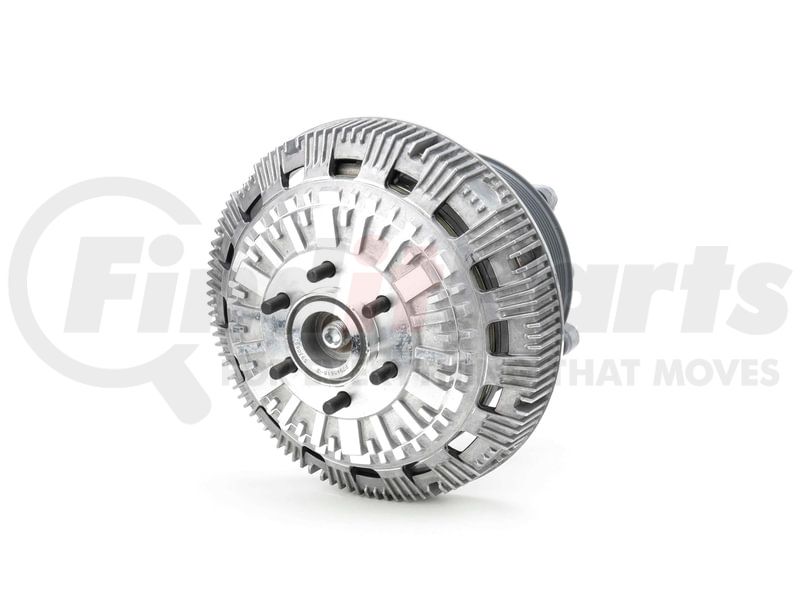

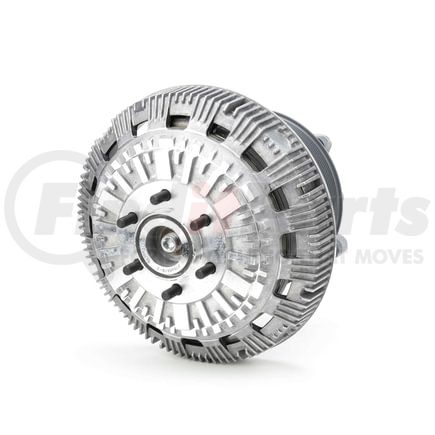

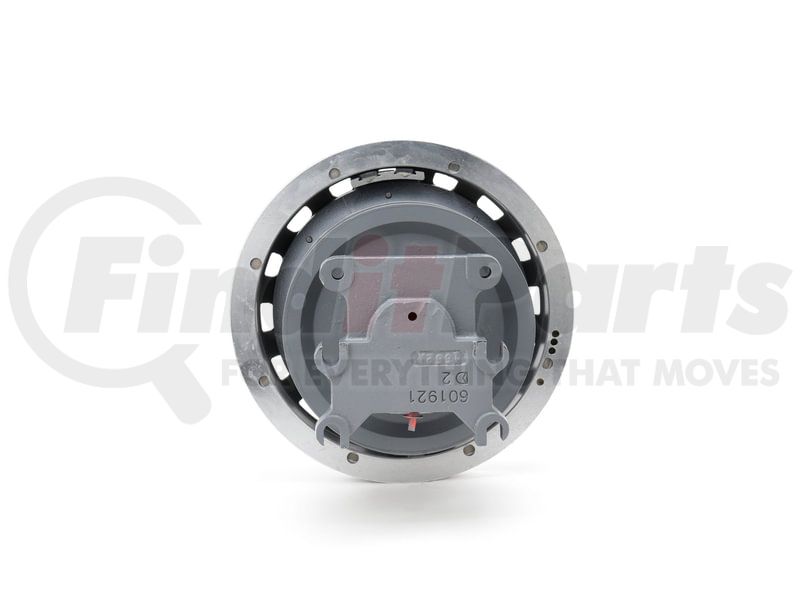

HORTON 79A8618-2 Part Description
Manufacturer
Product Description
Engine Cooling Fan Clutch
Application Summary
AUTOCAR
Features & Benefits
- Built to the same specifications as Horton Genuine models
- Easy-to-install, exact drop-in replacements
- Total cost can be less than rebuilding
- Two-year warranty for line-haul applications
- Credit for old Horton or competitor cores
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman
HORTON 79A8618-2 Specifications
Product Attributes
| BACK PULLEY DIAMETER | 6.79 IN |
| BELT CONFIGURATION | 8K |
| Belt Groove Location | 2.25 IN |
| BOLT CIRCLE | 3.5 IN |
| Center of JB To Top Right Mounting Hole | 1.73 IN |
| Fan Blade Stud Length | 0.82 IN |
| FAN PILOT DIAMETER | 2.56 IN |
| Heavy Duty | 1 |
| HORIZONTAL MOUNTING DISTANCE | 4.41 IN |
| Overall Length | 9.13 IN |
| Stud Thread Size | .375-24 UNF IN |
| VERTICAL MOUNTING DISTANCE | 2.01 IN |
| Fan Bolt Circle | 3.5 |
| FRONT PULLEY DIAMETER | - |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 988618 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 79A8618-2 Cross References
| Brand | Part Number |
|---|---|
| ECOEW3124, HOR79A86182 | |
| Freightliner | HOR 79A8618 2 |
| Horton | K798618-2, R798618-2 |
| Kit Masters | 98618-2 |
| MCI | HOR79A86182 |
| Mack | 3912-79A86182 |
| NAVISTAR | FLT986182 |
| NAVISTARPFC | FLT986182 |
| Navistar | HOR79A86182, HOR79A8618-2 |
| Paccar Parts | 79A8618-2RMAN |
