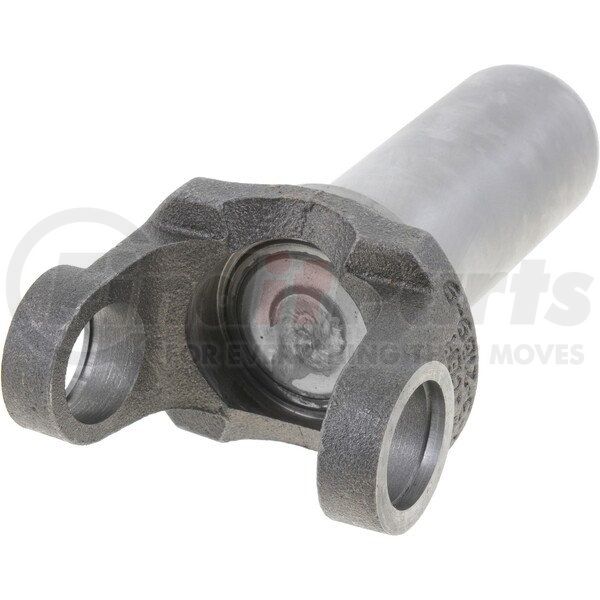

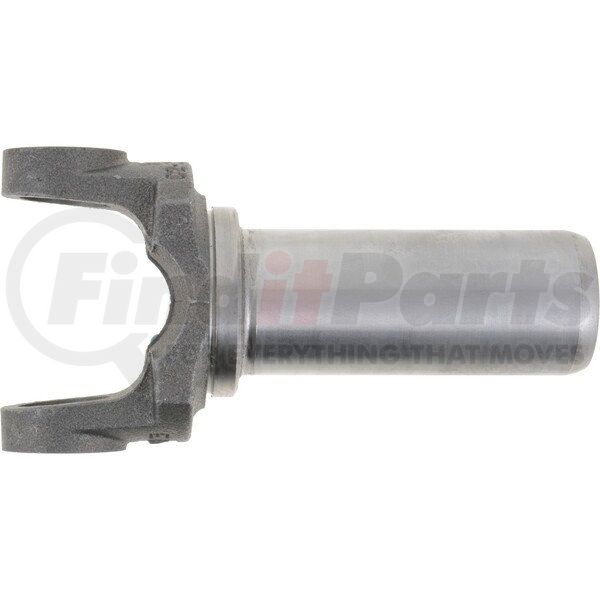

Name: Dana 2-3-15961X 1310 Series Drive Shaft Transmission Slip Yoke - Steel, 30/32 Spline, SR Style
SKU: 2315961x
Price: 676.99 USD
Availability: InStock

DANA part description

Series:	1310

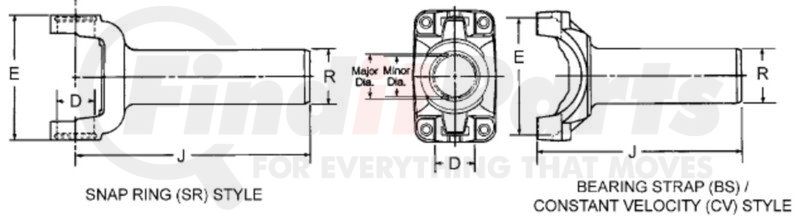

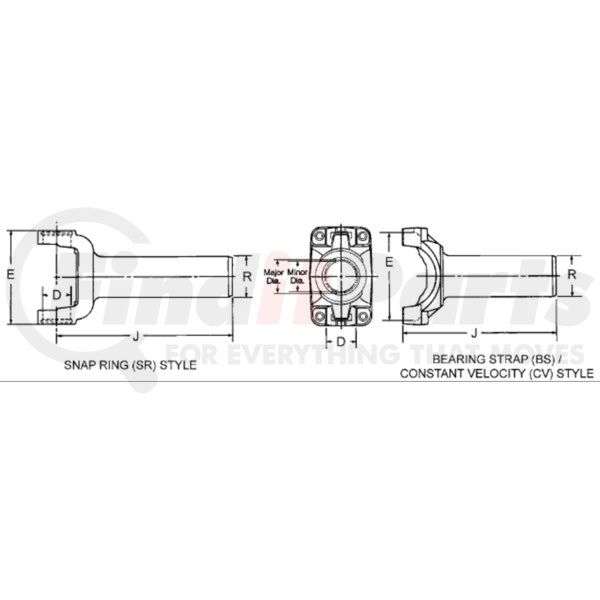

Outside Yoke Dimension (E):	3.466 in.
Bearing Cap Diameter (D):	1.062 in.
To End of Spline (J):	6.102 in.
Hub Diameter (R):	1.731 in.
Spline Outside Diameter (STD):	1.377 in.
No. of Splines:	30/32 I
Involute:	I
Style:	SR
Counter Bore Diameter:	1.387
Counter Bore Depth:	.394
Material:	Steel
Number of Splines Based On:	32
C-Line to Washer Face:	1.34

Product Attributes

Series	1310
Material	Steel
Style	SR
No. Of Splines	30/32 I
Bearing Cap Diameter (D) In.	1.062 IN
Outside Yoke Dimension (E) In.	3.466 IN
Spline O.D. (STD)	1.377 IN
To End Of Spline (J) In.	6.102 IN
C-Line to Washer Face	1.34 IN
Involute	I
Number of Splines Based On	32
Counter Bore Depth	.394 IN
Counter Bore Diameter	1.387 IN
Spline O.D. (MM)	35 MM
Hub Diameter (R) In.	1.731 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913239244
VMRS Code	024002038

Part Interchanges
