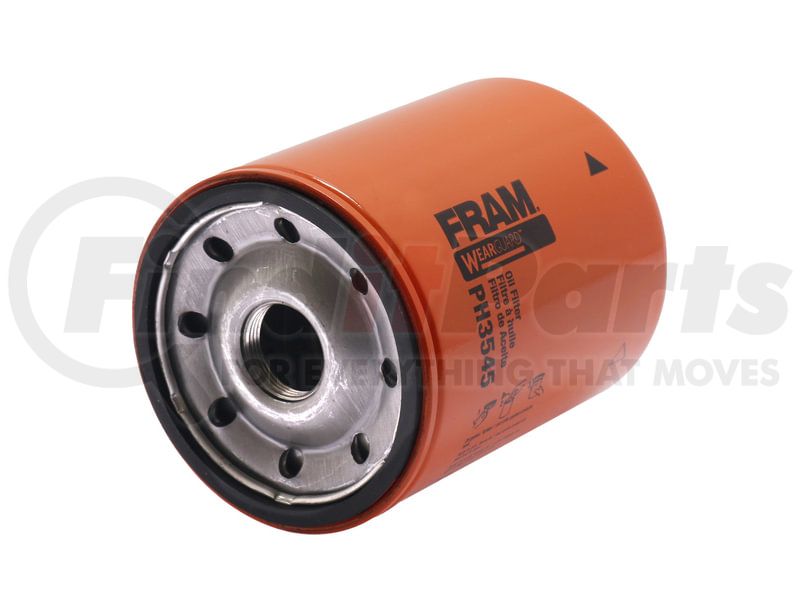

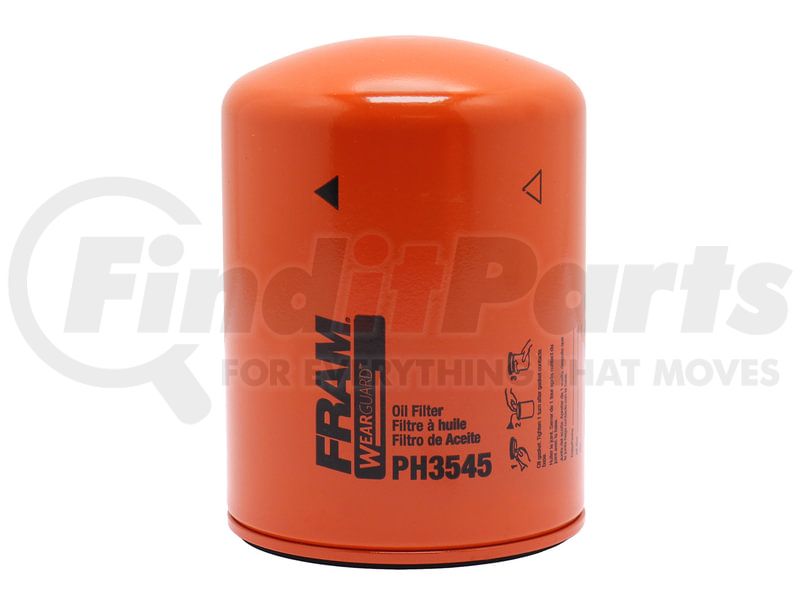

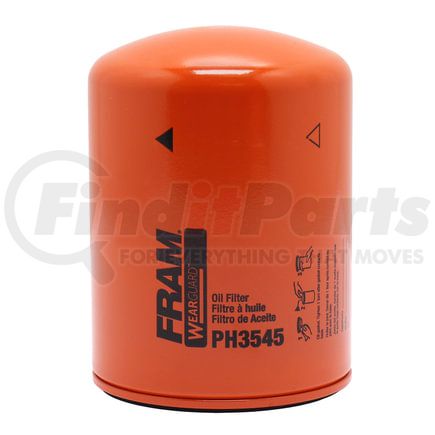

(888) 312-8812 Login SignupFRAM PH3545 Spin-on Oil Filter
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PH3545 Part Description
FRAM PH3545 Specifications
Product Attributes
| Height | 5.840 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.250 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 3.580 IN |
| Gasket Outside Diameter | 4.250 IN |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1 1/8-16 IN |
| New Or Remanufactured | New |
| Outside Diameter | 4.250 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100422132 |
| UNSPSC | 15121501 |
FRAM PH3545 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF1056, PF2203 |
| ACDelco | PF1056, PF1575, PF2203 |
| BALDWIN | B605, B75 |
| BIG A | 92351, 92376, 92798 |
| Baldwin | BT470 |
| CARQUEST | 85351, 85376 |
| Carquest | 85798 |
| Caterpillar | 1R-0714, 9N-6007 |
| Donaldson | LFP556007, P550243, P550420, P551263, P551266, P556007, P559128 |
| Fleetguard | HF7569, LF3328, LF3547, LF3587, LF3588, LF3593, LF3651, MK13052 |
| Fleetrite | LFR-83328 |
| General Motors | 15511626, 25011902, 94037791, 94392475 |
| Hastings | B605, HF928, LF538 |
| Isuzu | 1-13200-487-0, 1-13200-487-1, 1-13200-487-2, 1-13240-122-0, 1-3200-487, 1-3200-487-0, 8-94392-475-0 |
| Kobelco | 2451U333-1 |
| Kralinator | 85460-A |
| LUBER-FINER | LFP5772, LFP6007 |
| Link-Belt | 3H1748 |
| Mann-Filter | W1150/2 |
| Mitsubishi | ME034878, ME088519 |
| Motorcraft | FL-807 |
| NAPA | 1351 |
| Nissan | 15201-Z9001, 15201-Z9007, FL201-Z9007, FL201-Z9010 |
| Purolator | L30068 |
| Sierra | 18-7927, L45318 |
| Valvoline | VO-163 |
| Volvo | 422994, 422994-4, 847741, 847741-6 |
| WIX FILTERS | 51798 |
| Wix | 51351, 51376, 51798 |
FRAM PH3545 Fits Vehicles
- GMC C8500 Topkick (2005-2009)
- Isuzu HXR (2006)
- Chevrolet T8500 (2004-2009)
- Isuzu LT (1985-1986)
- Chevrolet W6500 Tiltmaster (1987-1996)
- GMC W6500 Forward (1987-1996)
- GMC W7500 Forward (1984-1996)
- Chevrolet W7500 Tiltmaster (1984-1996)
- Ford L8000 (1981-1988)
- Ford LNT8000 (1981-1989)
- Ford LTS8000 (1981-1989)
- Ford LS8000 (1987-1989)
- Ford LT8000 (1981-1988)
- Ford LNT9000 (1981)
- Isuzu MR (1985)
- Isuzu HVR (2005-2008)
- Isuzu HTR (2005-2008)
- Isuzu EVR (1987-1993)
- Isuzu NRR (1988-1994)
- Isuzu FTR (1988-2011)
- Isuzu FSR (1987-1998)
- Isuzu FRR (1995-1998, 2000-2004)
- Isuzu FXR (2004-2011)
- Isuzu FVR (1988-1992, 1994-2011)
- Ford F8000 (1983-1987)
- Ford LN7000 (1981-1987)
- Ford B7000 (1983-1987)
- Ford LN8000 (1981-1989)
- Ford F7000 (1983-1987)
- Chevrolet T6500 (1999-2002, 2004-2009)
- Ford F700 (1988-1989)
- Ford C8000 (1980-1990)
- GMC T7500 (1999-2002, 2004-2009)
- Chevrolet T7500 (1999-2002, 2004-2009)
- GMC T6500 (1999-2002, 2004-2009)
- GMC W5500 Forward (1988-1998, 2000-2004)
- Chevrolet W5500 Tiltmaster (1988-1998, 2000-2004)
- Mitsubishi Fuso FK (1986-1987)
- Chevrolet C6500 Kodiak (2003-2009)
- GMC C6500 Topkick (2003-2009)
- GMC C7500 Topkick (2003-2009)
- Mitsubishi Fuso FH (1988-1992)
- Chevrolet C7500 Kodiak (2003-2009)
- Chevrolet C70 (1980-1990)
