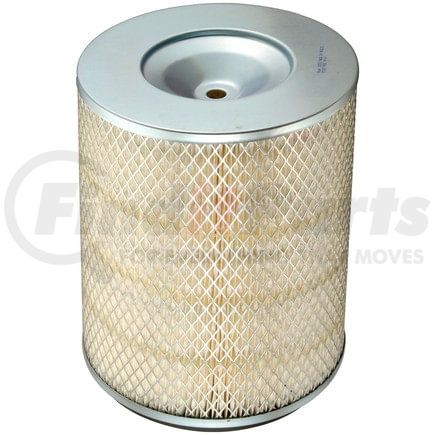

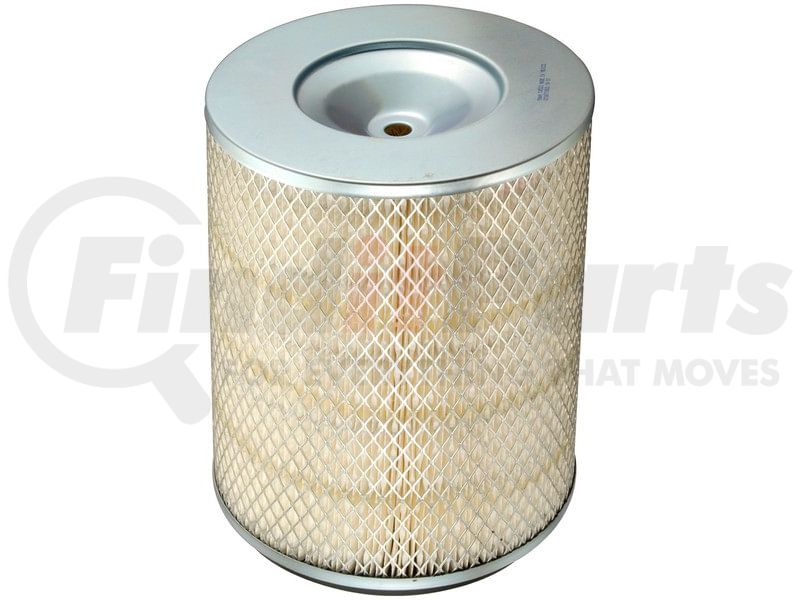

(888) 312-8812 Login SignupFRAM CA523 Metal End Air Filter
$78.72
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM CA523 Part Description
FRAM CA523 Specifications
Product Attributes
| Reusable | No |
| Filter Media Material | Cellulose |
| Height | 13.500 IN |
| Shape | Round |
| Grade Type | Regular |
| Gasket Or Seal Included | Yes |
| Bottom Inside Diameter | 4.844 IN |
| Top Inside Diameter | 0.656 IN |
| Flexible or Rigid | Rigid |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outer Diameter Bottom | 9.203 in |
| Outer Diameter Top | 9.203 in |
| Replaceable Filter | Yes |
| Universal Or Specific Fit | Specific |
| Washable | No |
| Washer Inside Diameter | 0.563 IN |
| Washer Outside Diameter | 1.188 IN |
| Washer Thickness | 0.125 IN |
| Outside Diameter Top | 9.203 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421310000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100523129 |
| UNSPSC | 40161505 |
FRAM CA523 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | A408C |
| ACDelco | A408C, A408CF |
| AG CHEM EQUIPMENT | 72-123-7 |
| AG Chem | 72-123-7 |
| AIR REFINER | 10508, ARM-10-6587, ARM-18-1034 |
| ALLIS-CHALMERS | 06603609, 0684733, 2083771, 3042922 |
| Allis Chalmers | 2083771, 3042922, 30429224, 3050258, 30502587, 659095, 6590954, 660360, 6603609, 662607, 6626071, 684733, 6847339 |
| BALDWIN | PA1884, PA1884XP |
| Baldwin | LL1884 |
| Big A | 93119 |
| Burgess | DFE09003 |
| Carquest | 87119 |
| Case | 9026, S231996 |
| Caterpillar | 3I-0787, 946353 |
| Champ | AF1418 |
| Coopers | AZA309, AZA309T |
| Crosland | 944 |
| Cummins | 204631, 299418, 650152, 706425 |
| Diamond Reo | 3107368H |
| Donaldson | EAF5034, FHG120012, FHG120017, FHG120037, FHG120038, FHG120062, FHG120065, FHG120115, P106587, P110556, P116501, P122329, P123827, P130765, P132604, P143316, P148380, P148821, P152659, P153352, P181034, P182034, P185034, P811203, XLP182034 |
| Dorman | L551E/4 |
| Eaton | 6953104 |
| Fiat | 1909136 |
| Fleetguard | AF418, AF418M, AF4816 |
| Fleetlife | FA-10-6587 |
| Fleetrite | AFR-8418, AFR-8418M |
| Galion | D99737, H99737 |
| Gardner Denver | 2010260, 2010508 |
| General Motors | 6486931, 8994732 |
| Gonher | GA360, GA360M |
| Grove | 7437100135, 9304100035, 9437100135 |
| Guardian | G10-6587 |
| Hastings | AF217, AF2220 |
| Heavy Duty Air | A-6587, HDA-6587 |
| Huber-warco | 104905 |
| International Harvester IHC | 465249C1, 529821R1, 529821R2 |
| JCB | 32/201602 |
| John Deere | AR45943, AR46003 |
| Kato | 119-60502000 |
| Kobelco | 2451U124-3A |
| Kralinator | LA385 |
| LUBER-FINER | LAF6587, LAF6587MXM |
| Link-Belt | 3U0165 |
| Lorain | P-55596, PO-55591 |
| MANN-HUMMEL FILTERS | C24719 |
| Mann-Filter | C24719, C24745 |
| Massey Ferguson | 1040830-M1, 1040830-M91, 1090109-M91 |
| Motorcraft | FA-188, FA-565 |
| NAPA | 2119 |
| Nelson | 106587, 70070N |
| Nu-Tech | N1144, S1144 |
| Purflux | A543 |
| Purolator | A52220 |
| Samsung | 7068-4733, 9912-45700 |
| Trojan | 6953104 |
| Tru-Air | T-10-6587 |
| United Air Cleaner | 250DX250 |
| Volvo | 9912-45700, 993688 |
| WGB | SA-263 |
| WIX FILTERS | WIX FILTERS, 42119NP, 42119 |
| White | 02-7074164, 02-7074458, 30-2012251, 3107368, 3107368H |
| Wix | 42119, 42542 |
