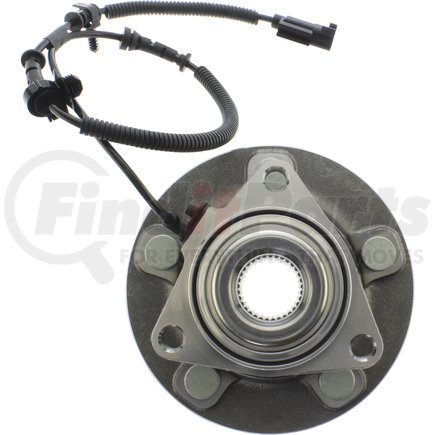

Centric 402.67022 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$19599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Mounting Hole Qty [cntrc] | 3 |
| Off-set [cntrc] In | 46.760 |
| Mouting Thread Size [cntrc] Mm | 14.000 |
| Off-set [cntrc] Mm | 1.841 |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Product Grade [cntrc] | Premium |
| Inner Mount Pilot [cntrc] Mm | 89.990 |
| Inner Mount Pilot [cntrc] In | 3.543 |
| Thread Pitch To Wheel Mounting [cntrc] In | 18.000 |
| Notes [cntrc] | ABS Ring = 55 teeth, Radial Design, Same hub as 402.67007 but with different ABS Wire ,& End Plug with 2 Large Connector Pins |
| Spline Quantity | 33 |
| Wheel Stud Size | 0.563 IN |
| Wheel Pilot Diameter | 77.720 MM |
| Wheel Pilot Diameter | 3.060 IN |
| Brake Pilot Diameter | 78.360 MM |
| Brake Pilot Diameter | 3.085 IN |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Flange Diameter | 7.200 IN |
| Flange Diameter | 182.880 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | KR |
| UPC | 805890788720 |
Part Interchanges
Fits Vehicles
- Dodge Ram 1500 (2006-2008)
