BILSTEIN 41314326 Part Description
Manufacturer
Product Description

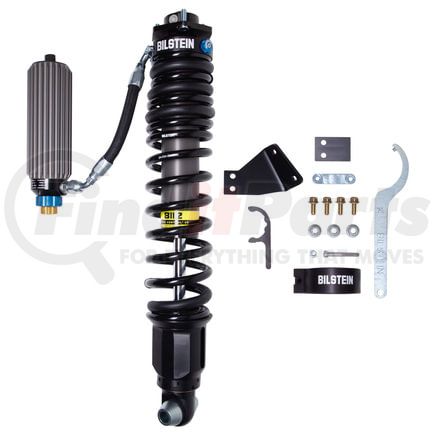

B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module
Application Summary
Ford Bronco 2024-2021
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
FORD BRONCO;'21+; RL; B8 8112 DSA+
BILSTEIN 41314326 Specifications
Product Attributes
| Extended Length (mm) | 674.6 |
| Body Diameter (id) | 60mm |
| Body Design | Smooth Body (Coilover) |
| Finish | Dampers: EVO Grey/Springs: Black |
| Body Material | Aluminum |
| Lower Mount Type | Eye 25.4mm with Heim Spacers |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Collapsed Length (in) | 18.40 |
| Prop 65 (Y/N) | Y |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Internal Design | Monotube |
| Collapsed Length (mm) | 467.1 |
| Segment | Light Truck |
| Boot Included | No |
| Title | Bilstein Shock Absorbers |
| RESERVOIR | Yes - Finned Aluminum |
| Extended Length (in) | 26.60 |
| Parttype | Shocks / Struts |
| Series | B8 8112 Black Hawk |
| Rear Main Spring Rate (lbs/in) | 288 |
| Piston Diameter | 60mm |
| Shaft Diameter (MM) | 22.0 |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860936154 |
BILSTEIN 41314326 Cross References
| Brand | Part Number |
|---|---|
| FOX Offroad Shocks | 883-06-213 |
| ICON Vehicle Dynamics | 48710C |
| King Shocks | 25001-393A |
BILSTEIN 41314326 Fits Vehicles
- Ford Bronco (2021-2025)
BILSTEIN 41314326 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 41314326 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
