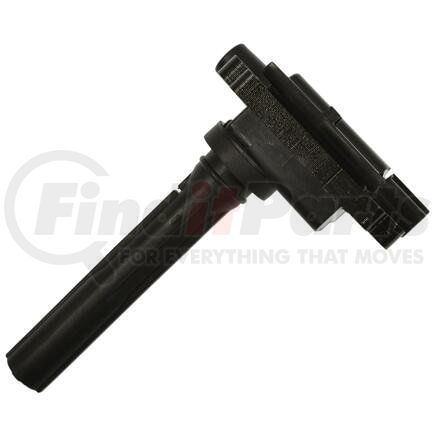

Name: Standard Ignition UF-268 Coil on Plug Coil
SKU: uf268
Price: 66.49 USD
Availability: InStock

STANDARD IGNITION part description

Product Description

Coil on Plug Coil

Features & Benefits

Our Coil-on-Plug assemblies are manufactured from the finest components for optimum performance and a long service life under all operating conditions
Neodymium in the core creates the strongest magnetic field and produces max high voltage output at all speeds
High dielectric epoxy is injected into the case and pulled into a vacuum to eliminate air pockets and prevent moisture intrusion or thermal breakdown
Our reinforced bobbins prevent voltage flashover for an extended service life
As a tier I manufacturer with engineering and design capabilities second to none, our ignition coils are made to the highest quality standards
As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
Advanced bobbin technology, highly specialized silicone magnetic steel core, and optimized winding all provide an accurate high energy output to restore engine performance
Engineered and tested to meet OE spark energy output, impedance, and durability in all operating conditions.
Engineered specifically for Chevrolet and Suzuki vehicles
High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or internal energy loss
High-temp boot prevents high-voltage leaks, while stainless-steel spring with internal ferrite noise suppressor prevents radiofrequency interference (RFI)
Our ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown

Product Attributes

Voltage	12
Color	Black
Mounting Position	Direct Ignition
Ignition Type	Distributorless
Coil Type	Electronic
Terminal Type	Blade
Mounting Hardware Included	No
Connector Quantity	1
Connector Shape	Rectangular
Mount Type	Bolt On
Terminal Quantity	3
Connector Gender	Female
Terminal Gender	Male
Mounting Bracket Included	Yes

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (HTS)	8511300080
Warranty Distance	36000
Warranty Distance UOM	MI
Warranty Time	36
Warranty Time UOM	MO
UPC	00091769494322
