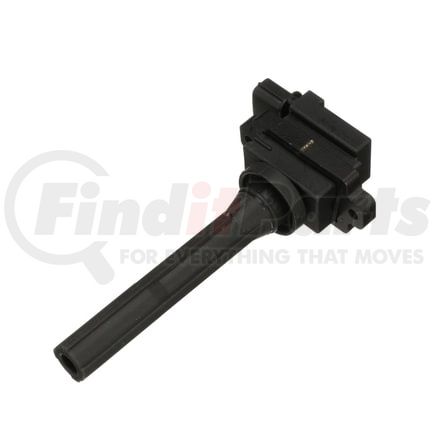

Name: Standard Ignition UF-237 Coil on Plug Coil
SKU: uf237
Price: 45.49 USD
Availability: InStock

STANDARD IGNITION part description

Product Description

Coil on Plug Coil

Features & Benefits

100% pure copper windings in primary and secondary bobbins improve durability and provide higher resistance to internal shorts and dielectric breakdown
Electronic ignition module profile and feedback signal ensures proper OE fit, form, and function
Thermoplastic housing withstands heat stress for enhanced durability
Internal core made from grain-oriented electrical steel limits loss factor within magnetic circuit to reduce heat that may reduce coil endurance
External core made from oriented silicon steel ensures durability and longevity
Stainless steel spring resists corrosion
Tin-plated brass terminals improve electrical contact and protect against corrosion
High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or thermal breakdown
Silicone rubber boot withstands extreme heat to ensure superior insulation
Advanced bobbin technology, highly specialized silicone magnetic steel core, and optimized winding all provide an accurate high energy output to restore engine performance
Engineered and tested to meet OE spark energy output, impedance, and durability in all operating conditions.
Engineered specifically for Chevrolet and Suzuki vehicles
High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or internal energy loss
High-temp boot prevents high-voltage leaks, while stainless-steel spring with internal ferrite noise suppressor prevents radiofrequency interference (RFI)
Manufactured in Poland
Our ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown

Product Attributes

Voltage	12
Color	Black
Ignition Type	Distributorless
Coil Type	Electronic
Terminal Type	Blade
Mounting Hardware Included	Yes
Connector Quantity	1
Connector Type	Plug In
Mount Type	Bolt On
Terminal Quantity	3
Connector Gender	Female
Terminal Gender	Male
Mounting Bracket Included	Yes
Coil Included	Yes
Connector Shape	Rectangular, Oval
Grease Pack	No
Instructions Included	No

Additional Information

Country of Origin (Primary)	PL
Harmonized Tariff Code (HTS)	8511300080
Warranty Distance	36000
Warranty Distance UOM	MI
Warranty Time	36
Warranty Time UOM	MO
UPC	00091769384432
