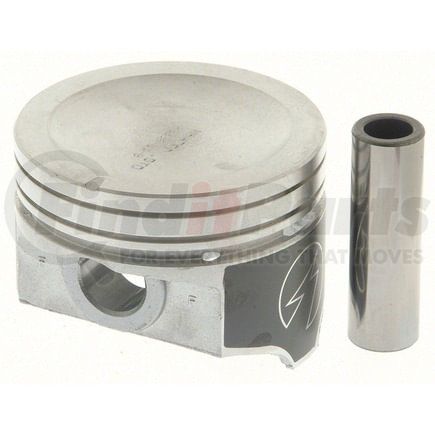

SEALED POWER 392AP 30 - Sealed Power 392AP 30 Engine Piston Set
- Part Number
- 392AP 30
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 392AP 30 Engine Piston Set
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
Oversized | Yes |
Top Compression Ring Thickness | 0.0781 IN |
Second Compression Ring Thickness | 0.0781 IN |
Oil Ring Thickness | 0.1875 IN |
Piston Pin Outside Diameter | 0.9999 IN |
Assembly Lubricant Included | No |
Bore Diameter | 4.3125 IN |
Piston Material | Cast Aluminum |
9607 | 1.955 IN |
Head Illustration | 28 |
Head Type | Recessed Head .230 deep x 3.610 dia. |
Minimum Clearance | 0.0015 @ 3.100 from top of head |
Oversized Amount | 0.030 IN |
Part Description | Engine Piston |
Pin Offset (Inch) | 0.06 |
Pin Offset (MM) | 1.524 |
Additional Information
Country of Origin (Primary) | IN |
Canadian Harmonizing Tariff Code | 8409910010 |
Harmonized Tariff Code (Schedule B) | 8409915085 |
Harmonized Tariff Code (HTS) | 8409915085 |
UPC | 00724956349401 |
Part Interchanges
- 392AP 30
- Badger P528-030
- TRW Steering and Suspension Parts L3080F30
- Clevite 9-1730.030
- Clevite TC1848.030
- 1730.030
- Ertel 972P30
- Dana Commercial Vehicle Service Parts TC1848.030
- Dana Commercial Vehicle Service Parts 224-1848.030
- Z9417 030
- Badger P528030
- Silvolite 1730030
- Clevite 91730030
- Clevite TC1848030
- Zollner Z9417030
- Dana Commercial Vehicle Service Parts 2241848030
- Dana Commercial Vehicle Service Parts TC1848030
Fits Vehicles
- Buick Wildcat (1970)
- Buick Skylark (1970-1971)
- Buick Regal (1973-1974)
- Buick GS 455 (1970-1972)
- Buick Century (1973-1974)
- Buick Centurion (1971-1973)
- Buick Sportwagon (1970)
- Buick Riviera (1970-1976)
- Buick LeSabre (1970-1976)
- Buick Estate Wagon (1970-1976)
- Buick Electra (1970-1976)
