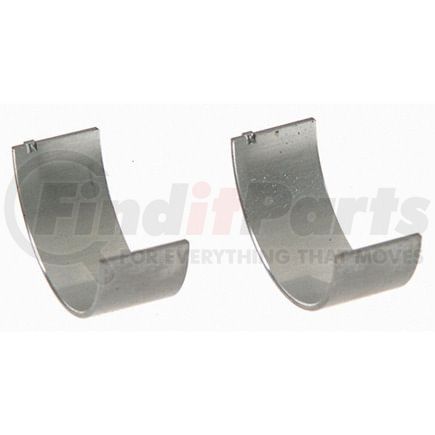

Name: Sealed Power 4185RA Sealed Power 4185RA Engine Connecting Rod Bearing
SKU: 4185ra
Price: 9.99 USD
Availability: InStock

SEALED POWER part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

Engine Connecting Rod Bearing

Features & Benefits

A-Series bi-metal aluminum alloy
Greater seizure resistance than tri-metal material
Dramatically reduces or eliminates bearing wear
Made with silicon to provide greater surface hardness
Silicon particles help polish crankshaft journal to further reduce wear during operation
Utilizes ISO & QS certified manufacturing

Product Attributes

Design Feature 1	Standard Size
Housing Bore Max (inch)	1.9766 IN
Housing Bore Max (mm)	50.2070 MM
Housing Bore Min (inch)	1.9761 IN
Housing Bore Min (mm)	50.1930 MM
Oil Clearance Max (inch)	0.0021 IN
Oil Clearance Max (mm)	0.0530 MM
Oil Clearance Min (inch)	0.0005 IN
Oil Clearance Min (mm)	0.0130 MM
Overall Length Max (inch)	0.8000 IN
Overall Length Max (mm)	20.3200 MM
Pair / Full / Half - Flange	P
Part Description	Engine Connecting Rod Bearing
Standard Shaft Max (inch)	1.8508 IN
Standard Shaft Max (mm)	47.0100 MM
Standard Shaft Min (inch)	1.8500 IN
Standard Shaft Min (mm)	46.9900 MM
Wall Thickness Max (inch)	0.0626 IN
Wall Thickness Max (mm)	1.5900 MM

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8483300022
Harmonized Tariff Code (Schedule B)	8483308090
Harmonized Tariff Code (HTS)	8483308090
UPC	00724956235247
