STANDARD IGNITION part description

Product Description

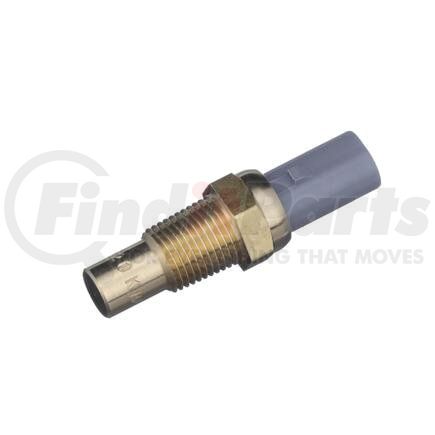

Temperature Sender - With Gauge

Features & Benefits

  • Robust design and high grade materials meet the stringent demands of today's service professional
  • In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
  • In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
  • The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
  • In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
  • As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product

Product Attributes

Attachment Method Screw-On
Color/Finish Gold, Gray
Connector Gender Female
Connector Quantity 1
Connector Shape Round
Connector Type Plug In
Finish Brass, Plastic
Terminal Gender Male
Terminal Quantity 1
Terminal Type Blade

Additional Information

Country of Origin (Primary) JP
Harmonized Tariff Code (HTS) 9025198085
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00091769190057

Part Interchanges

Fits Vehicles

  • Lexus GX470 (2003-2005)
  • Toyota T100 (1994-1998)
  • Toyota Tundra (2000-2005)
  • Toyota Tacoma (1995-2006)
  • Toyota Sequoia (2001-2005)
  • Toyota RAV4 (1996-1999)
  • Toyota Tercel (1994-1998)
  • Toyota Supra (1993-1998)
  • Toyota Solara (1999-2003)
  • Toyota Sienna (1998-2003)
  • Toyota Paseo (1995-1999)
  • Toyota Land Cruiser (1998-2006)
  • Lexus SC400 (1993-2000)
  • Lexus LS400 (1993-2000)
  • Toyota Corolla (1993-1997)
  • Lexus ES300 (1993-2001)
  • Toyota Celica (1994-1999)
  • Toyota Camry (1994-2003)
  • Toyota Avalon (1995-2004)
  • Toyota 4Runner (1995-2005)
  • Lexus LX470 (1998-2004)
  • Geo Prizm (1993-1997)
