(888) 312-8812 Login SignupA-1 CARDONE 42-397 Power Window Motor
Tap to view 2 more
$11649
+$11.49 core deposit
Total price w/ core: $127.98
5 Day Lead Time
Get it by Wednesday, Dec 24
A-1 CARDONE 42-397 Part Description
Manufacturer
Product Description

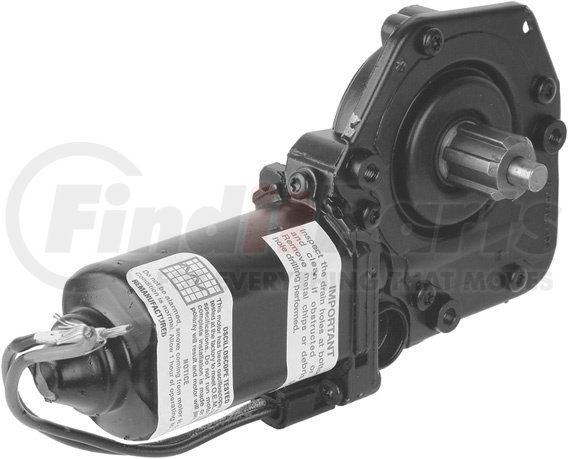

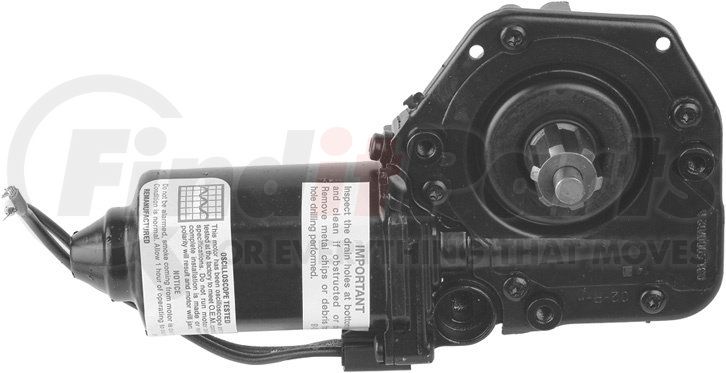

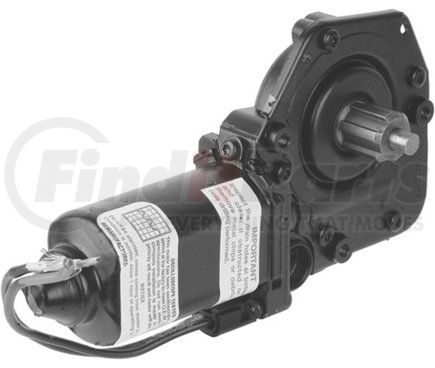

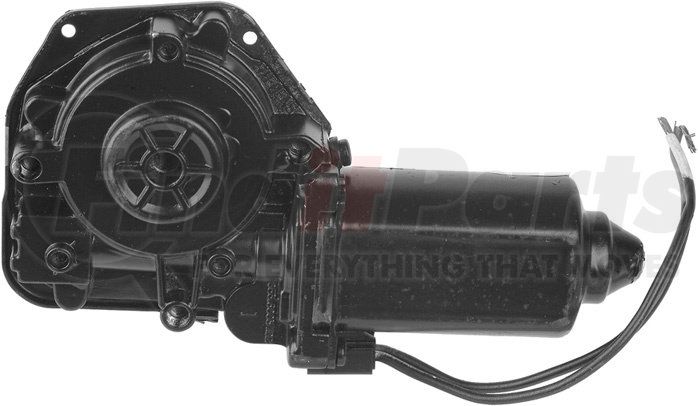

Power Window Motor
Application Summary
Ford E-150 2014-02, E-150 Club Wagon 2005-03, E-150 Econoline 2008-07 2002-96, E-150 Econoline Club Wagon 2002-96, E-250 2014-03, E-250 Econoline 2002-96, E-350 Club Wagon 2005-02, E-350 Econoline 2000-96, E-350 Econoline Club Wagon 2002-96, E-350 Super Duty 2019-99, E-450 Econoline Super Duty 2002-99, E-450 Super Duty 2018-03, E-550 Econoline Super Duty 2002, E-550 Super Duty 2003, Econoline 2006-99, Econoline Super Duty 1999-96, Econoline Van 2014-10, Econoline Wagon 2014-10
Features & Benefits
- Each motor is tested 100%. Testing includes loading the motor on a simulated window fixture to verify speed and strength of the motor.
- For motors which have an auto up / down feature, output signals and pulse counts are matched to the vehicle application and motors are shipped in the ‘full up position’.
- Every motor has its internal components inspected and gauged. Bushings are gauged and re-impregnated with lubricating oil, ball bearings are replaced with new and armatures are fully tested to ensure insulation.
- Internal gears are gauged, inspected and renewed for reuse or replaced if out of spec. Replacement gears are redesigned with a stronger, less brittle material than O.E. to prevent premature wear, striping and breakage.
- Motor magnets are 100% recharged guaranteeing efficiency and reliability.
- Every remanufactured motor is assembled with the precise amount of lubricant to ensure quiet operation and long life.
- Every remanufactured motor is fully compatible with the O.E. mounting and regulator.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Power Window Motor, Window Motor, Window Lift Motor
- Each unit is 100% computer tested at 3 points in the remanufacturing process for guaranteed performance.
- Every motor is assembled with the precise amount of lubricant to ensure quiet operation and long life.
- Improved over O.E. - Gears are redesigned with a stronger, less brittle material than O.E. to prevent premature wear, striping and breakage, thus extending the performance life.
- Motor magnets are 100% recharged for O.E. performance and reliability.
- New high-quality gaskets are used in every window lift unit to prevent water entry, thus eliminating failure modes related to water penetration.
A-1 CARDONE 42-397 Specifications
Product Attributes
| Package Contents | Window Lift Motor; Instruction Sheet; Kit |
| Product Condition | Remanufactured |
| Mounting Hole Quantity | 3 |
| Mounting Type | Through Hole |
| Gear Included | Yes |
| Window Motor Use Location | Front Right |
| Regulator Included | No |
| E-waste | Yes |
| Wire Quantity | 2 |
| FAQs | Why does my 2-wire window lift motor only run in one direction? |
| Features and Benefits | Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%. |
| Anti-Pinch Motor | No |
| Attachment Method | Bolt On |
| Bracket Included | No |
| Contains Electronic Components | No |
| Does it require SDS | No |
| Gear Supplied | Yes |
| Glass Type | Tinted |
| Hardwired Or Plug-In | Plug-In |
| Installation Instructions Included | Yes |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Mounting Hardware Included | No |
| Mounting Position | Front Right |
| Mounting Type | Through Hole |
| Number of Mounting Holes | 3 |
| Operation Type | Manual |
| Regulator Included | No |
| Terminal Quantity | 2 |
| Voltage (v) | 12 |
| Wire Or Terminal Quantity | 2 |
| Wiring Harness Included | Yes |
Additional Information
| Remanufactured Part | Y |
| Warranty Distance | 18000 |
| Warranty Distance UOM | DH |
| Warranty Special UOM | TX |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8501106060 |
| Harmonized Tariff Code (HTS) | 8501106060 |
| Canadian Harmonizing Tariff Code | 8501100022 |
| UPC | 00082617455855 |
A-1 CARDONE 42-397 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | 1C2Z1523200, 1C2Z1523200AA, F6UZ1523394AA, F7UZ1523200AA, F6UZ1523394AA , 1C2Z1523200AA , 1C2Z1523200 , F7UZ1523200AA |
A-1 CARDONE 42-397 Fits Vehicles
- Ford Econoline Wagon (2010-2014)
- Ford Econoline Van (2010-2014)
- Ford Econoline (1999-2006)
- Ford E-550 Super Duty (2003)
- Ford E-350 Super Duty (1999-2019)
- Ford E-550 Econoline Super Duty (2002)
- Ford E-450 Econoline Super Duty (1999-2002)
- Ford E-350 Club Wagon (2002-2005)
- Ford E-350 Econoline (1996-2000)
- Ford E-150 (2002-2014)
- Ford E-350 Econoline Club Wagon (1996-2002)
- Ford E-250 (2003-2014)
- Ford E-250 Econoline (1996-2002)
- Ford E-150 Club Wagon (2003-2005)
- Ford Econoline Super Duty (1996-1999)
- Ford E-150 Econoline (1996-2002, 2007-2008)
- Ford E-150 Econoline Club Wagon (1996-2002)
- Ford E-450 Super Duty (2003-2018)
A-1 CARDONE 42-397 Manufacturer Information
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
