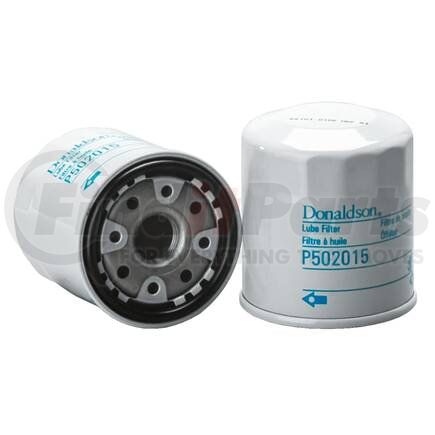

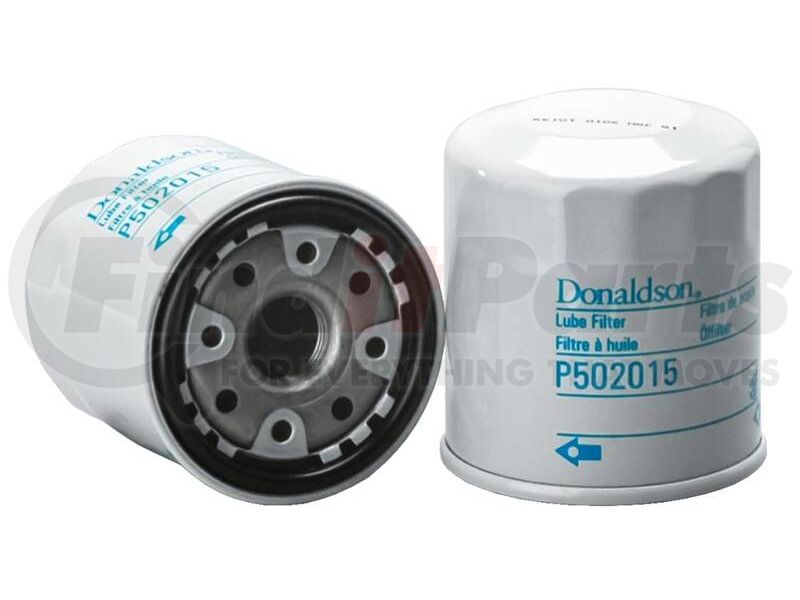

(888) 312-8812 Login SignupDONALDSON P502015 Engine Oil Filter - 2.91 in., Full-Flow Type, Spin-On Style, Cellulose Media Type, with Bypass Valve
MSRP: $13.92
$1249
Save $1.43
Limited availability at this price!
In Stock
Get as soon as Tuesday, Sep 22
DONALDSON P502015 Part Description
Manufacturer
Product Description
LUBE FILTER, SPIN-ON FULL FLOW
Application Summary
TOYOTA 9091503001
Features & Benefits
- Fresh media gives new engine oil clean contaminant-holding capacity
- Restores filtration capacity during the scheduled engine-oil service interval
- Cold-start protection allows oil flow when thick lubricant raises restriction
- Protects bearings and close-clearance surfaces from abrasive contamination
Donaldson Engine Oil Filter
The Donaldson Engine Oil Filter cleans the full oil supply while giving the lubrication system a safeguard against excessive filter restriction. Cellulose media handles normal contaminant removal, while the internal bypass valve becomes relevant when cold oil or a loaded element raises pressure across the filter. If that restriction climbs too far, the alternate path in the Donaldson P502015 keeps oil moving instead of making flow depend entirely on the media. Your truck gets both routine debris control and a built-in response to temporary high-restriction conditions.
DONALDSON P502015 Specifications
Product Attributes
| Anti-drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting Hr | 1 BAR |
| Bypass Valve Setting LR | 0.8 BAR |
| Collapse Burst | 6.9 BAR |
| Efficiency 50% | 20 MICRON |
| Efficiency Test Std | JIS D 1611 |
| Gasket Id | 2.19 IN |
| Gasket Od | 2.49 IN |
| Length | 2.91 IN |
| Media Type | Cellulose |
| Outer Diameter | 2.56 IN |
| Primary Application | TOYOTA 9091503001 |
| Style | Spin-On |
| Thread Size | 3/4/16 |
| Type | Full-Flow |
Additional Information
| Country of Origin (Primary) | CO |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00742330109571 |
DONALDSON P502015 Cross References
| Brand | Part Number |
|---|---|
| A P PARTS | AP3568, LK3568 |
| AC DELCO | 88905889, PF1219, PF1233, PF54, SD3, X18, X20, X72 |
| AGCO | 77201898 |
| ALCO | SP1008, SP925, SP926, SP991 |
| ALCOA MARINE | TO137 |
| BALDWIN | B33 |
| EXXON/MOBIL OIL | M1103, M1103A |
| FLEETGUARD | LF3614 |
| FRAM | PH4967, M1-103A, M1-103, XG4967, TG4967, DL4967 |
| LUBER-FINER | PH2840 |
| MAHLE | OC 25 OF, OC 84, OC 78, OC 340, OC 25 |
| MANN-HUMMEL FILTERS | L14476, W683 |
| MOBIL OIL | M1103, M1103A |
| N/A | PO1394, PO258, 155A, 157A, 384A, LF155, LF384, LF400, LF410, P157, P400, O24, O25, TFC521B, TFC525, TFC525B, TFC519, TFC519B, TFC521, DG4967, PH2951A, PH3568, PH4478, TG4967, XG4967, PF2874, L33, L210A, L24R, 1150101800, 1501000, FCO258, FCO201, L10183, L14476, L22821, OC95, PC20, PC201, PC26, PC321, PER183, PER275, PER2821A, PER4476, PL14476, W27320, W27331, W27348, W27375, W27389, W27404, 51366, 51394, 51395, 51625, 551394, 51394XP, 92366, 92395, 92625, 92288, 2224523, B131, B7286, B33, PH2840, SO2840, PH2821A, 85395, 85288, 85366, 85394, 85625, D490652, LF3495, 1150101220, 160971069, 490652001, 490652062, 490652071, 490652074, 490652078, 490657010, ET15499, ABH966, LFR83614, 820314, 41394, 1625, 21394, 1366, 1394, 1395, 1016467, 88905889, PF1219, PF1233, PF54, SD3, X18, X20, X72, 359771, 2I8660, 070185B, 070185D, 070185E, 70185, 5009088, 81SM6714A2A, 9576P550534, EFL89, FONN6714BA, SBA140516130, OC18090, OC18140, SC110, SFO1001, SKC1109, T1636, YC110, 4100P0624, J1312010, KC110, TO137, VO40, W6880, 05710631, 5710631, 303662, C1107, C1109, C11091, C11095, C12021, C2204, C22041, C3001, C110, WGH6158, WGL3338, WGL9179, 180005593, 20775001, GF209, SFO3171, SFO7103, C138, FMS2017, FMS2167, W681, W7120, W71219, W7135, ML1009, 77201898, H90W02, H90W04, H97W07, 11421276850, AM101054, AM105172, AM105555, AM107423, AT1220338, HE1220338, Z141520801B01, OP572, 103959, OC216, OC89, 9350605, G80, M40, M59, M64, A46158, A46293, C122, 035115591, 35115591, ME122073702, GP3816, CF410, L11091, PZ102, PZ26, LER28, SL14476, V183, QS2951, QS3816, QS46, QS4967, LF410F, EAO09, SDF10, CF410AP, S39, S50, SH525, MO4967, PO4476, PO4967, C170, 114212580390, WPH2840, 208203, 154, O004, O317, OF106, OF107, OF130, OF136, P2028, 451103050, 451102002, 986452017, 451103043, 0451102002, 0451103043, 0451103050, 0986452017, 72107, 72130, 72166, 986452028, 986452917, 986452928, EFL163, EFL168, EFL391, FL836, 2055, Z121, Z25, Z525, Z90, Z963, AZL005, AZL027, Z1038, 35595, 4310105, 78641C1, LK3568, LK3840, 4434791, 4469396, 4469397, 4469398, 4469399, 4469400, 5939832, T1903900216, LS155, LS504, LS711, LS731, LS743, OF50, Z191, Z386, F0PH2840, CA117, CA127, 1651073002, 1651073012, 1651073013, S4967, STP2840, S02821, S0966, 1083842, NN10684, 400064, 2486580100, PE811, 137K, 722K, 723K, NO244, TO134, LO425K, 2077, 2079, 349, 366, 691, 194108, FO1036, 1150101780, J131205, T1632, 1150101250, 1150101291, 11501016020, 1150101610, 1150101860, 1150102030, 1501016020, 9091503001, 9091503004, T501, T3142, C121, PF2816, PF2821, PF53, C106, 20155373, 4TP119, PH2821, 43594, 721014983, 6513601, 833438, 611990, 0982202003, 1150101670, 1560013051, 1560016020, 1560101010, 1560113010, 1560113011, 1560187104, 1560187204, 8922002005, 892202005, 9008091034, 9008091045, 9008091058, 9091510001, 9091510003, 90915TA001, 90915VZZA2, 90915YZZA2, 90915YZZA5, 90915YZZC3, 90915YZZE1, 90915YZZF2, 90915YZZJ1, 982202003, ADT32109E, ADT32110E, C012000013, C01200D013, 3000059, LT4FILTER, 621324000200, 62132400020, E719532430, 05731725L1000, AW75, AW93, FO318, OC25, OC74, AW3, AW106, AW118, AW132, AW14, AW29, AW40, AW59, 554487, 29134122, 1220737, 122073702, 122073703, 4174, OK75, OE28, 092326340, 2313100, 2316900, 2326300, 2326340, 2327000, 92326340, OC534, 11421258039, 11421267597, 11421278059, 11429055001, 11429061197, 1250534, SPC110, 1560187103000, 1560187107, 1560187201000, 1560187203, 1560187205000, S2327R, S3263R, S3430R, FT4888, 107020, GFE117, GFE139, GFE148, GFE164, GFE246, GFE50, 1163420, MH374, DK51, DK92, 346, 966, L183, L966, 45206, D10, TP26, FE308, FB5306, FB5309, R343, FB2063, MOF4967, TF2951, TF346, CN2951, 61394, 650352, 7965051, C4476, OF1, U111589, U112038, DT195, L111224, L111244, L111830, L111899, L112216, U111570, K33 |
| PREMIUM GUARD | PG4476 |
| PUROLATOR | TL14476, TL14476BP, L14476, PBL14476, PL14476 |
| WIX FILTERS | WIX FILTERS, 51394, 51394XP |
DONALDSON P502015 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON P502015 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
