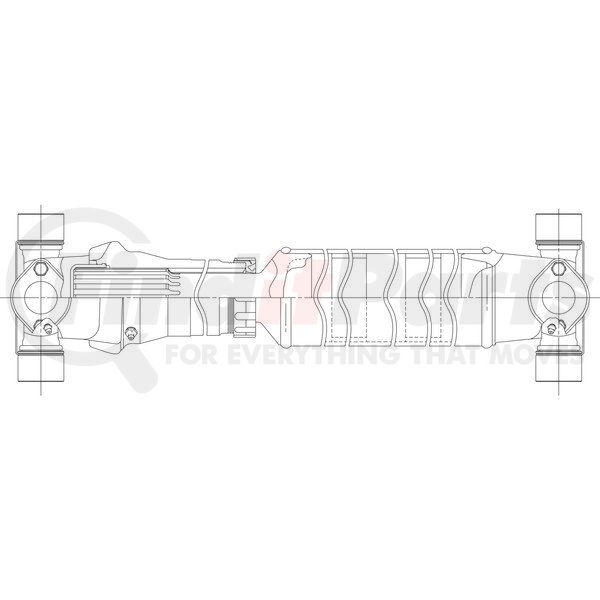

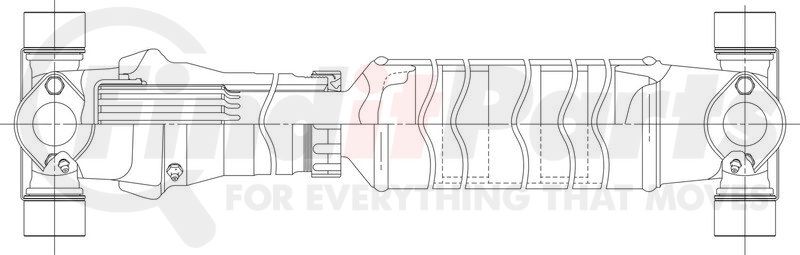

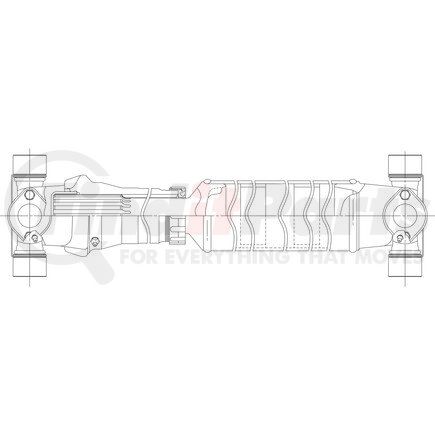

Dana 906354-0807 - DRIVE SHAFT
$1,26749
92 day lead time
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1710 |
| Tube Size (MM) | 103.9 x 4.57 |
| Tube Size (IN) | 4.09 x .180 |
| Slip (MM) | 133.4000 |
| Slip (IN) | 5.2520 |
| Length End To End Collapse(MM) | 615.9563 |
| Length End To End Collapse(IN) | 24.2502 |
| Tube Length (MM) | 208.7563 |
| Tube Length (IN) | 8.2188 |
| Material | Steel |
| Phased - Degrees | N |
| VMRS | 024000000 |
| Weight | 62.92 LB |
| Country of Origin | United States |
Features & Benefits
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Product Attributes
| Series | 1710 |
| Material | Steel |
| Tube Length (In) | 8.2188 IN |
| Tube Length (Mm) | 208.7563 MM |
| Tube Size (in) | 4.09 x .180 IN |
| Tube Size (mm) | 103.9 x 4.57 mm |
| Shaft Material | Steel |
| Max Slip (IN) | 5.2520 |
| Max Slip (MM) | 133.4000 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913592288 |
| VMRS Code | 024000000 |
Part Interchanges
- Daimler Truck North America SP 906354 0807
- Dana Commercial Vehicle Service Parts 906354-0807R
- Dana Commercial Vehicle Service Parts K211-234-0209
- Volvo SP 9063540807
- Navistar DS9063540807
- Paccar Parts 9063540807
- Paccar Parts 906354-0807
- Paccar Parts 906354-24-1/4
- Paccar Parts 9063542414
- Paccar Parts K2111232425
- Paccar Parts K211-123-2425
- Paccar Parts K2112340209
- Paccar Parts K211-234-0209
- Freightliner SP 906354 0807
