ELECTRONIC SPECIALTIES part description

Features and Benefits

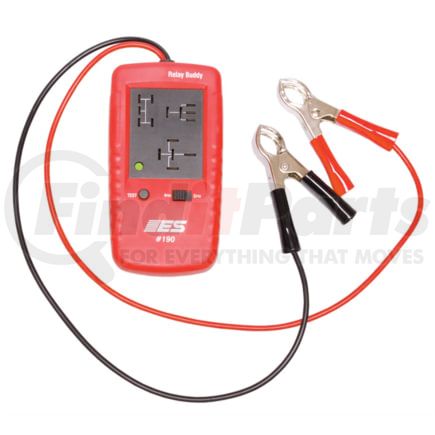

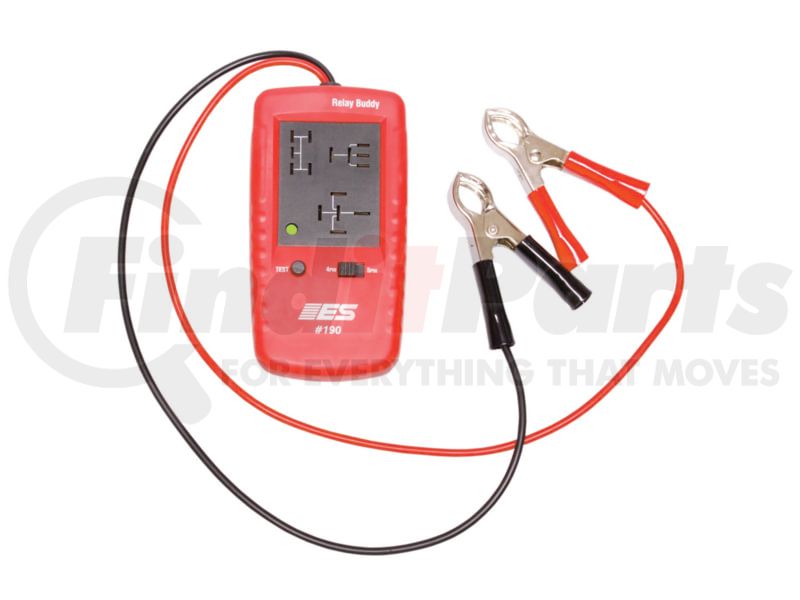

  • Relay Buddy is a quick go/no-go tester for the most common automotive relays
  • It provides you with an indication of the general health and functioning of the relay switch contacts and coil
  • Relay Buddy will check the control side of the relay by applying a signal to the relay coil while it checks for proper functioning of the relay contacts
  • Relay Buddy operates the relay several times during each test session as it watches for consistency in every cycle
  • Relay Buddy will fail the relay and light the RED LED if any one of the cycles proves unsuccessful during the test session
  • Settable to 4 and 5 pin relay
  • Switch contact are loaded to detect excessive resistance
  • Uses vehicle 12V battery for power
  • Green Light if relay is good - Red Light if relay is bad

Since 1967, Electronic Specialties, Inc.® has been designing, engineering, and manufacturing high-quality test instruments for automotive, marine, HVAC, small engine, and industrial applications. Its innovative and time-saving products have already won various awards and patents, such as the Top 20 Tools in 2015 for its Starter Buddy, a tool used primarily in testing the health of the vehicle’s entire electrical starting/cranking circuit. Other award-winning products from this brand include the Max Fuse Buddy, Fuse Buddy Pro Test Kit, Low Current Probe/DMM, Load Pro, Relay Buddy, Short Buddy® Audible Trouble Shooter, and True RMS Low Current Clamp Meter. Electronic Specialties’ headquarters is located in Genoa City, Wisconsin.
