(888) 312-8812 Login SignupMOOG 563 MOOG 563 Greaseable Premium Universal Joint
Tap to view 1 more
$16849
Limited availability at this price!
In Stock
Get it by Thursday, Jan 29
MOOG 563 Part Description
Manufacturer
Product Description

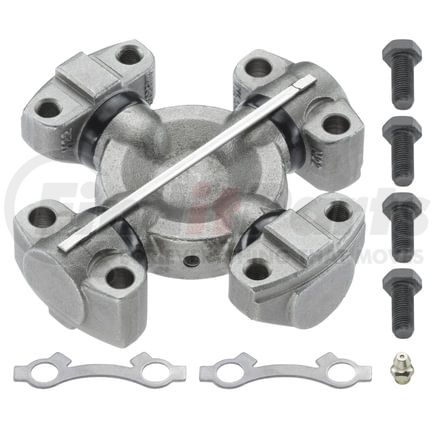

Greaseable Premium Universal Joint
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
Engineered for optimal performance, the National® taper bearing cup delivers long-lasting durability.
National® Oil Seals & Bearings offer a full line of premium oil seals and bearings.
- Premium bearing design matches OEM specifications
- Precision manufactured using premium-grade steel for outstanding durability and performance
- Crowned raceways and rollers to ensure even load distribution for maximum life
- Industry leading coverage
- Professional technicians know they can depend on National
MOOG 563 Specifications
Product Attributes
| Bearing Cap Type | 2 Low Wing Threaded and 2 High Wing Drilled |
| Bearing Type Notes | Uses Delta Wing Bearings in place of Low Wing Bearings |
| Dimension Across Bearing Wing A - Inch | 1.69 |
| Dimension Across Bearing Wing A - mm | 42.9 |
| Dimension Across U-Joint A - Inch | 4.5 |
| Dimension Across U-Joint A - mm | 114.3 |
| LUBE FITTING LOCATION | Regular libe fitting in cross |
| Greaseable | YES |
| OE Series | Mechanics 6C / Rockwell 62N |
| U-Joint Identification | 4 Wing Bearings |
| Part Description | Universal Joint |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066609959 |
MOOG 563 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U4102 |
| Autopar | 2306102, 46114, G56102X |
| Autopar - Archived | 56102X |
| BorgWarner | 114-6022, 114-6102, 114-6114, 114-6115, 114-6122, 114-6125, 114-6142, 114-6144 |
| Chicago Rawhide | 286102, 286114, 4-6114 |
| DANA | 25-4296X |
| GMB | 230-6102, G5-6102X, MC6050, 1146022, 1146102, 1146114, 1146115, 1146122, 1146125, 1146142, 1146144, 46114, 2306102 |
| Mcquay-Norris | U6102 |
| NEAPCO | 4-6114 |
| Neapco OE Series | 286102, 286114, 4-6114 |
| Perfect Circle | 6102 |
| SKF | 286102, 286114, 4-6114 |
| Spicer | 5-6102X, DT6102 |
| TRW Steering and Suspension Parts | 20096 |
MOOG 563 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG 563 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
