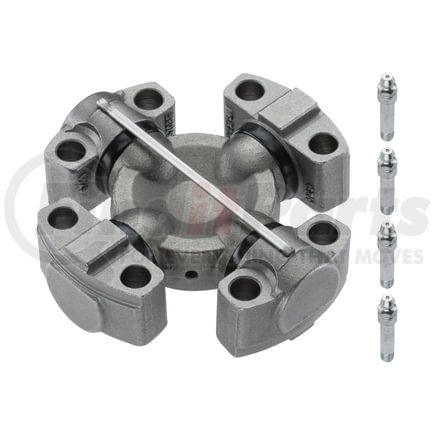

MOOG 482 Part Description
Manufacturer
Product Description
Greaseable Premium Universal Joint
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
-
Description
A full line of premium oil seals and bearings : • Premium bearing design matches OEM specifications• Precision manufactured using premium steel grades for outstanding durability and performance• Crowned raceways and rollers to ensure even load distribution for maximum life -
Specifications
TAPER CONE: Part Description: Taper Bearing ConeCone Bore (Inch): 2.7500Cone Bore (MM): 69.8500Cone Length (Inch): 1.1420Cone Length (MM): 29.0070Cone Radius (Inch): 0.1400Cone Radius (MM): 3.5560
MOOG 482 Specifications
Product Attributes
| Bearing Cap Type | 4 High Wing Drilled |
| Dimension Across Bearing Wing A - Inch | 1.94 |
| Dimension Across Bearing Wing A - mm | 49.3 |
| Dimension Across U-Joint A - Inch | 4.62 |
| Dimension Across U-Joint A - mm | 117.3 |
| LUBE FITTING LOCATION | Four long lube fittings in cross |
| Greaseable | YES |
| OE Series | Mechanics 7C / Rockwell 72N |
| U-Joint Identification | 4 Wing Bearings |
| Part Description | Universal Joint |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066609034 |
