DANA 6-4-5831 - DRIVE SHAFT END YOKE
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DANA part description
California Proposition 65 Warning

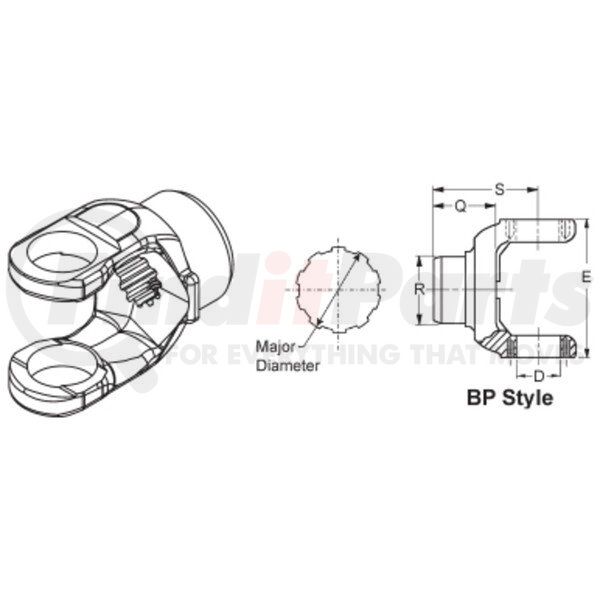

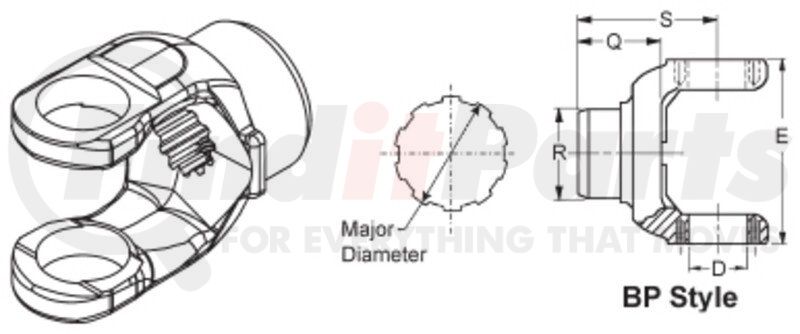

Product Attributes
Series | 1710 |
Material | Steel |
Spline Count | 18 |
Type | Splined Hole |
Hub Diameter R | 3.000 IN |
Involute Spline | I |
Length Thru Hole Q | 2.750 IN |
Outside Yoke Dimension (In) E | 6.094 IN |
Yoke Bearing Dimension (In) D | 1.938 IN |
Yoke Style | BP |
Major Diameter | 2.364 IN |
C/L To End Hub S | 5.281 IN |
C-Bore Depth | 0.440 IN |
C-Bore Diameter | 2.44 IN |
Joint Angle #1 | 12 |
Additional Information
Country of Origin (Primary) | MX |
Harmonized Tariff Code (Schedule B) | 8708990000 |
Harmonized Tariff Code (HTS) | 8708990000 |
UPC | 00023913220396 |
VMRS Code | 024001003 |
Part Interchanges
- Daimler Truck North America SP 6 4 5831HP
- Volvo SP 645831
- International Harvester (IHC) 645831
- International Harvester (IHC) D645831
- International Harvester (IHC) E645831
- McNeilus 1558850
- Navistar 645831
- Navistar D645831
- Navistar DS645831
- Navistar E645831
- Terex 079072457
- Mack 2104-645831
- Freightliner SP 6 4 5831HP
- Peterbilt 1558850
- Pierce 1558850
