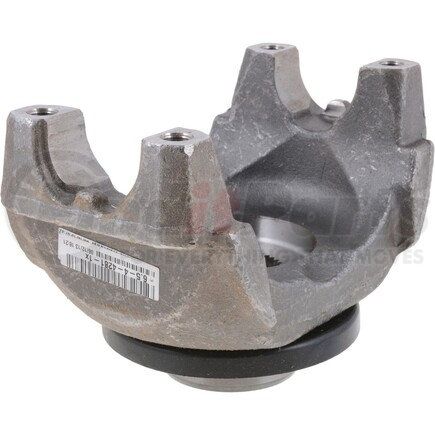

DANA 6.5-4-4281-1X - PTO SHAFT END YOKE
$32499
MSRP: $465.18
Save: $140.19
In stock
limited availability at this price!
DANA part description
California Proposition 65 Warning
Spicer 6.5-4-4281-1X Half Round End Yoke
6.5442811X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
6.5-4-4281-1X
JOINT SERIES:1810
D DIMENSION:1.94
E DIMENSION:7.55
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2
R HUB DIAMETER:2.75
S CENTERLINE TO END:5.188
SPLINE COUNT:39
SPLINE OD:2.024
NOTES:
Product Attributes
Series | 1810 |
Material | Steel |
Spline Count | 39 |
Type | Splined Hole |
Assembly | Y |
Hub Diameter R | 2.750 IN |
Includes Slinger/Plug | Y |
Involute Spline | N |
Length Thru Hole Q | 2.000 IN |
Outside Yoke Dimension (In) E | 7.643 IN |
Yoke Bearing Dimension (In) D | 1.938 IN |
Yoke Style | HR |
Major Diameter | 2.024 IN |
C/L To End Hub S | 5.188 IN |
C-Bore Depth | 0.125 IN |
Additional Information
Country of Origin (Primary) | MX |
UPC | 00023913213770 |
VMRS Code | 056002014 |
Part Interchanges
- Daimler Truck North America SP 6.5 4 4281 1X
- Daimler Truck North America SP 6.5 4 4281 1XH
- Dana Commercial Vehicle Service Parts 181MU51P12
- Dana Commercial Vehicle Service Parts 2104-65442811X
- Volvo 181MU51P12
- Volvo 2104-65442811X
- Volvo SP 65442811X
- International Harvester (IHC) 65442811X
- International Harvester (IHC) D65442811X
- International Harvester (IHC) E65442811X
- Navistar 65442811X
- Navistar D65442811X
- Navistar DS65442811X
- Navistar E65442811X
- Paccar Parts 6.5-4-4281-1X
- Mack 181MU51P12
- Mack 2104-65442811X
- Mack 25105757
- Freightliner SP 6.5 4 4281 1X
- Freightliner SP 6.5 4 4281 1XH
- UAP 6.5-4-4281-1X
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
