RAYBESTOS 780869 Part Description
Manufacturer
Product Description

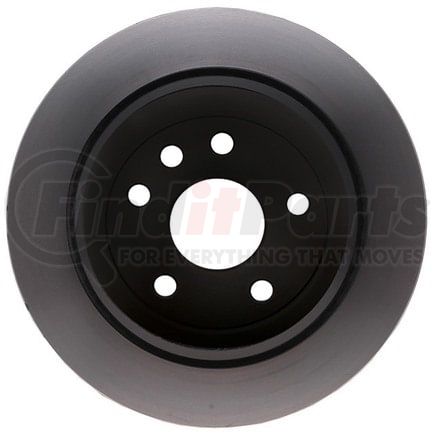

Raybestos Specialty - Truck Brake Rotor
Application Summary
2021-2011 Jeep Grand Cherokee Rear, 2021-2011 Dodge Durango Rear, 2022 Jeep Grand Cherokee WK Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780869 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.807 IN |
| Discard Thickness | 20.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.232 IN |
| Inside Diameter | 234.5 MM |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.667 IN |
| Mounting Bolt Hole Diameter | 16.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 2.504 IN |
| Overall Height | 63.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352846995 |
RAYBESTOS 780869 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH321094, YH321094P |
| AUTOPARTSOURCE | 491405 |
| AUTOXTRA | AX900948 |
| AUTOZONE | 72113, 72113DG |
| Autoxtra | AX900948P |
| BENDIX | PRT6101 |
| BRAKEBEST | 16011618, 780869, 780869FZN, 780869PER, 780869R, 780869RGS |
| BREMBO | 09.N235.11 |
| BrakeBest | 721902RGS |
| Brembo | 09.N235.21, 09.N235.2X |
| CENTRIC | 120.58007, 120.58007CRY, 121.58007, 126.58007CSL, 126.58007CSR, 126.58007SL, 126.58007SR, 127.58007L, 127.58007R, 128.58007CL, 128.58007CR, 128.58007L, 128.58007R, 320.58007 |
| CHRYSLER | 68035022AB, 68035022AC, 68035022AD, 68035022AE, 68240048AA, 68240048AB |
| Centric Parts | 120.58007, 120.58007CRY, 121.58007, 126.58007CSL, 126.58007CSR, 126.58007SL, 126.58007SR, 127.58007L, 127.58007R, 128.58007CL, 128.58007CR, 128.58007L, 128.58007R, 320.58007 |
| DURA CORP | BR53063, BR900948, BR900948-02 |
| Dodge | 68035022ae |
| DuraGo | BR900948, BR90094802, BR900948-02, BR900948-03 |
| MAGMA PRODUCTS | PSR145195 |
| NAPA BRAKES | SDK6773 |
| NEOTEK | 107328GF |
| NEWTEK AUTOMOTIVE | 53063 |
| Newtek Automotive USA | 53063 |
| POWERSTOP | AR83077EVC |
| PROMAX | 14-53063 |
| PRONTO | BR900948 |
| Parts Master | 900948 |
| QUALIS | 43176 |
| TopNotch | TN780869GEO |
| UAP | 53063 |
| Ultra Brake | 51216 |
| WAGNER | BD180436E |
| WINHERE | 6621465 |
| WORLDPAC | 1407-321094, 1427-731820 |
| Winhere | 6621902 |
RAYBESTOS 780869 Fits Vehicles
- Jeep Grand Cherokee WK (2022)
- Dodge Durango (2011-2025)
- Jeep Grand Cherokee (2011-2021)
