DANA 250DS55003C-1050M Part Description
Manufacturer
Product Description

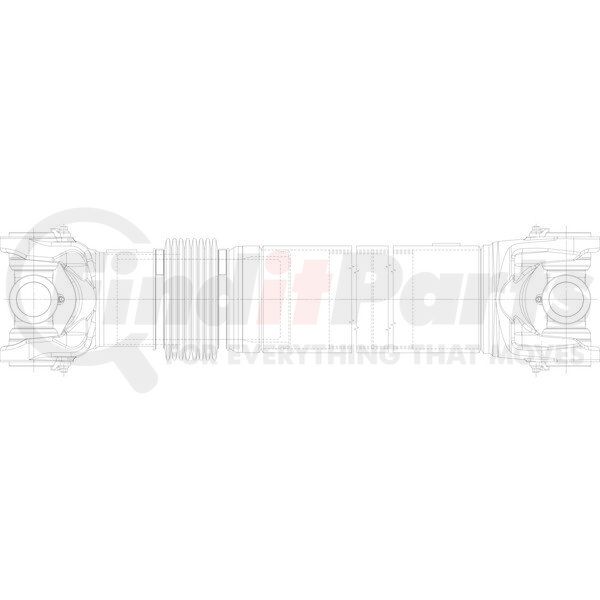

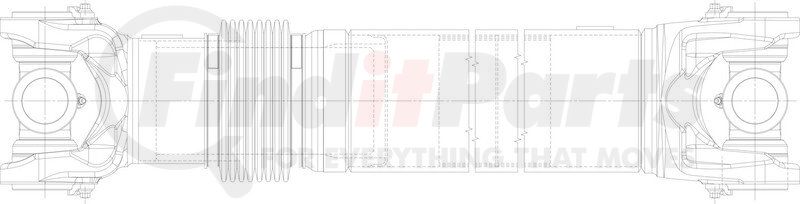

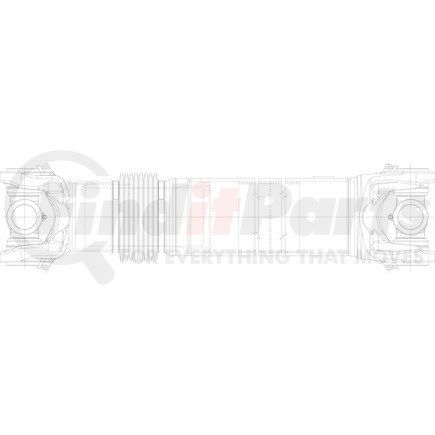

Drive Shaft
Features & Benefits
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
| Brand: | SPL |
| Series: | SPL250 |
| Material: | Steel |
| Tube Size (MM): | 130.0 x 5.00 |
| Tube Size (IN): | 5.12 x .197 |
| Slip (MM): | 110 |
| Slip (IN): | 4.3307 |
| Cl Yoke to Cl Yoke (MM) - COLL.: | 1431 |
| Cl Yoke to Cl Yoke (IN) - COLL.: | 56.3386 |
| Tube Length (MM): | 1050 |
| Tube Length (IN): | 41.3386 |
| Phased - Degrees: | N |
| VMRS: | 24000000 |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 117.7 lbs. |
| Country of Origin: | United States |
| UPC Code: | 023913538262 |
DANA 250DS55003C-1050M Specifications
Product Attributes
| Series | SPL250 |
| Material | Steel |
| Shaft Material | Steel |
| Max Slip (IN) | 4.3307 |
| Max Slip (MM) | 110.0000 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913538262 |
| VMRS Code | 024000000 |
DANA 250DS55003C-1050M Part Interchanges
| Brand | Part Number |
|---|---|
| Daimler Truck North America | A09-10519-582 |
| Dana Commercial Vehicle Service Parts | 250DS55003C-1046M, 250DS55003C-1049M, 250DS55003C-1050MR, 250DS55003C-1052M |
| Volvo | SP 250DS55003C1050M |
| International Harvester (IHC) | 225LTH1562, 225LTH1564, 425LTH1430 |
| Navistar | 225LTH1562, 225LTH1564, 425LTH1430, 425LTH1435, DS250DS55003C1050M |
| Paccar Parts | 250DS55003CP562, 250DS55003CP564, E05D250HS0000C1430, E05D250HS0000C1435, K43981430, K43981435 |
| Freightliner | A09-10519-582, A09-11378-582 |
DANA 250DS55003C-1050M Customer Reviews
No reviews yet
Be the first to review this product!
DANA 250DS55003C-1050M Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
