DANA part description

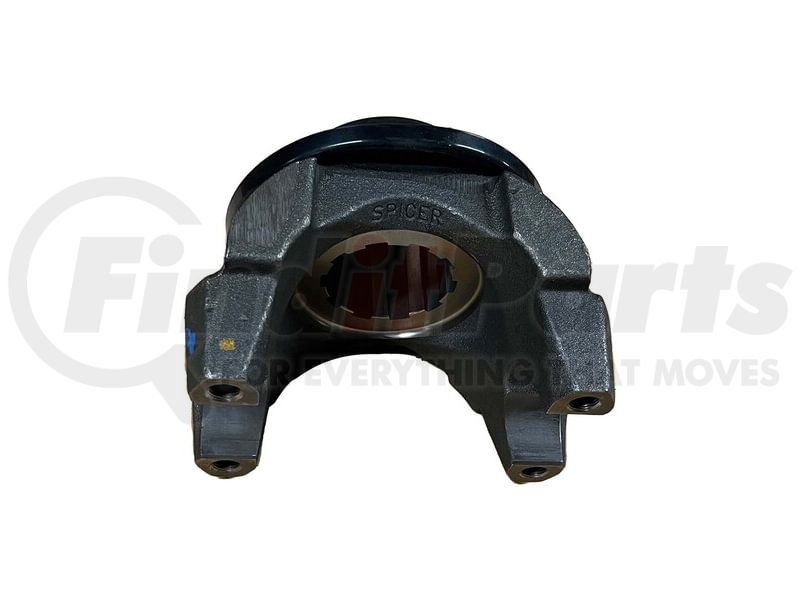

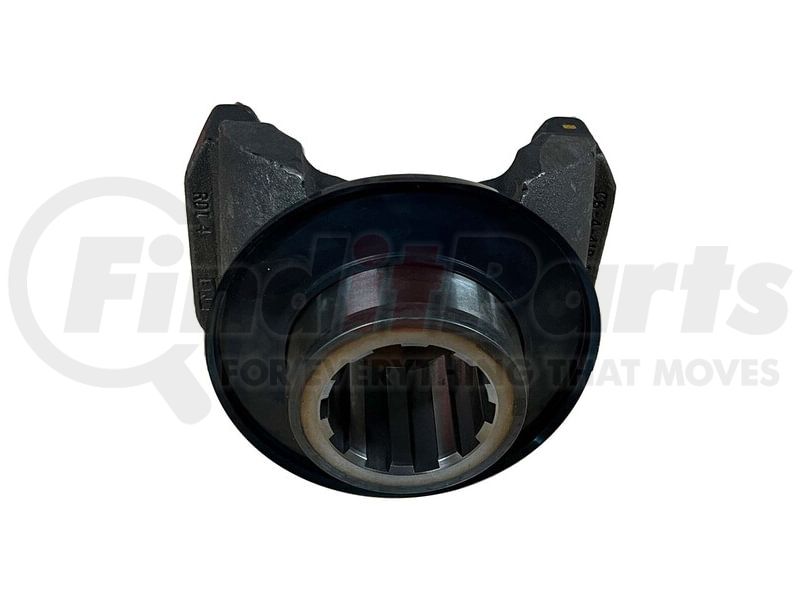

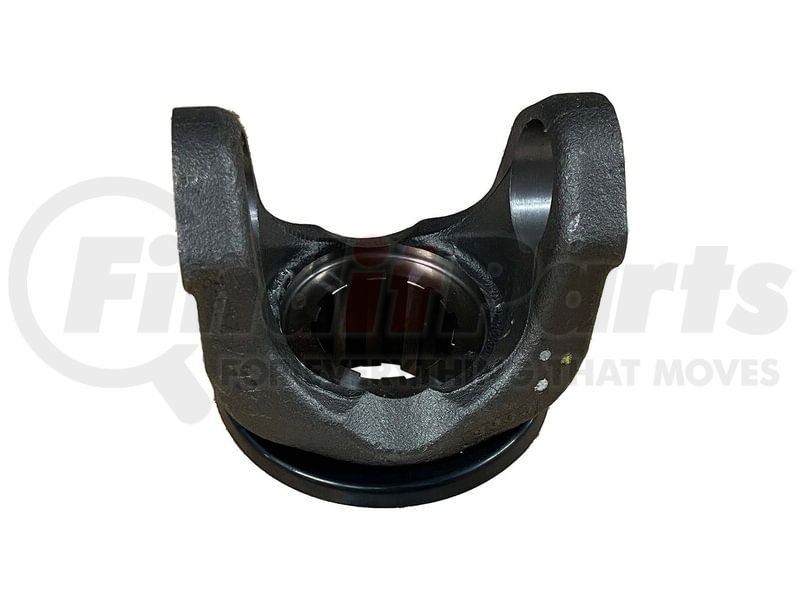

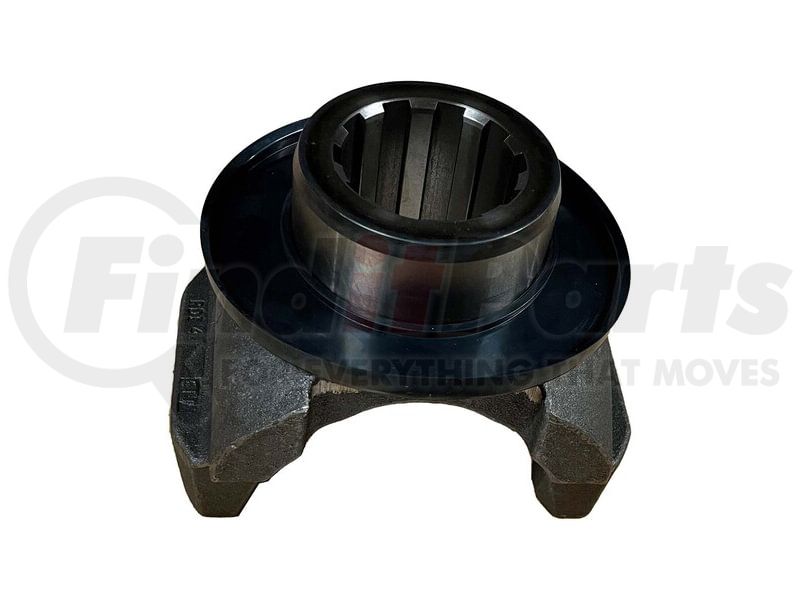

Spicer 6-4-8321X 1710 Series Full Round End Yoke

PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6-4-8321X
JOINT SERIES:
D DIMENSION:
E DIMENSION:
YOKE STYLE:
Q LENGTH THRU HOLE:
R HUB DIAMETER:
S CENTERLINE TO END:
SPLINE COUNT:10
SPLINE OD:2.5
NOTES:

Product Attributes

Series 1710
Material Steel
Spline Count 10
Type Splined Hole
Assembly Y
Hub Diameter R 3.500 IN
Includes Slinger/Plug Y
Involute Spline N
Length Thru Hole Q 2.406 IN
Outside Yoke Dimension (In) E 6.094 IN
Yoke Bearing Dimension (In) D 1.938 IN
Yoke Style BP
Major Diameter 2.500 IN
C/L To End Hub S 5.156 IN

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8708990000
Harmonized Tariff Code (HTS) 8708990000
UPC 00023913221690
VMRS Code 022003072
