(888) 312-8812 Login SignupDANA 170-4-2021-1X SPL170 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 49 Spline
MSRP: $290.08
$25449
Save $35.59
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16

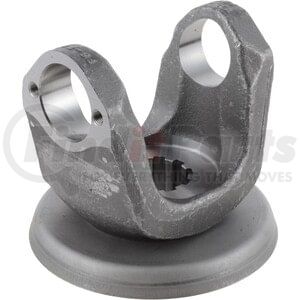

DANA 170-4-2021-1X Part Description
Manufacturer
Specifications
| Brand | Spicer |
| Series | SPL170 |
| Spline Count | 49 |
| Yoke Style | HR |
| Hub Diameter R | 3.820 |
| C/L To End Hub S | 5.531 |
| Type | Splined Hole |
| Outside Yoke Dimension (In) E | 6.456 |
| Yoke Bearing Dimension (In) D | 2.166 |
| Major Diameter | 2.544 |
| Involute Spline | Y |
| Length Thru Hole Q | 2.125 |
| VMRS | 022003072 |
| C-Bore Depth | 0.120 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 17.5 LB |
| Country of Origin | United States |
DANA 170-4-2021-1X Specifications
Product Attributes
| Series | SPL170 |
| Material | Steel |
| Spline Count | 49 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 3.820 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | Y |
| Length Thru Hole Q | 2.125 IN |
| Outside Yoke Dimension (In) E | 6.456 IN |
| Yoke Bearing Dimension (In) D | 2.166 IN |
| Yoke Style | HR |
| Major Diameter | 2.544 IN |
| C/L To End Hub S | 5.531 IN |
| C-Bore Depth | 0.120 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913445768 |
| VMRS Code | 022003072 |
DANA 170-4-2021-1X Part Interchanges
| Brand | Part Number |
|---|---|
| International Harvester (IHC) | 3765438C91 |
| Navistar | 3765438C91, 3782694C91, DS170420211X |
DANA 170-4-2021-1X Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
