Cole Hersee 90005-03 - 90005-03 - Rotary Reversing Switches Series
- Part Number
- 90005-03
- Manufacturer
- COLE HERSEE
- Description
-
90005-03 - Rotary Reversing Switches Series
details
$10999
In stock
limited availability at this price!
. Learn more
COLE HERSEE part description
Rheostat Switches provide variable intensity control of defroster fan motors and heater blowers.
All products listed in this section can be found in Section D of the Cole Hersee D-275 CATALOG.
- 15A at 12V DC.
- Key actuatorThe part of a switch assembly used by the operator that causes switch contacts to engage or disengage. Actuators include pushbuttons, levers, slides, keylocks, rockers and toggles. Cole Hersee switches offer you many ways of performing the same electrical function. with coded tumbler lock.
- Spring return to Off from both On positions.
- O-ring seal in stem.
- Mounting stem 13/16â€-24 thread.
- Silver contactsA pair of devices that touch or come apart at the point where the switch throw makes or breaks the circuit. Silver contacts are common because of their low conductivity and low electrical resistance. Many Cole Hersee switches have silver contacts..
- Four screw terminals.
- Plated steel case.
- For Forward-Reverse action of a motor, giving a motion such as Up-Down, In-Out etc. Useful for control of tailgates winches, windlasses, snowplows and more. DPDT
| Description | Reversing Rotary Switch (Universal) |
| Positions | Momentary On - Off - Momentary On |
| Current Rating | 15A |
| Terminals | 4 Screw |
| Contacts | Bronze |
| Mounting stem | 13/16" -24 |
| Actuator | Coded Tumbler Lock |
| Case | Plated Steel |
| O-Ring seal | Yes |
| Number of positions | 3 |
| Key | 83379 |

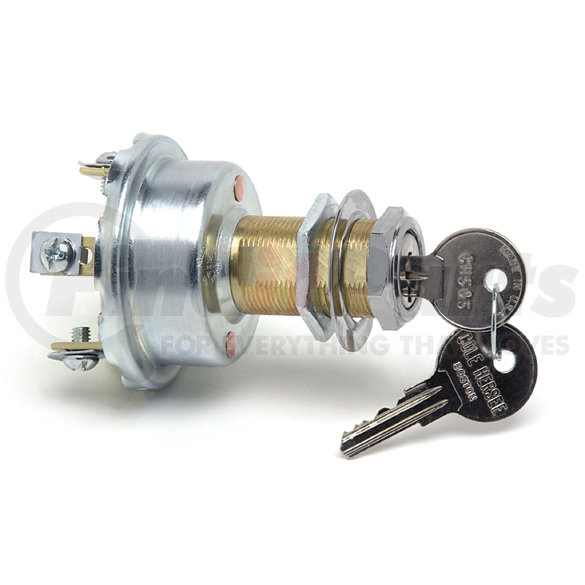

Cole Hersee Reversing Rotary Switch
The Cole Hersee reversing rotary switch provides flexibility and reliable performance when you need it. These switches enable motors to operate in both forward and reverse, allowing for a wide range of motions.
Features & Benefits
- Silver-plated contacts provide exceptional corrosion protection and optimum conductivity
- Durable plated steel housing protects internal components from the elements
- Performance-tested to withstand prolonged exposure to harsh environments
- Suitable for use in construction, agriculture, materials handling, transit, and commercial vehicles and equipment
COLE HERSEE 90005-03 Cross Reference
We have 2 alternatives for the 90005-03 by COLE HERSEE:
Cole Hersee® is highly valued in the heavy duty truck industry. It is a leading manufacturer of heavy-duty battery master switches that are widely used as OE equipment by leading heavy-duty vehicle manufacturers. These switches are essential safety components for trucks as they help prevent theft, tampering, electrical fires, and battery drain. Founded in 1924, Cole Hersee is committed to improving vehicle safety by partnering with ECCO Safety Group Australia (ESGA) to establish and implement safety standards for trucks that drive onto mining sites. Its products are also manufactured in its ISO 9001:2008-certified facility and undergo strict testing to ensure safety and reliability.
