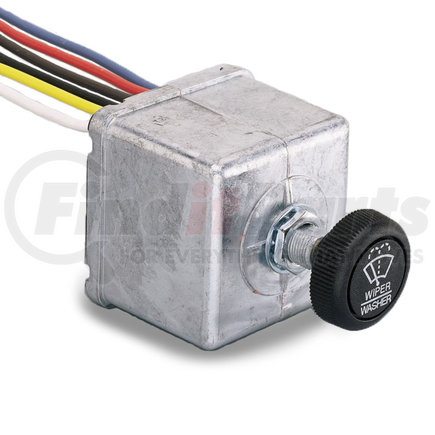

(888) 312-8812 Login SignupCOLE HERSEE 75600-02 75600-02 - Electronic Windshield Wiper Switches Series
Tap to view 1 more
MSRP: $140.77
$12649
Save $14.28
Limited availability at this price!
In Stock
Get it by Monday, Dec 15
COLE HERSEE 75600-02 Part Description
Manufacturer
All products listed in this section can be found in Section E of the Cole Hersee D-275 CATALOG.
- Controls one 12V motor.
- One Delphi (Packard) 6-way male connector 2977042 (mates with 2977044).
- Lead and connector assembly: 5.625" (142.9mm) long.
- With dynamic parking.
- With intermittentSome switches are designed for infrequent (or intermittent) use. Devices such as solenoids may need a cooling period before they should be re-actuated. Rating a switch for intermittent use typically allows it to operate at a higher current than might otherwise be recommended. See CONTINUOUS. You can use a Continuous Duty Solenoid in place of an Intermittent Duty Solenoid, but it would have a shorter life expectancy compared to the purpose-built Intermittent Duty Solenoid. DO NOT use an Intermittent Duty Solenoid in place of a Continuous Duty Solenoid! delayA difference in time between the start of an event and its occurrence. Typically used in descriptions of fuses. A fuse with a short delay trips faster, but in many cases, a longer delay may be desirable. feature for permanent magnet electric wiper motors.
- Ensures dependable control of windshield wipers on heavy duty vehicles.
- Negative ground only.
- 4 positions: Off-Park - intermittent range - Low - High.
- Push-to wash one to three wipes after knob is released.
- Black plastic knob with metal insert and set screwA threaded fastener typically used to hold a sleeve, collar or gear on a shaft to prevent relative motion. You can find it on several Cole Hersee brand knobs, many of which have a metal sleeve with set screw to insure reliable operation. A set screw normally does not have a head. Various socket types are provided to allow the set screw to be rotated. These types include hexagon socket, fluted socket, screwdriver slot and square head. , with white SAE washer-wiper symbol..
- Diecast case 2 7/32" (56.4mm) square, 1 13/16" (46.0mm) long.
- 7/16 - 28 thread mounting stem 0.45" (11.3mm) long.
- Hexnut and lockwasher included.
- Switches conform to SAE J1455, SAE J112a and SAE J234.
- Switch controls most two-speed wiper motors.
- Wiring:
- Red – Power
- Black – Ground
- Yellow – Low Speed
- White – High Speed
- Brown – Washer
- Blue – Park
| Description | Wiper Switch |
| Details | 12V Dc, controls one motor |
| Positions | 4 positions: Off-Park - intermittent range - Low - High. |
| Dynamic parking | Yes |
| Terminals | Delphi 6-way connector |
| Mounting stem | 7/16 - 28 thread mounting stem 0.45" (11.3mm) long. |
| Actuator | Round black knob |
| Actuator imprint | SAE wiper symbol |
| Case | Diecast |
| O-Ring seal | No |
| Min qty |
Cole Hersee Windshield Wiper Switch
The Cole Hersee windshield wiper switch provides reliable in-cabin wiper control on heavy duty vehicles. It is not compatible with self-parking wiper motors.
Features & Benefits
- Push-to-wash capability that allows for 2-3 full wipes once the button is released
- Comes with a built-in intermittent delay feature for permanent magnet wiper motors
- Durable power supply circuit that resists noise, reverse polarity, RF radiation, and load dump
- Complies with SAE J1455, J112a, and J234 requirements
COLE HERSEE 75600-02 Cross References
We have 2 alternatives for the 75600-02 by COLE HERSEE:
COLE HERSEE 75600-02 Manufacturer Information
Cole Hersee® is highly valued in the heavy duty truck industry. It is a leading manufacturer of heavy-duty battery master switches that are widely used as OE equipment by leading heavy-duty vehicle manufacturers. These switches are essential safety components for trucks as they help prevent theft, tampering, electrical fires, and battery drain. Founded in 1924, Cole Hersee is committed to improving vehicle safety by partnering with ECCO Safety Group Australia (ESGA) to establish and implement safety standards for trucks that drive onto mining sites. Its products are also manufactured in its ISO 9001:2008-certified facility and undergo strict testing to ensure safety and reliability.
