(888) 312-8812 Login SignupRAYBESTOS 680105PER Raybestos Specialty - Street Performance S-Groove Brake Rotor
$18549
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Aug 6
RAYBESTOS 680105PER Part Description
Manufacturer
Product Description

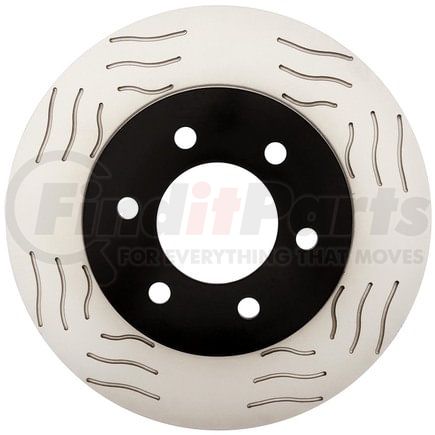

Raybestos Specialty - Street Performance S-Groove Brake Rotor
Application Summary
2006-2003 Ford Expedition Front, 2006-2003 Lincoln Navigator Front
RAYBESTOS 680105PER Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.54 IN |
| Center Hole Diameter | 89.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Nominal Thickness | 1.18 IN |
| Nominal Thickness | 29.95 MM |
| Outside Diameter | 12.99 IN |
| Outside Diameter | 329.95 MM |
| Overall Height | 1.885 IN |
| Overall Height | 47.9 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Stud/Lug Hole Quantity | 6 |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Quantity | 6 |
| Material | Cast Iron |
| Mounting Bolt Hole Diameter | 16.15 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352747889 |
RAYBESTOS 680105PER Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145367, YH145367 |
| AUTOSPECIALTY | AR8590, AR8590E |
| Advance Auto Parts | G12380SD, YH145367C, YH145367P |
| AutoZone | 54099, 54099DG, DL54099 |
| Autoxtra | AX54099 |
| BENDIX | 145367, PRT5367 |
| BRAKEBEST | 81-125780, BD125780 |
| BREMBO | 27241 |
| BrakeBest | 20010337, 680105, 680105P, 680105PER, 680105R, 680105RGS |
| Brembo | 09.B620.10 |
| CENTRIC | 120.65097, 121.65097, 125.65097 |
| CONTINENTAL-CONTITECH | CW30720 |
| Casting Numbers | 211460-C, 325552 |
| Centric Parts | 120.65097, 121.65097, 125.65097, 125.65097CRY, 126.65097CSL, 126.65097CSR, 126.65097SL, 126.65097SR, 127.65097L, 127.65097R, 128.65097CL, 128.65097CR, 128.65097L, 128.65097R, 227.65097L, 227.65097R, 320.65097, 320.65097F, 321.65097 |
| DURA CORP | BR54099 |
| Dura Corp | BR5409902 |
| DuraGo | BR54099 |
| FORD | 2L1Z1125AA, 5L1Z1125AA, 5L1Z1125BA, 6L1Z1125A |
| GUARDIAN | 52-125780 |
| MOTORCRAFT | BRR115 |
| Mighty Distributing System | 54099 |
| Monroe Brakes | BD125780 |
| Motorcraft | NBRR81 |
| Newtek Automotive USA | 54099 |
| PowerStop | AR8590EVC |
| QUALIS | 54099 |
| QUALITY BRAND | Q4161 |
| STANDARD ROTORS AND DRUMS | 54099 |
| THE UNIVERSAL GROUP | 102976 |
| UAP | 2054099 |
| Universal | 102976 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51463 |
| WABCO - Archived | PS125780 |
| WAGNER BRAKE | BD125780 |
| WORLDPAC | 1407-25852 |
| Wagner Brake | BD125780E |
| Winhere | 6620006 |
RAYBESTOS 680105PER Fits Vehicles
- Lincoln Navigator (2002-2006)
- Ford Expedition (2002-2006)
