(888) 312-8812 Login SignupRAYBESTOS 980784 Raybestos Specialty - Truck Brake Rotor
$13999
Limited availability at this price!
1 Day Lead Time
Get as soon as Friday, Sep 25
RAYBESTOS 980784 Part Description
Manufacturer
Product Description

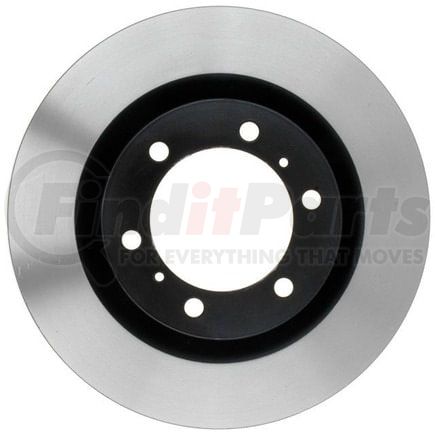

Raybestos Specialty - Truck Brake Rotor
Application Summary
2023-2010 Toyota 4Runner Front, 2023-2010 Lexus GX460 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980784 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.26 IN |
| Center Hole Diameter | 108.2 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.142 IN |
| Discard Thickness | 29 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.137 IN |
| Inside Diameter | 232.1 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.57 IN |
| Mounting Bolt Hole Diameter | 14.5 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.258 IN |
| Nominal Thickness | 31.95 MM |
| Outside Diameter | 13.309 IN |
| Outside Diameter | 338.05 MM |
| Overall Height | 2.688 IN |
| Overall Height | 68.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352795422 |
RAYBESTOS 980784 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 289739, YH289739, YH289739C, YH289739P, YH527286P |
| AUTOPARTSOURCE | 479985 |
| AUTOXTRA | AX900910 |
| AUTOZONE | 71917, 71917DG, 71917DL |
| Autoxtra | AX900910P |
| BENDIX | PRT6066 |
| BRAKEBEST | 50011492, 980784, 980784FZN, 980784R, 980784RGS |
| Brembo | 09.B634.11, 09.B634.1X |
| CENTRIC | 120.44174, 120.44190, 121.44174, 121.44190, 126.44174CSL, 126.44174CSR, 126.44174SL, 126.44174SR, 127.44174CL, 127.44174CR, 127.44174L, 127.44174R, 128.44174L, 128.44174R, 227.44174L, 227.44174R, 320.44174 |
| Centric Parts | 120.44174, 120.44190, 121.44174, 121.44190, 126.44174CSL, 126.44174CSR, 126.44174SL, 126.44174SR, 127.44174CL, 127.44174CR, 127.44174L, 127.44174R, 128.44174L, 128.44174R, 227.44174L, 227.44174R, 320.44174 |
| DURA CORP | BR31554, BR900910, BR90091002 |
| DuraGo | BR900910, BR90091002, BR900910-02 |
| Dynamic Friction Company | 604-76142 |
| MAGMA PRODUCTS | PSR565187 |
| NEOTEK | 1063061GF |
| NEWTEK AUTOMOTIVE | 31554 |
| Newtek Automotive USA | 31554 |
| POWERSTOP | JBR1395EVC |
| PROMAX | 14-31554 |
| PRONTO | BR900910 |
| QUALIS | 44714 |
| Qualis | 44819 |
| TOYOTA | 4351260190, 4351260191 |
| TopNotch | TN980784GEO |
| UAP | 2031554, 31554 |
| WAGNER BRAKE | BD180404, BD180404E |
| WINHERE | 6621220 |
| WORLDPAC | 1407-289739, 1427-731765 |
| WORLDPARTS | WS1-231554 |
RAYBESTOS 980784 Fits Vehicles
- Lexus GX460 (2010-2023)
- Toyota 4Runner (2010-2024)
RAYBESTOS 980784 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980784 Questions & Answers
No questions yet
Be the first to ask a question about this product!
