(888) 312-8812 Login SignupRAYBESTOS 980767 Raybestos Specialty - Street Performance Brake Rotor
$13249
Limited availability at this price!
1 Day Lead Time
Get as soon as Monday, Oct 19
RAYBESTOS 980767 Part Description
Manufacturer
Product Description

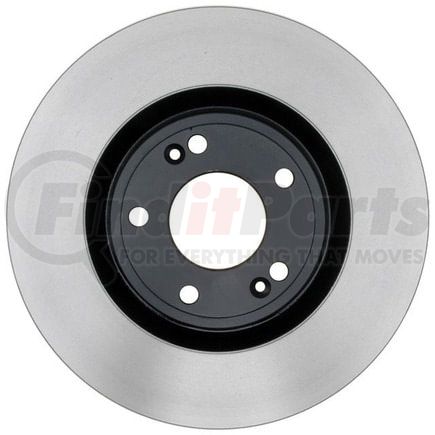

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2016-2010 Hyundai Genesis Coupe Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980767 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.933 IN |
| Inside Diameter | 201.5 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 2.23 IN |
| Overall Height | 56.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352778852 |
RAYBESTOS 980767 Cross References
| Brand | Part Number |
|---|---|
| ADVICS | R6R296U |
| AUTOPARTSOURCE | 482370 |
| AUTOXTRA | AX900796 |
| AUTOZONE | 44634DG, 70106 |
| BENDIX | PRT5855 |
| BOSCH | 28011494 |
| BRAKEBEST | 28011494, 980767, 980767R, 980767RGS |
| CENTRIC | 120.51038, 121.51038, 126.51038SL, 126.51038SR, 127.51038CL, 127.51038CR, 127.51038L, 127.51038R, 128.51038CL, 128.51038CR, 128.51038L, 128.51038R, 320.51038 |
| Centric Parts | 120.51038, 121.51038, 126.51038SL, 126.51038SR, 127.51038CL, 127.51038CR, 127.51038L, 127.51038R, 128.51038CL, 128.51038CR, 128.51038L, 128.51038R, 320.51038 |
| DURA CORP | BR31547, BR900792, BR900796 |
| DuraGo | 900792, BR900792, BR980792 |
| Hyundai | 517122M000 |
| MAGMA PRODUCTS | PSR283037 |
| NEWTEK AUTOMOTIVE | 31547 |
| Newtek Automotive USA | 31547 |
| PROMAX | 14-31547 |
| PRONTO | BR900792 |
| Qualis | 44634 |
| UAP | 2900792, R51038 |
| WAGNER | BD180368 |
| WAGNER BRAKE | BD180368 |
| WINHERE | 6621135 |
| WORLDPAC | 1407-274778 |
| WORLDPARTS | WS1-331547 |
RAYBESTOS 980767 Fits Vehicles
- Hyundai Genesis Coupe (2010-2016)
RAYBESTOS 980767 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980767 Questions & Answers
No questions yet
Be the first to ask a question about this product!
