(888) 312-8812 Login SignupRAYBESTOS 580746 Raybestos Specialty - Street Performance Brake Rotor
$20699
Limited availability at this price!
In Stock
Get it by Thursday, Aug 13
RAYBESTOS 580746 Part Description
Manufacturer
Product Description

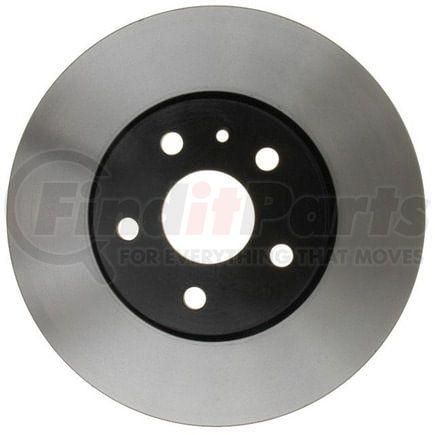

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2017-2010 Chevrolet Equinox Front, 2017-2010 GMC Terrain Front, 2015-2013 Chevrolet Malibu Front, 2015-2010 Chevrolet Camaro Front, 2020-2014 Chevrolet Impala Front, 2016-2010 Buick LaCrosse Front, 2017-2011 Buick Regal Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580746 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.7 IN |
| Center Hole Diameter | 67.3 MM |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.1 IN |
| Discard Thickness | 27.0 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.5 IN |
| Inside Diameter | 190.5 MM |
| Misc. Holes | 1 |
| Mounting Bolt Hole Circle Diameter | 4.7 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Diameter | 16.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.2 IN |
| Nominal Thickness | 30.0 MM |
| Outside Diameter | 12.6 IN |
| Outside Diameter | 321.0 MM |
| Overall Height | 2.0 IN |
| Overall Height | 51.0 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
| Material | Cast Iron |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 321.0 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 10.0 |
| Weight [cntrc] Lbs | 22.2 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352778616 |
RAYBESTOS 580746 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH286282, YH286282C, YH286282P |
| ATE BRAKE PRODUCTS | SP30209, 430209 |
| AUTOPARTSOURCE | 593112 |
| AUTOXTRA | AX900748 |
| AUTOZONE | 72006, 72006DG, 72009DG |
| AutoZone | 72006DL |
| Autoxtra | AX900748P |
| BOSCH | 25011437 |
| BRAKEBEST | 25011437, 580746, 580746FZN, 580746R, 580746RGS |
| BREMBO | 09.A971.11, 09.A971.1X |
| CENTRIC | 120.62120, 120.62120CRY, 121.62120, 121.62186, 125.62186, 126.62120CSL, 126.62120CSR, 126.62120SL, 126.62120SR, 127.62120CL, 127.62120CR, 127.62120L, 127.62120R, 128.62120CL, 128.62120CR, 128.62120L, 128.62120R, 320.62120, 320.62186C, 321.62120, 320.6212, 120.6212 |
| Centric Parts | 120.62120, 120.62120CRY, 121.62120, 126.62120CSL, 126.62120CSR, 126.62120SL, 126.62120SR, 127.62120CL, 127.62120CR, 127.62120L, 127.62120R, 128.62120CL, 128.62120CR, 128.62120L, 128.62120R, 320.62120, 121.62186, 125.62186, 320.62186C, 321.62120 |
| DURA CORP | BR55174, BR900748, BR90074802 |
| DuraGo | 900748, BR900748, BR90074802, BR900748-02 |
| Dynamic Friction Company | 604-45016 |
| Eurorotor | 55991 |
| GM | 13501297, 13501320, 23118055, 23118530, 84575255 |
| General Motors | 13501297, 13501320, 23118055, 23118530, 84575255, 85114492 |
| MAGMA PRODUCTS | PSR225254 |
| MONROE BRAKES | BD180356 |
| NAPA BRAKES | SDK6210 |
| NEOTEK | 1072075GF |
| NEWTEK AUTOMOTIVE | 55174 |
| Newtek Automotive USA | 55174 |
| OPEL | 13501308 |
| POWERSTOP | AR82126EVC |
| PROMAX | 14-55174, 20-55174 |
| PRONTO | BR900748 |
| Parts Master | 900748 |
| QUALIS | 41260 |
| SAAB | 13502214, 13579148 |
| TRW | 4996 |
| TopNotch | TN580746GEO |
| UAP | 2900748, 2900762, 2900914, R62120 |
| WABCO | PS900748 |
| WABCO - Archived | PS900748 |
| WAGNER | BD180356E |
| WAGNER BRAKE | BD180356, BD180356E, R62110 |
| WINHERE | 6621223 |
| WORLDPAC | 1407-286282, 1427-731735 |
| Winhere | 6620984, 6623001 |
RAYBESTOS 580746 Fits Vehicles
- Saab 9-5 (2011)
- Chevrolet Corvette (2020-2025)
- Chevrolet Malibu Limited (2016)
- Chevrolet Impala (2014-2020)
- Chevrolet Malibu (2013-2016)
- Buick Allure (2010)
- Buick Regal (2011-2017)
- Chevrolet Equinox (2010-2017)
- GMC Terrain (2010-2017)
- Buick LaCrosse (2010-2016)
- Chevrolet Camaro (2010-2015)
