RAYBESTOS 580771 Part Description
Manufacturer
Product Description

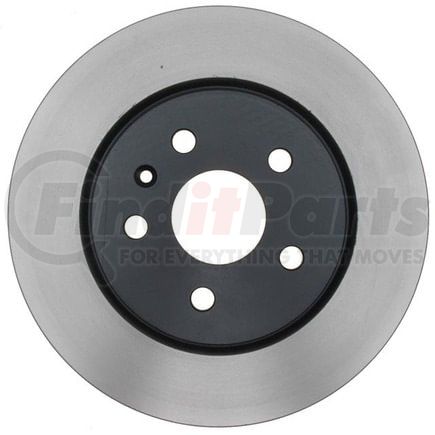

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2015-2013 Chevrolet Malibu Rear, 2020-2014 Chevrolet Impala Rear, 2016-2010 Buick LaCrosse Rear, 2022-2016 Chevrolet Camaro Rear, 2019-2013 Cadillac XTS Rear, 2017-2011 Buick Regal Rear, 2016 Chevrolet Malibu Limited Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580771 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.65 IN |
| Center Hole Diameter | 67.3 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.847 IN |
| Discard Thickness | 21.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.162 IN |
| Inside Diameter | 207.3 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.635 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.908 IN |
| Nominal Thickness | 23.05 MM |
| Outside Diameter | 12.398 IN |
| Outside Diameter | 314.9 MM |
| Overall Height | 1.883 IN |
| Overall Height | 47.85 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352778678 |
RAYBESTOS 580771 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH290610C, YH290610P |
| AUTOPARTSOURCE | 493128 |
| AUTOXTRA | AX900900 |
| Advance Auto Parts | YH290610, YH290610HC |
| AutoZone | 72009, 72065DG, 72065DL |
| Autoxtra | AX900900P |
| BENDIX | SDR5442 |
| BOSCH | 25011438 |
| BRAKEBEST | 25011438, 580771, 580771FZN, 580771R |
| BREMBO | 08.A970.10, 08.A970.11, 09.A972.11 |
| BrakeBest | 580771RGS |
| CENTRIC | 120.38024, 120.62127, 121.38024, 121.62127, 125.38024, 126.38024SL, 126.38024SR, 126.62127SL, 126.62127SR, 127.38024L, 127.38024R, 127.62127CL, 127.62127CR, 127.62127L, 127.62127R, 128.38024L, 128.38024R, 128.62127L, 128.62127R, 320.62127 |
| Cadillac | 13592623 |
| Centric Parts | 120.38024, 120.62127, 121.38024, 121.62127, 125.38024, 126.38024SL, 126.38024SR, 126.62127SL, 126.62127SR, 127.38024L, 127.38024R, 127.62127CL, 127.62127CR, 127.62127L, 127.62127R, 128.38024L, 128.38024R, 128.62127L, 128.62127R, 320.62127 |
| DURA CORP | BR55179, BR900900 |
| DuraGo | 900900, BR900900, BR900900-02 |
| GM | 13501290, 13501314, 13592623, 23118533, 23118534 |
| General Motors | 13501290, 13501314, 13592623, 23118533, 23118534 |
| MAGMA PRODUCTS | PSR223132 |
| NAPA BRAKES | SDK6257 |
| NEOTEK | 1072082GF, 1072084GF |
| NEWTEK AUTOMOTIVE | 55179 |
| Newtek Automotive USA | 55179 |
| OPEL | 13501303 |
| POWERSTOP | AR82146EVC |
| PROMAX | 14-55179 |
| PRONTO | BR900900 |
| Qualis | 41267 |
| SAAB | 13502199 |
| TopNotch | TN580771GEO |
| UAP | 2055179, 55179, R62115 |
| Ultra Brake | 55202 |
| WAGNER BRAKE | BD180390 |
| WINHERE | 6620981 |
| WORLDPAC | 1407-290610, 1427-499337 |
| Wagner Brake | BD180390E, BD180517 |
| Winhere | 6621929 |
RAYBESTOS 580771 Fits Vehicles
- Cadillac CT5 (2020-2025)
- Cadillac CT6 (2016-2020)
- Chevrolet Camaro (2016-2024)
- Chevrolet Malibu Limited (2016)
- Chevrolet Impala (2014-2020)
- Cadillac XTS (2013-2019)
- Chevrolet Malibu (2013-2016)
- Buick Allure (2010)
- Saab 9-5 (2011)
- Buick Regal (2011-2017)
- Buick LaCrosse (2010-2016)
