(888) 312-8812 Login SignupRAYBESTOS 680508R Raybestos R-Line Brake Rotor
$18999
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 6
RAYBESTOS 680508R Part Description
Manufacturer
Product Description

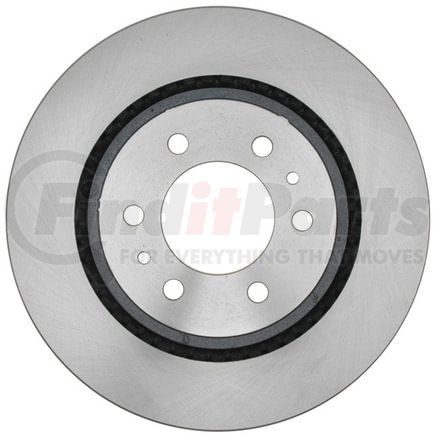

Raybestos R-Line Brake Rotor
Application Summary
2020-2010 Ford F-150 Front, 2021-2007 Ford Expedition Front, 2021-2007 Lincoln Navigator Front, 2014-2012,2010 Ford Lobo Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 680508R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.54 IN |
| Center Hole Diameter | 89.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.26 IN |
| Discard Thickness | 32 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.339 IN |
| Nominal Thickness | 34 MM |
| Outside Diameter | 13.78 IN |
| Outside Diameter | 350 MM |
| Overall Height | 1.95 IN |
| Overall Height | 49.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352795323 |
RAYBESTOS 680508R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | BD126433, G09290SD, YH145698C, YH145698P |
| AUTOPARTSOURCE | 592845 |
| AUTOXTRA | AX900846, AX900848 |
| AUTOZONE | 42251, 42251DG, 42251DL |
| AutoZone | 42251SD |
| Autoxtra | AX900846P |
| BENDIX | PRT5698, SDR5698 |
| BOSCH | 20011442 |
| BRAKEBEST | 20011442, 680508, 680508FZN, 680508P, 680508PER, 680508R, 680508RGS |
| CENTRIC | 120.65119, 121.65119, 126.65119CSL, 126.65119CSR, 126.65119SL, 126.65119SR, 127.65119CR, 127.65119L, 127.65119R, 127.65119CL, 128.65119CL, 128.65119CR, 128.65119L, 128.65119R, 227.65119L, 227.65119R, 320.65119, 320.65119F, 321.65119 |
| Centric Parts | 120.65119, 121.65119, 126.65119CSL, 126.65119CSR, 126.65119SL, 126.65119SR, 127.65119CL, 127.65119CR, 127.65119L, 127.65119R, 128.65119CL, 128.65119CR, 128.65119L, 128.65119R, 227.65119L, 227.65119R, 320.65119, 320.65119F, 321.65119 |
| DURA CORP | BR54153, BR900368, BR900846, BR900846-02, BR900848 |
| DuraGo | 60410, 900368, 900846, BR60410, BR900368, BR900846, BR90084602, BR900846-02 |
| Dynamic Friction Company | 604-54204 |
| Eurorotor | 54233 |
| FORD | 7L1Z1125A, 7U2Z1V125HA, 7U2Z1V125HC, 8L1Z1125A, 9L1Z1125A, AL3Z1125B, CL3Z1125B, CL3Z1125D, FL3Z1125A, JL3Z1125A |
| Ford | JL3Z1125B, JL3Z1125C |
| MAGMA PRODUCTS | PMR205231 |
| MONROE BRAKES | BD126433 |
| MOTORCRAFT | BRR155, BRR227, BRRF293 |
| NEWTEK AUTOMOTIVE | 54153 |
| Neotek Drums and Rotors | 1071038GF |
| Newtek Automotive USA | 54153 |
| POWERSTOP | AR85108EVC |
| PROMAX | 14-54153, 20-54153 |
| QUALIS | 42251 |
| TopNotch | TN680508GEO |
| UAP | 2054153, 54153 |
| Ultra Brake | 54233 |
| WABCO | PS900846 |
| WABCO - Archived | PS900846 |
| WAGNER | BD126433E, BD126433 |
| WAGNER BRAKE | BD126433, BD126433E |
| WINHERE | 6620754 |
| WORLDPAC | 1407-75229, 1427-499345 |
RAYBESTOS 680508R Fits Vehicles
- Ford Expedition (2007-2021)
- Ford F-150 (2010-2020)
- Ford Lobo (2010, 2012-2014)
- Lincoln Navigator (2007-2023)
