GATES 38631 Part Description
Manufacturer
Product Description

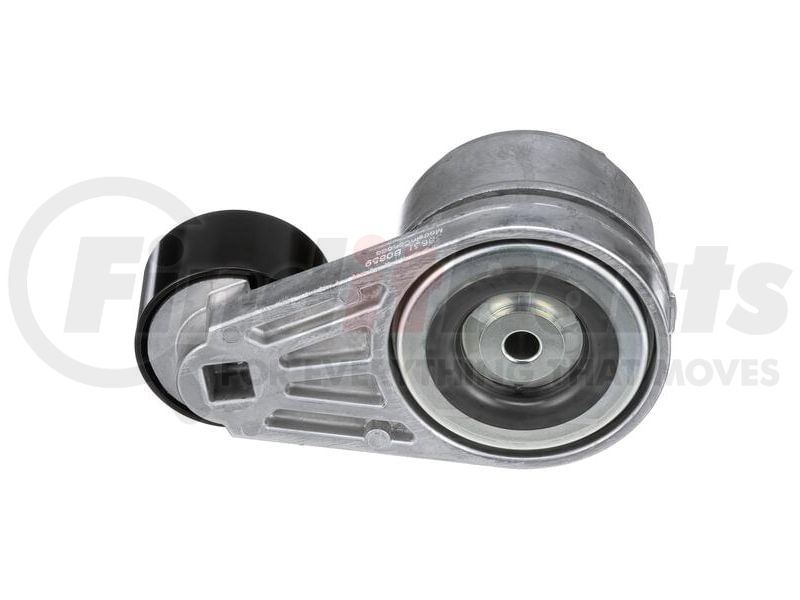

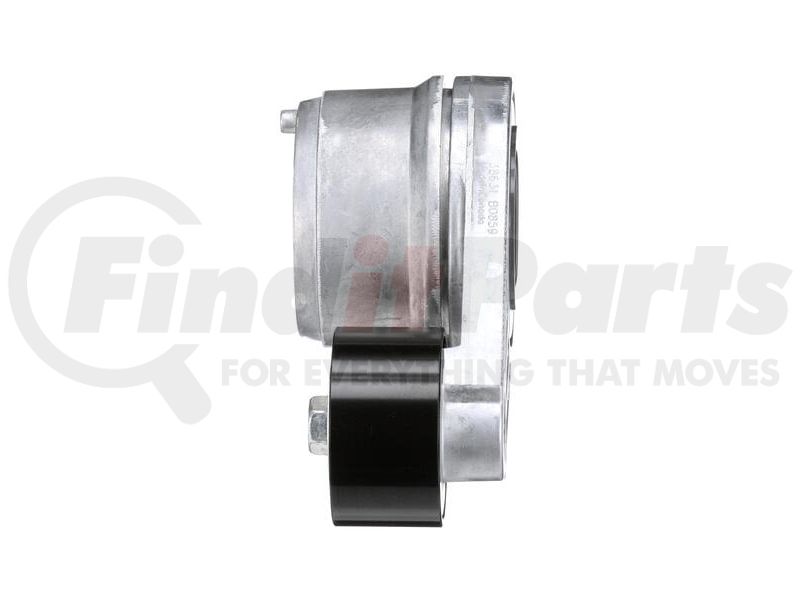

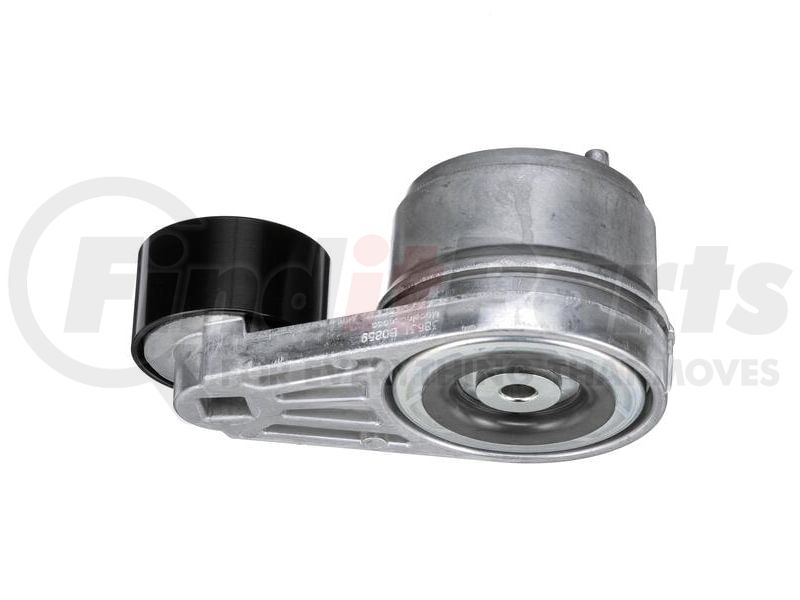

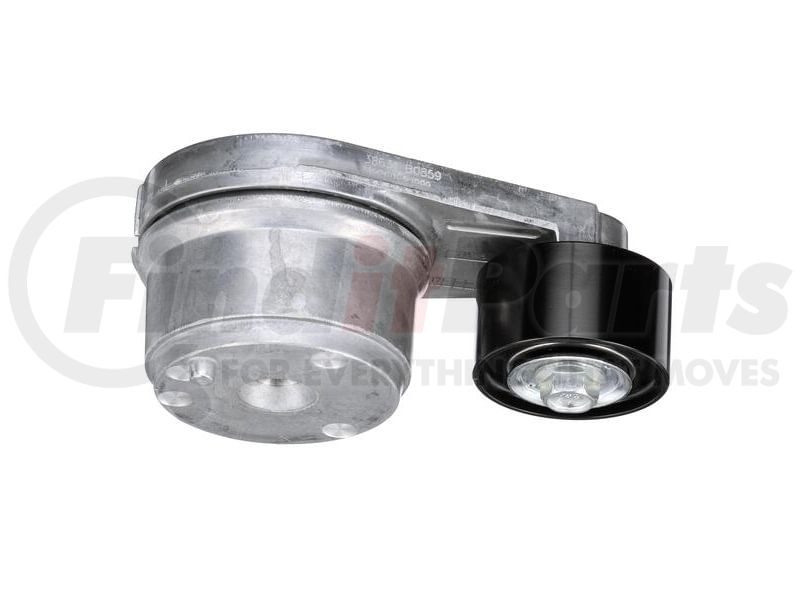

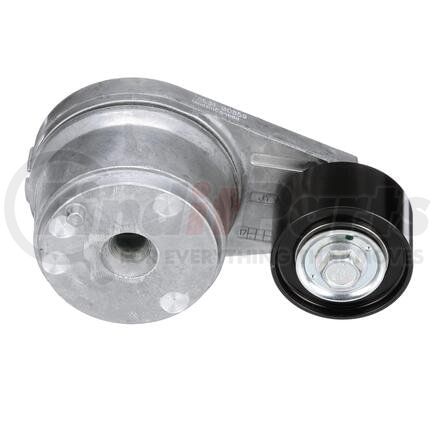

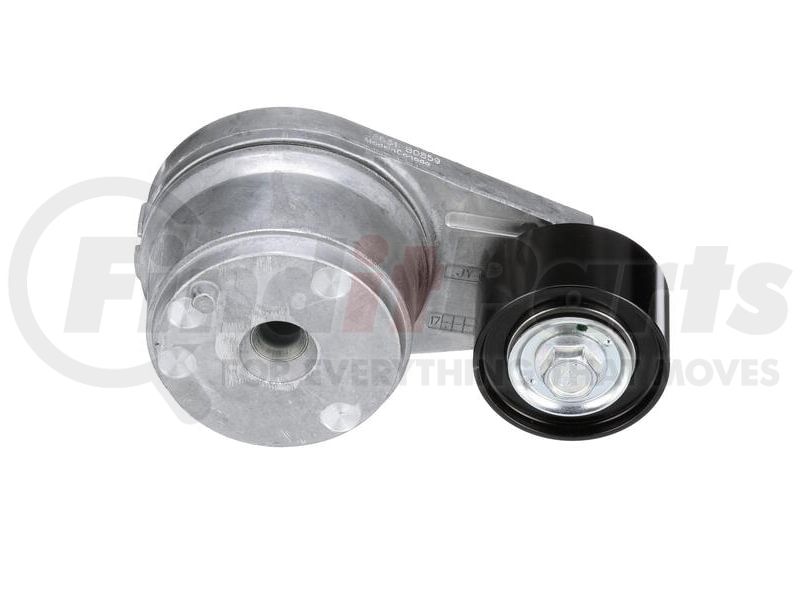

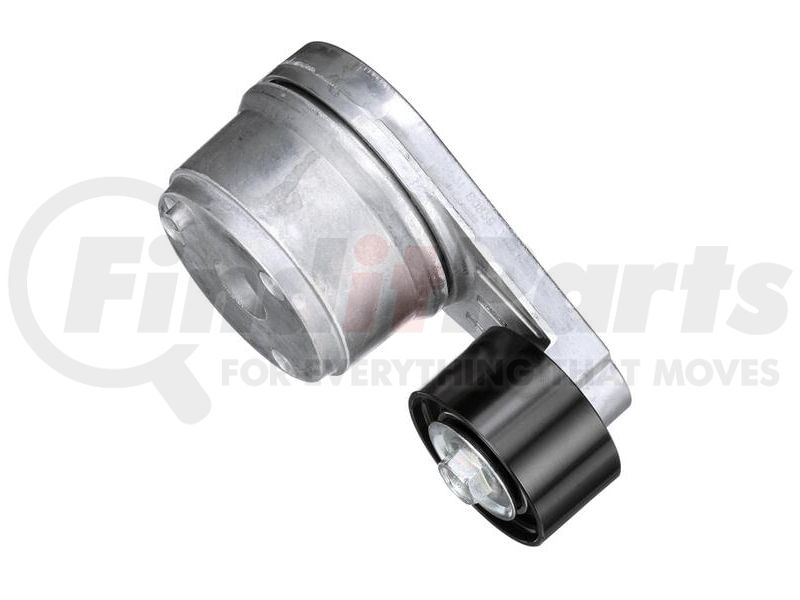

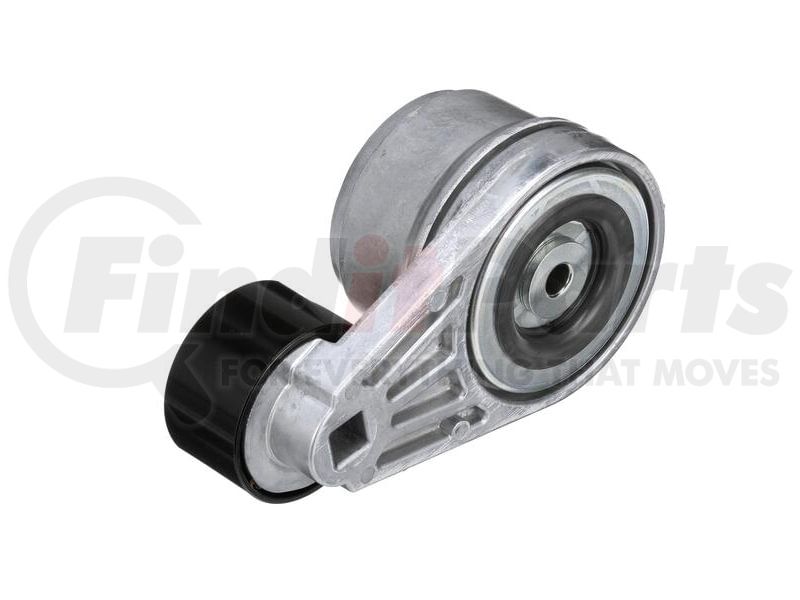

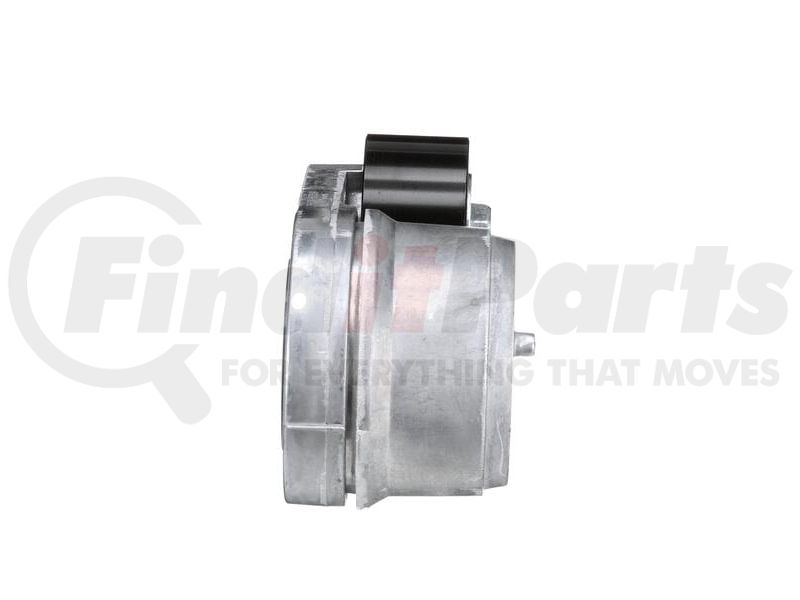

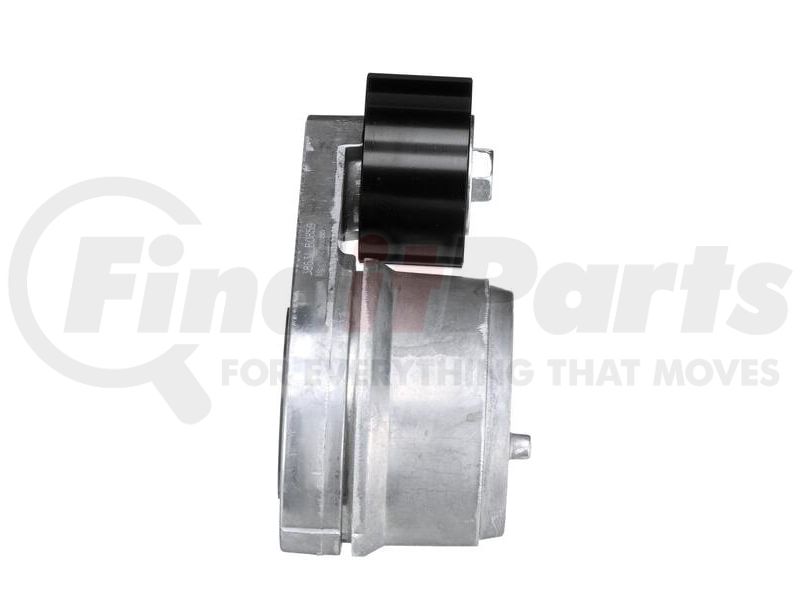

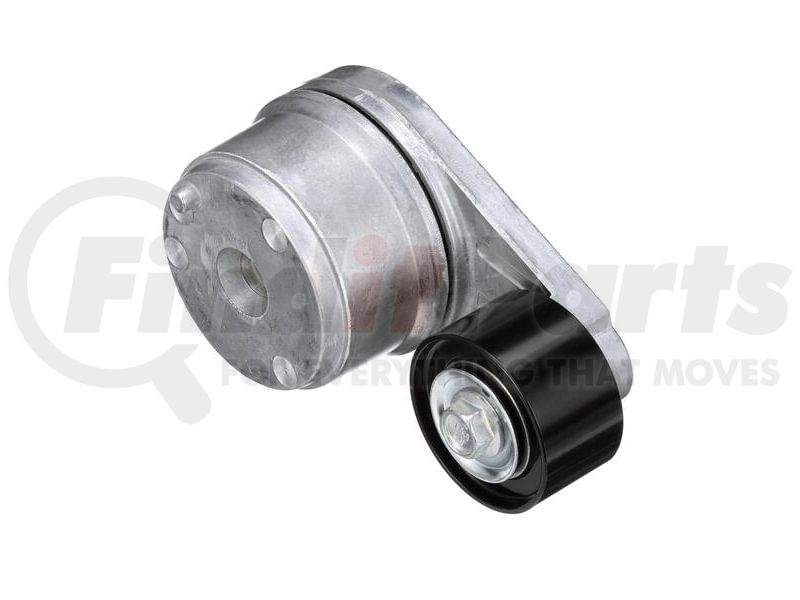

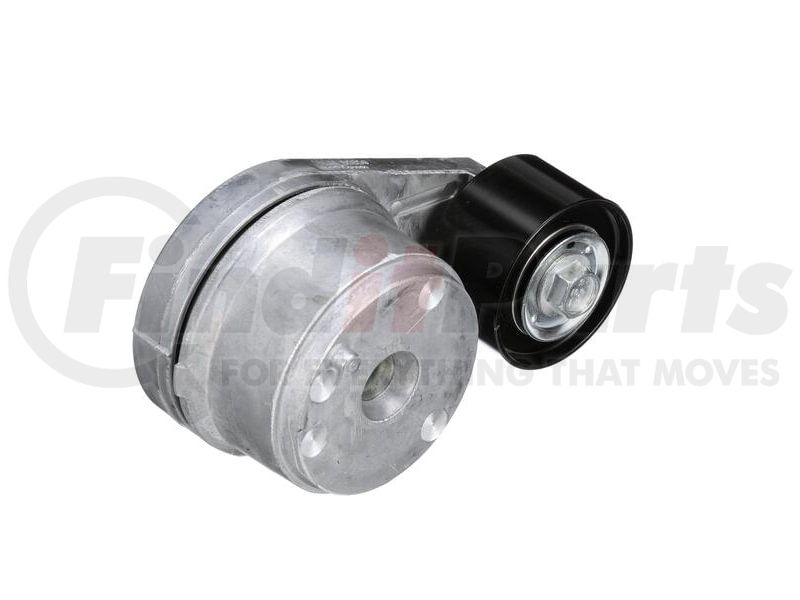

FleetRunner Heavy-Duty Automatic Belt Drive Tensioner
Application Summary
2010-07 Freightliner, Business Class M2, Cummins ISB Diesel, Tensioner Assy. - Fan, Alt. & A.C.
Features & Benefits
- Optimized components engineered for maximum strength and durability
- Patented design provides superior belt alignment and tension for improved drive efficiency and life
- Patented labyrinth seal prevents contamination of internal parts for maximum durability and service life
- Long-lasting steel pulleys with dust shields to protect internal bearings from contamination
- Double row bearings carry more load and last up to 3X longer than two individual bearings
- Chrome-silicone round torsion spring for less ?ex-fatigue than ?at-spring designs
- Patented damping mechanism provides maximum stability, reducing vibration and increasing the life of the belt, tensioner and other accessory drive components
GATES 38631 Specifications
Product Attributes
| Pulley Quantity | 1 |
| Groove Quantity | 0 |
| Material | Steel |
| Contact Surface | Smooth/Backside |
| Pulley 1 Flanged | No |
| Outside Diameter | 2.36 IN |
| Bearing Bore Inside Diameter | 1.18 IN |
| Width | 1.28 IN |
| Belt Type | V-Ribbed |
| Mounting Hole Quantity | 1 |
| Contents | Tensioner Assy. |
| Pulley 1 Groove Quantity | 0 |
| Outside Diameter 1 (in) | 2.36 |
| Outside Diameter 1 (mm) | 60 |
| Width 1 (in) | 1.28 |
| Width 1 (mm) | 32.5 |
| Bearing Bore Inside Diameter | 30 MM |
Additional Information
| Country of Origin (Primary) | CA |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| UPC | 00770075403470 |
| VMRS Code | 042003076 |
| UNSPSC | 26111805 |
GATES 38631 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 38631 |
| Dayco | 89114, 89474 |
| CARQUEST | 38631 |
| Cummins | 4937433, 5264111 |
| Tendeco | 910575 |
| Goodyear | 49590 |
| NAPA Belts/Hose | 38631 |
| Litens | 910575A |
GATES 38631 Fits Vehicles
- Peterbilt 337 (2010)
- Peterbilt 335 (2008-2010)
- Peterbilt 330 (2008-2010)
- Kenworth T270 (2009)
- Kenworth T170 (2008-2009)
- Peterbilt 325 (2008-2010)
- Kenworth T370 (2009)
- Freightliner B2 (2008-2009)
- Kenworth T300 (2007-2008)
- Freightliner MT55 (2008-2009)
- Freightliner MT45 (2008)
- Freightliner M2 106 (2007-2010)
- Ford F-750 (2008-2009)
- Ford F-650 (2008-2009)
- Blue Bird Vision School Bus (2008-2010)
- Sterling Truck Acterra (2008-2009)
- Blue Bird All American FE (2008-2010)
- Blue Bird All American RE (2008-2010)
- Sterling Truck LT9500 (2002)
- Sterling Truck L9500 (2002)
- Sterling Truck LT8500 (2002)
- Sterling Truck L8500 (2002)
GATES 38631 Cross References
We have 5 alternatives for the 38631 by GATES:
