Baer 4302517R - Baer Brakes 10.5" Classic Series Rear Brake Kit
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BAER part description
REAR CLASSIC BRAKE CONVERSION
Product Description

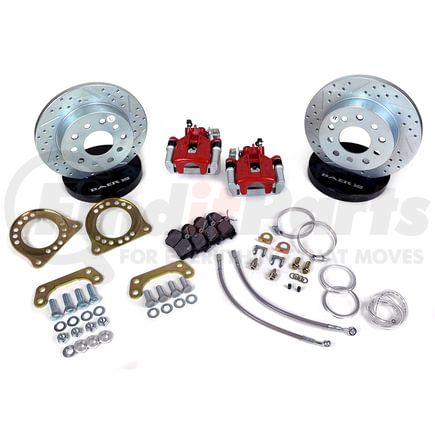

Baer Brakes 10.5" Classic Series Rear Brake Kit
Features & Benefits
- Modern Single-Piston Caliper w/Integral Park Brake
- Red Powder Coated Finish
- Slot, Dimpled, Zinc Plated Rotor
- Stainless Braided Brake Hoses
- Uses Common FMSI D0627 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**
Product Attributes
| Axle | Rear |
| Axle Flange | GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Box Count | 1 |
| Brake Hose DOT Approved | Yes |
| Brand | Baer Brakes |
| Caliper | 1 Classic |
| Caliper Color | Red |
| Category | Brakes |
| Disc Brake Caliper (Rear) Piston Quantity | 1 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | D0627 |
| Disc Brake Rotor (Rear) Construction | Solid |
| Disc Brake Rotor (Rear) Outside Diameter | 10.500 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/Non-Staggered Rear Shocks |
| Friction Material Composition | Ceramic |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | No |
| Min Wheel Dia (verify using template) | 14 IN |
| Part Type | Disc Brake Upgrade Kit |
| Product Line | Classic |
| Product Type | 10.5 Inch Classic Rear Brake Kit |
| Prop 65 (C, R or CR) | C |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/no | Yes |
| Rotor Diameter | 10.500 IN |
| Rotor Surface | SDZ |
| Rotor Thickness | .504 IN |
| Rotor type | 1-Piece |
| Solid Or Vented Type Rotor | Solid |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits applications with non-staggered rear shocks |
| Template | V120V |
| Title | Classic Series Rear Brake Kit |
| Warning | California Proposition 65 |
| Wheel Lug/Bolt Pattern | 5x4.50 |
Additional Information
| Warranty Special | Manufacture Limited 1 Year Warranty Warranty |
| Warranty Special UOM | TX |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708.30.50 |
| Harmonized Tariff Code (HTS) | 8708305090 |
| EAR99 | |
| UPC | 00844165054917 |
