RAYBESTOS 9223 Part Description
Manufacturer
Product Description

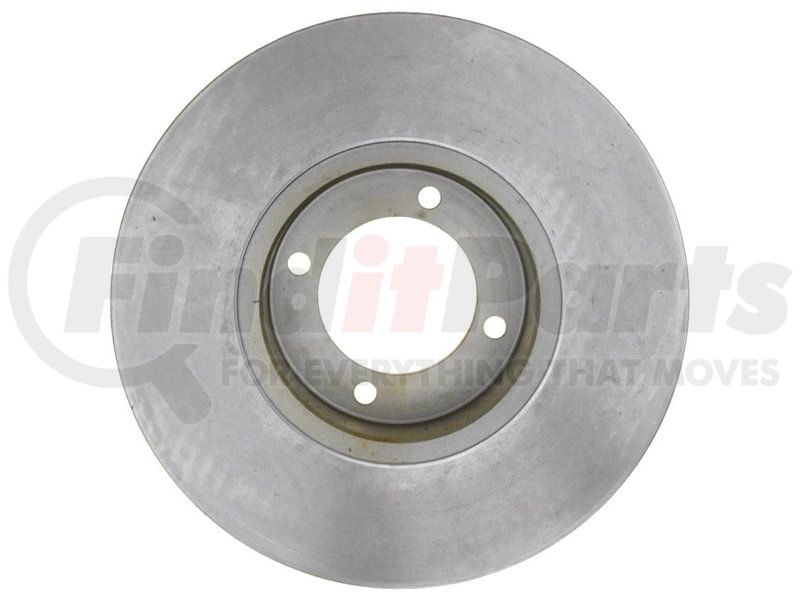

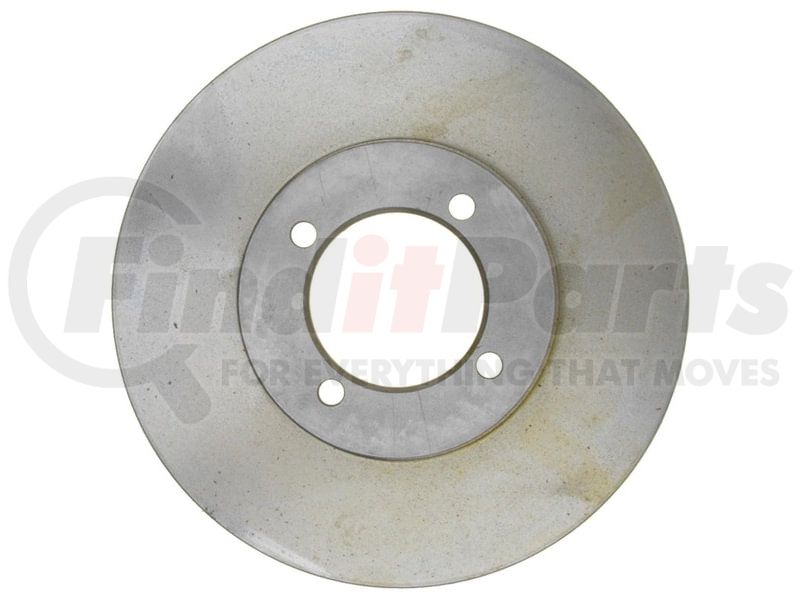

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 9223 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.875 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.452 IN |
| Mounting Bolt Hole Circle Diameter | 3.74 IN |
| Mounting Bolt Hole Diameter | 3.74 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.492 IN |
| Outside Diameter | 9.995 IN |
| Overall Height | 1.88 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 73 MM |
| Discard Thickness | 11.5 MM |
| Mounting Bolt Hole Circle Diameter | 95 MM |
| Mounting Bolt Hole Diameter | 95 MM |
| Nominal Thickness | 12.5 MM |
| Outside Diameter | 253.85 MM |
| Overall Height | 47.75 MM |
Additional Information
| Country of Origin (Primary) | CA |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999079879 |
RAYBESTOS 9223 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141254, YH141254 |
| American Remanufactured | 789-04015, 89-04015 |
| AutoZone | 3163, 3163DG |
| Autopart International | 50049 |
| Autospecialty | JBR162 |
| Axxis | 085-6020 |
| Beck/Arnley | 080-1983, 083-1983 |
| Bendix | 141254 |
| Brake Headquarters | BR04075 |
| Brake Pro | 4619223 |
| BrakeBest | 9223, 9223R, 9223RGS |
| Brembo | 08.4752.10, 25108 |
| CENTRIC | 121.42015 |
| CEW | 1163012 |
| California Drum & Rotor | 60639 |
| Casting Numbers | 210253-C, 31631, 325666 |
| Centric Parts | 120.42015, 121.42015, 126.42015SL, 126.42015SR |
| Century | 9223 |
| Dayton Walther | D4906, D7341 |
| Dura Corp | BR3163 |
| DuraGo | BR3163 |
| EIS Brakes | D9223 |
| Eurorotor | NI420 |
| Fratelli Poletti | 2909, 99YH-A |
| GREN | 31701 |
| Girling | GR649 |
| ITM Engine Components | 1600501 |
| Interbrakes | NS231P |
| International Parts Service | 8-8045 |
| Kelsey Hayes | 14906 |
| Lazorlite | L73-1064 |
| MCI | 4088 |
| Maremont | 7939223 |
| Midas | BR1376 |
| Mighty Distributing System | 3163 |
| Mountain Off-Road Enterprises | NR15 |
| Newtek Automotive USA | 3163 |
| Nissan | 40206U7600 |
| Qualis | 3163 |
| Qualitee International | 64-76-150 |
| Quality Brand | 3163 |
| Roadmates | 526509 |
| Rockhill | 3163 |
| Sears | 1782, 510462 |
| TRW | DF7702 |
| Teknomac | 29090 |
| Transparts | BR0115 |
| TruStar | 476150, R76150 |
| UAP | 3163 |
| Universal | 109630 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50288 |
| Vera | 3401691 |
| Wagner Brake | BD60639 |
| Winhere | YH1090 |
| Worldparts | W70-522 |
