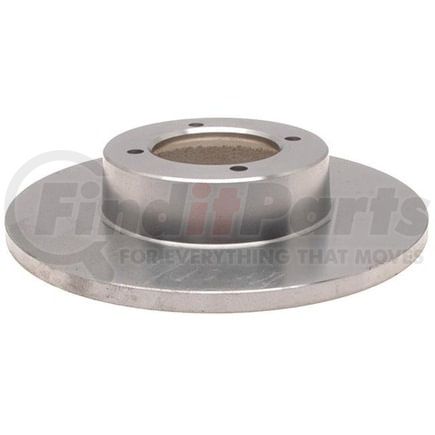

(888) 312-8812 Login SignupRAYBESTOS 9064 Raybestos Specialty - Street Performance Brake Rotor
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 9064 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 9064 Specifications
Product Attributes
| Center Hole Diameter | 3.189 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.413 IN |
| Mounting Bolt Hole Circle Diameter | 4.055 IN |
| Mounting Bolt Hole Diameter | 4.055 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.495 IN |
| Outside Diameter | 10.67 IN |
| Overall Height | 2.02 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 81 MM |
| Discard Thickness | 10.5 MM |
| Mounting Bolt Hole Circle Diameter | 103 MM |
| Mounting Bolt Hole Diameter | 103 MM |
| Nominal Thickness | 12.55 MM |
| Outside Diameter | 271 MM |
| Overall Height | 51.3 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999079671 |
RAYBESTOS 9064 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141097, YH141097 |
| American Remanufactured | 89-04011 |
| AutoZone | 3103 |
| Autospecialty | JBR151 |
| Axxis | 085-5290 |
| BAP Geon | 1600512 |
| Beck/Arnley | 083-0315 |
| Bendix | 141097 |
| BrakeBest | 9064, 9064R, 9064RGS |
| CENTRIC | 120.42011 |
| CEW | 1163002 |
| California Drum & Rotor | 97311 |
| Casting Numbers | 210152-C, 326040 |
| Centric Parts | 120.42011, 120.42011CRY, 121.42011, 126.42011CSL, 126.42011CSR, 126.42011SL, 126.42011SR, 127.42011CL, 127.42011CR, 127.42011L, 127.42011R, 128.42011CL, 128.42011CR, 128.42011L, 128.42011R |
| Certified Division | R12 |
| Dura Corp | BR3103 |
| Dynamic Friction Company | 604-67009 |
| EIS Brakes | D9064 |
| Girling | GR604 |
| International Parts Service | 8-8003 |
| Kelsey Hayes | 14851 |
| Lazorlite | L73-1404 |
| MAGMA PRODUCTS | PSR423002 |
| Midas | BR1098 |
| Mighty Distributing System | 3103 |
| Mopar | 3-1395 |
| Mountain Off-Road Enterprises | NR5 |
| Newtek Automotive USA | 3103 |
| Nissan | 40206E4101 |
| Qualis | 3103 |
| Qualitee International | 64-76-050 |
| Sanyo | NR5 |
| Teknomac | 28960 |
| Transparts | BR0110 |
| TruStar | 476050, R76050 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50094 |
| Vera | 3401378 |
| Wagner Brake | BD97056, BD97311 |
| Worldparts | W70-112 |
RAYBESTOS 9064 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 9064 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
RAYBESTOS 9064 Questions & Answers
No questions yet
Be the first to ask a question about this product!
