(888) 312-8812 Login SignupRAYBESTOS 76504R Raybestos R-Line Brake Rotor
Tap to view 1 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 76504R Part Description
Manufacturer
Product Description

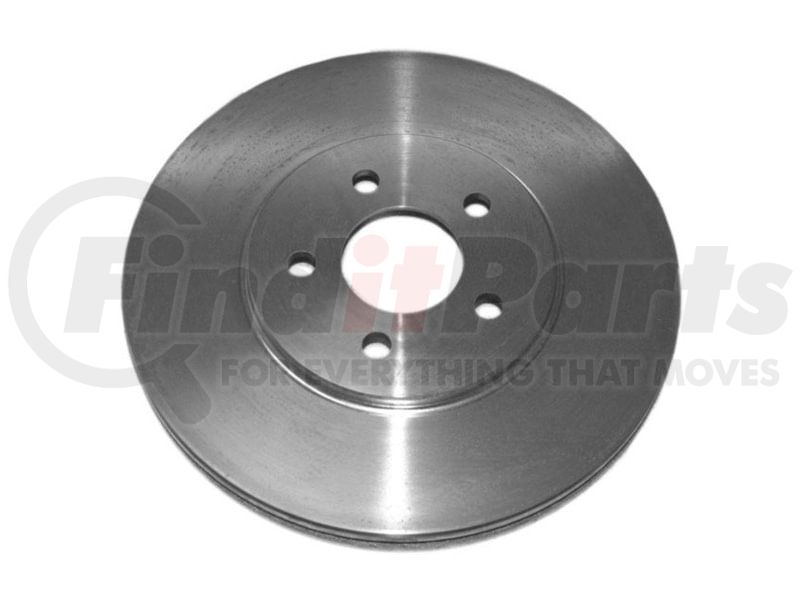

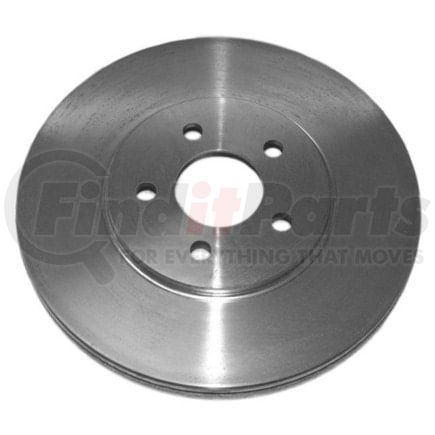

Raybestos R-Line Brake Rotor
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
Raybestos R-Line Brake Rotor
RAYBESTOS 76504R Specifications
Product Attributes
| Center Hole Diameter | 2.402 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.843 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.905 IN |
| Outside Diameter | 11.12 IN |
| Overall Height | 1.265 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 61 MM |
| Discard Thickness | 21.4 MM |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Nominal Thickness | 23 MM |
| Outside Diameter | 282.45 MM |
| Overall Height | 32.15 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366899 |
RAYBESTOS 76504R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 145043, YH145043 |
| AutoZone | 5361, 5361B |
| Autopart International | 25568 |
| Autospecialty | AR8342, AR8342E |
| Bendix | 145043 |
| Bosch | RBR5361 |
| Brake Headquarters | BR53299 |
| BrakeBest | 76504, 76504R, 76504RGS, 81-125457, BD125457 |
| Brembo | 09.8035.85 |
| Bridgestone | 7005020, 7005234 |
| CENTRIC | 120.63042, 320.63042, 121.63042 |
| Casting Numbers | 210652-C, 325173, 53611 |
| Centric Parts | 120.63042, 121.63042, 125.63042, 126.63042CSL, 126.63042CSR, 126.63042SL, 126.63042SR, 127.63042CL, 127.63042CR, 127.63042L, 127.63042R, 128.63042CL, 128.63042CR, 128.63042L, 128.63042R, 227.63042L, 227.63042R, 320.63042, 320.63042F |
| Chrysler | 04695186, 04695957, 4695186, 4695957 |
| Continental-ContiTech | CW23710 |
| Delphi | RB219 |
| Dura Corp | BR5361, BR5381 |
| DuraGo | BR5361, BR5381 |
| EIS Brakes | D17739 |
| GREN | 602102 |
| Guardian | 52-125457 |
| MAGMA PRODUCTS | PMR143046 |
| Midas | BR1983 |
| Mighty Distributing System | 5361 |
| Newtek Automotive USA | 5361 |
| Omnicraft | QBRR171 |
| Parts Master | P125457 |
| Promax | 14-5361 |
| Qualis | 5361, 5381 |
| Quality Brand | 5361 |
| Standard Rotors and Drums | 5361 |
| UAP | 5361 |
| Universal | 103049, 103342 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50864 |
| WAGNER | BD125457E, BD125457 |
| WORLDPAC | 1407-25568 |
| Wagner Brake | BD125457, SB76504 |
| Winhere | 442169, YH2169, 662382 |
RAYBESTOS 76504R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 76504R Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
RAYBESTOS 76504R Questions & Answers
No questions yet
Be the first to ask a question about this product!
