Need help? We're here!
(888) 312-8812 Login SignupRAYBESTOS 7050 Raybestos Specialty - Truck Brake Rotor
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 7050 Part Description
Manufacturer
Product Description

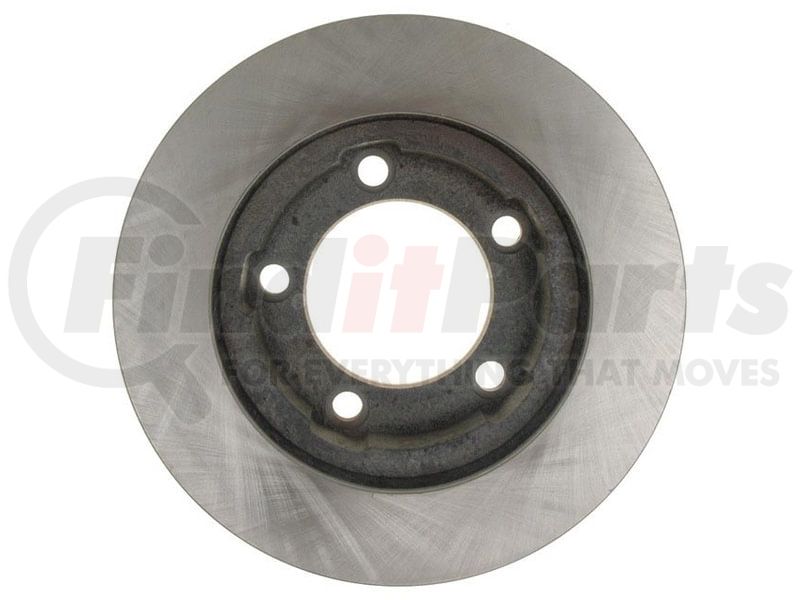

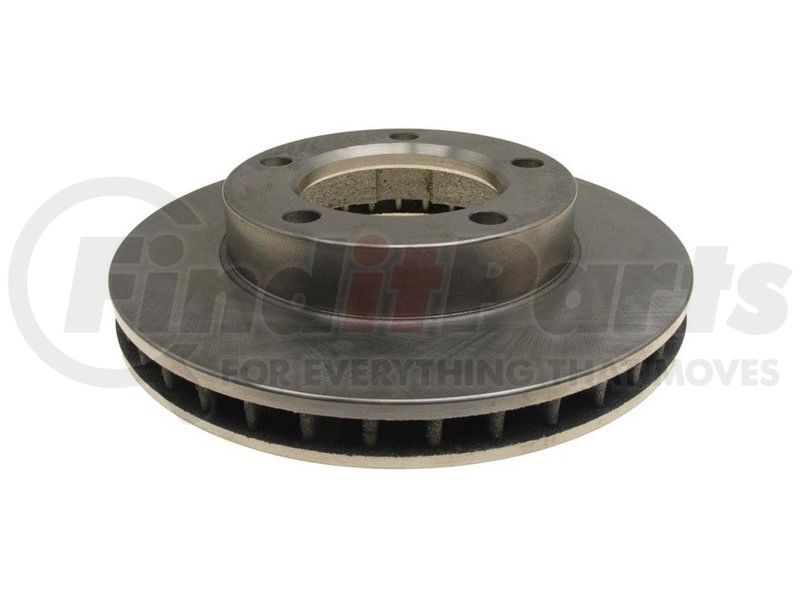

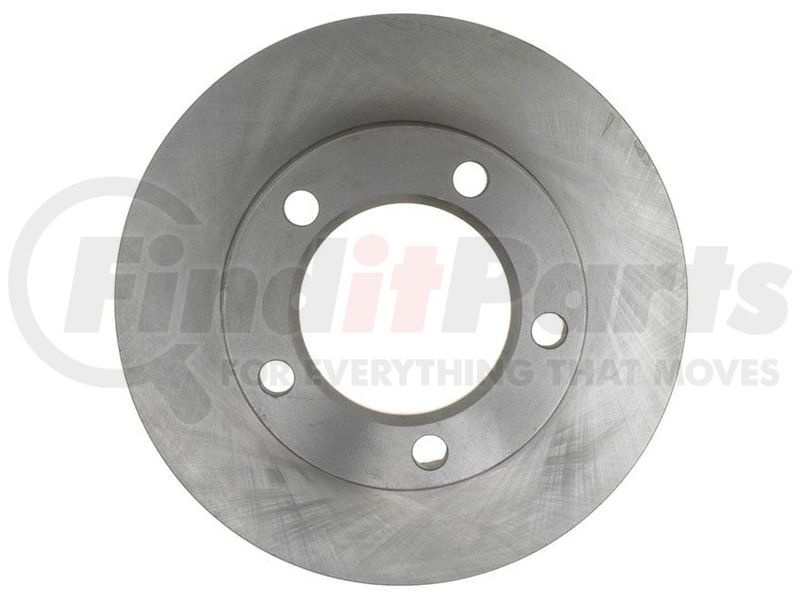

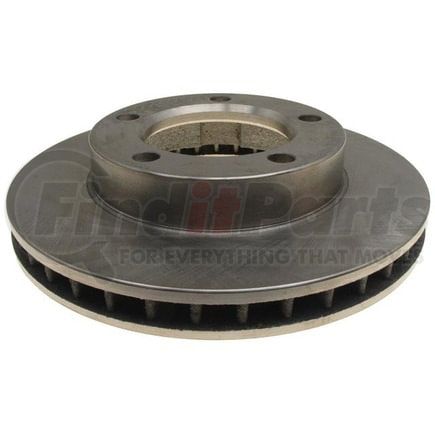

Raybestos Specialty - Truck Brake Rotor
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
Raybestos Specialty - Truck Brake Rotor
RAYBESTOS 7050 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.002 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.18 IN |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.245 IN |
| Outside Diameter | 11.64 IN |
| Overall Height | 2.595 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 101.65 MM |
| Discard Thickness | 29.95 MM |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Nominal Thickness | 31.6 MM |
| Outside Diameter | 295.65 MM |
| Overall Height | 65.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999079299 |
RAYBESTOS 7050 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 177-657 |
| Advance Auto Parts | 141289, YH141289 |
| AutoZone | 5324, 5324B, DL5324 |
| Autopart International | 25400 |
| Autospecialty | AR8705, AR8705E |
| Autoxtra | 807050, AX5324 |
| Bendix | 141289, R449237 |
| Brake Headquarters | BR53240 |
| Brake Pro | 4617050 |
| BrakeBest | 7050, 7050R, 7050RGS, 81-60609, BD60609 |
| Brembo | 27376 |
| CENTRIC | 121.67005 |
| California Drum & Rotor | 60609 |
| Casting Numbers | 103418, 210323-C, 325149, 4675, 53241 |
| Centric Parts | 120.67005, 121.67005, 126.67005CSL, 126.67005CSR, 126.67005SL, 126.67005SR, 127.67005CL, 127.67005CR, 127.67005L, 127.67005R |
| Century | 7050 |
| Chrysler | 04137762 |
| Dayton Walther | D4728, D4732 |
| Delphi | RB594 |
| Dura Corp | BR5324 |
| DuraGo | BR5324 |
| EIS Brakes | D17050, D17072 |
| Euclid | E-9237 |
| Eurorotor | 5324 |
| GREN | 612502 |
| Guardian | 52-60609 |
| Gunite | G14670 |
| Hollander | 1560 |
| Kelsey Hayes | 14670 |
| Meritor | R449237 |
| Midas | BR1431, BR1440 |
| Mighty Distributing System | 5324 |
| Monroe Brakes | BD60609 |
| Newtek Automotive USA | 5324 |
| PRONTO | BR5324 |
| Parts Master | P60609 |
| Pep Boys | 5324G |
| Promax | 14-5324 |
| Qualis | 5324 |
| Quality Brand | 5324 |
| Roadmates | 526085 |
| Sears | 1785 |
| Standard Rotors and Drums | 5324 |
| UAP | 5324 |
| Universal | 103240 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50219 |
| WAGNER | BD60609 |
| Wagner Brake | BD60609 |
| Winhere | 442154, YH2154 |
RAYBESTOS 7050 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 7050 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
RAYBESTOS 7050 Questions & Answers
No questions yet
Be the first to ask a question about this product!
