RAYBESTOS 7013 Part Description
Manufacturer
Product Description

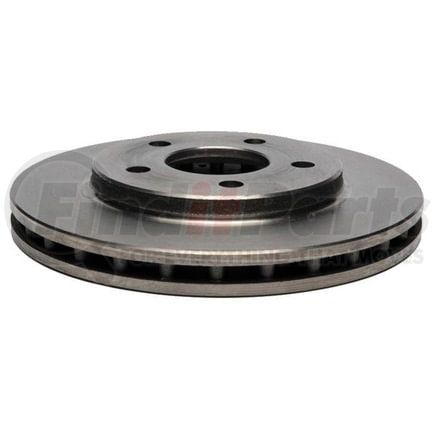

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 7013 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.404 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.882 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Outside Diameter | 9.415 IN |
| Overall Height | 1.506 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 61.05 MM |
| Discard Thickness | 22.4 MM |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 100 MM |
| Nominal Thickness | 24 MM |
| Outside Diameter | 239.15 MM |
| Overall Height | 38.25 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999050267 |
RAYBESTOS 7013 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141380, YH141380 |
| American Remanufactured | 789-32018, 89-32018 |
| AutoZone | 5331, 5331B, DL5331 |
| Autopart International | 25024 |
| Autospecialty | AR8318, AR8318E |
| Autoxtra | 61961, 807013, AX5331 |
| Bendix | 141380 |
| Brake Headquarters | BR53310 |
| Brake Pro | 4617013 |
| BrakeBest | 7013, 7013R, 7013RGS, 81-61961 |
| Brembo | 09.7892.85, 27053 |
| Bridgestone | 7033898 |
| CENTRIC | 121.63018 |
| California Drum & Rotor | 61961 |
| Casting Numbers | 210256-C, 325156, 4668, 53311, 617013 |
| Centric Parts | 120.63018, 121.63018 |
| Century | 7013, 7047 |
| Chrysler | 04313758, 04383961, 4313758, 4383961 |
| Dayton Walther | D5031 |
| Delphi | RB226 |
| Dura Corp | BR5331 |
| DuraGo | BR5331 |
| EIS Brakes | D17070 |
| Eurorotor | 5331 |
| Fade Free | 60829, 61961 |
| GREN | 601202 |
| Guardian | 52-61961 |
| Hollander | 1214 |
| Kelsey Hayes | 14711 |
| Midas | BR1433 |
| Mighty Distributing System | 5331 |
| Newtek Automotive USA | 5331 |
| PRONTO | BR5331 |
| Parts Master | P61961 |
| Promax | 14-5331 |
| Qualis | 5331 |
| Qualitee International | 64-91-690 |
| Quality Brand | 5331 |
| Roadmates | 526078 |
| Rockhill | 5331 |
| Sears | 17801 |
| Standard Rotors and Drums | 5331 |
| TruStar | 491690, R91690 |
| UAP | 5331 |
| Ultra Brake | 5331 |
| Universal | 103310 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50340 |
| Varga Brakes | RCDI00205 |
| WAGNER | BD61961 |
| Wagner Brake | BD60829, BD61961, SB7013 |
| Winhere | 442159, YH2159 |
