RAYBESTOS 980778 Part Description
Manufacturer
Product Description

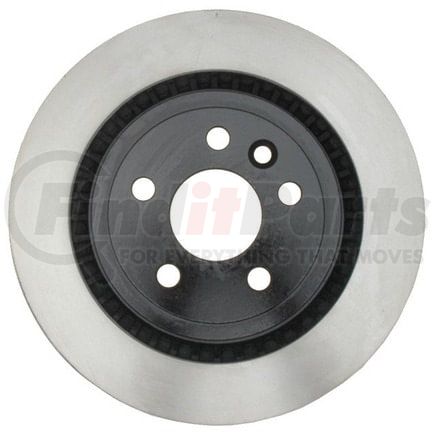

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2017-2010 Volvo XC60 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980778 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.416 IN |
| Inside Diameter | 213.75 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.617 IN |
| Mounting Bolt Hole Diameter | 15.65 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22 MM |
| Outside Diameter | 11.89 IN |
| Outside Diameter | 302 MM |
| Overall Height | 1.998 IN |
| Overall Height | 50.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352822906 |
RAYBESTOS 980778 Cross References
| Brand | Part Number |
|---|---|
| 31277357, 312773570 | |
| ADVANCE AUTO PARTS | 290603, YH277357, YH277357C, YH277357P, YH290603 |
| ATE BRAKE PRODUCTS | 422261, SP22261 |
| AUTOXTRA | AX900994 |
| AUTOZONE | 79904, 79904DG |
| Advance Auto Parts | YH290603HC, YH290603P |
| BOSCH | 52011386 |
| BRAKEBEST | 52011386, 980778, 980778R, 980778RGS |
| Brembo | 09.B026.11 |
| CENTRIC | 120.39047, 120.39047CRY, 121.39047, 125.39047, 125.39047CRY, 126.39047CSL, 126.39047CSR, 126.39047SL, 126.39047SR, 127.39047L, 127.39047R, 128.39047CL, 128.39047CR, 128.39047L, 128.39047R, 320.39047, 320.39047C |
| Centric Parts | 120.39047, 120.39047CRY, 121.39047, 125.39047, 125.39047CRY, 126.39047CSL, 126.39047CSR, 126.39047SL, 126.39047SR, 127.39047L, 127.39047R, 128.39047CL, 128.39047CR, 128.39047L, 128.39047R, 320.39047C, 320.39047, 320.39047F |
| DURA CORP | BR34421, BR900994 |
| DuraGo | BR900994 |
| MAGMA PRODUCTS | PSR605043 |
| NEOTEK | 106489GF |
| NEWTEK AUTOMOTIVE | 34421 |
| Newtek Automotive USA | 34421 |
| POWERSTOP | EBR1284EVC |
| PROMAX | 14-34421 |
| PRONTO | BR900994 |
| Qualis | 45465 |
| TopNotch | TN980778GEO |
| UAP | R39047 |
| VAICO | V9580016 |
| VOLVO | 31277357, 312773570, 31471033, 314710330, 31410569 |
| WINHERE | 6621083 |
| WORLDPAC | 1407-290603, 1427-530051 |
| Wagner Brake | BD180479E |
RAYBESTOS 980778 Fits Vehicles
- Volvo XC60 (2010-2017)
