MERITOR 3202E9391 Drive Axle Shaft Assembly, 7.00 in. Bolt Circle Diameter, 2.25 in. Body Diameter, 0.73 in. Hole Size

Name: Meritor 3202E9391 Drive Axle Shaft Assembly, 7.00 in. Bolt Circle Diameter, 2.25 in. Body Diameter, 0.73 in. Hole Size
SKU: 3202e9391
Price: 562.49 USD
Availability: InStock
Rating: 5.0 (1 reviews)

★★★★★ (1)

3202E9391 by MERITOR - Drive Axle Shaft Assembly, 7.00 in. Bolt Circle Diameter, 2.25 in. Body Diameter, 0.73 in. Hole Size

MSRP: $1,199.88

$562.49

Save $637.39

Limited Availability

Due to limited availability, we will confirm your order and notify you within 1 business day.

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

Orders placed over the weekend will be processed the next business day.

MERITOR 3202E9391 Part Description

Manufacturer

MERITOR

Product Description

Drive Axle, Axle Shaft

Features & Benefits

Forty-six splines connect the shaft to the matching axle side
Flange dimensions help secure the drive-end mounting surface
Shaft body transfers torque through the axle housing
Bolt circle detail guides the wheel-end connection layout
Drive axle service focuses on power transfer through the shaft

Meritor Drive Axle Shaft

When axle service calls for a defined shaft profile, the Meritor Drive Axle Shaft fits a 2.25-inch body diameter, 7.00-inch bolt circle, 8.38-inch flange, 37.78-inch length, and 46-spline layout. Power from the differential travels through the shaft before reaching the wheel end, so the spline count and flange details guide how it joins the axle assembly. Its long shaft body carries torque through the axle housing while the flange side secures the outside connection point. The Meritor 3202E9391 places the drive connection around the stated axle measurements.

VMRS Code

022-002-001

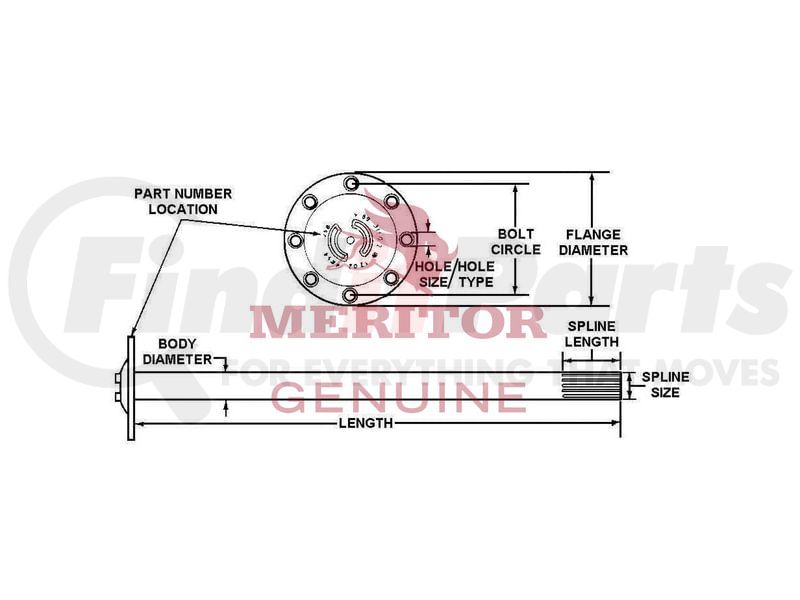

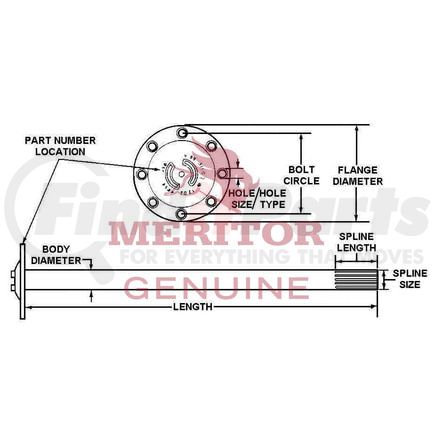

MERITOR 3202E9391 Specifications

Product Attributes

Aftermarket Extended Warranty - General	3 Years / 300K Miles
Body Diameter	2.25 in.
Bolt Circle Diameter	7.00 in.
Brand	Meritor
Flange Diameter	8.38 in.
Hole Count	8
Hole Size	0.73 in.
Hole Type	Taper
Length	37.78 in.
Lube Holes	No
Pallet Quantity	300
Puller Holes	No
Spline Count	46
Spline Length	3.03 in.
Spline Size	2.35 in.
Weight	52.00
Shaft Length	37.78 in.

MERITOR 3202E9391 Cross References

Brand	Part Number
	TDA3202E9391, QC000391, 1117889, 1677765C1, 3202E9391RI, 82353202E9391, AS1205, ATI3202E9391, E9HZ4234R

MERITOR 3202E9391 Customer Reviews

5.0 out of 5

★★★★★

(1)

5.0

★★★★★

out of 1 reviews

100% recommend this product

★★★★★

Excellent

By FinditParts Customer • April 20, 2026

Easy to order and a fair price

Was this review helpful?

Yes (0)

MERITOR 3202E9391 Manufacturer Information

Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
