HELLA 002952811 Part Description
Manufacturer
Product Description

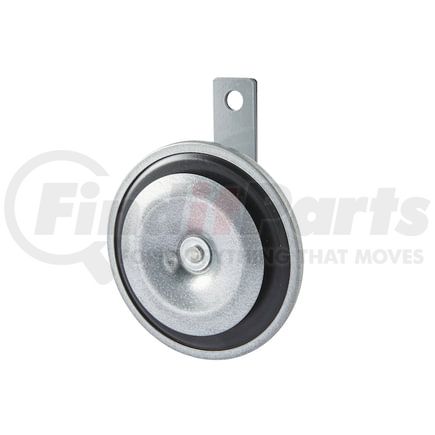

HELLA Horn 002952811
Features & Benefits
- Black diaphragm and galvanized metal
- Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
- Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
- Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
- Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
- Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
HELLA 002952811 Specifications
Product Attributes
| Power Consumption [w] | 66 |
| Overall Height [mm] | 122 |
| Test Mark | ECE |
| Voltage [V] | 12 |
| Diameter [mm] | 97 |
| Temperature Range From [°c] | -40 |
| Protection Type (IP Code) | 5K4K |
| Supplementary Article/Info 2 | with E quality seal |
| Signal | High Tone |
| Frequency Range [hz] | 400 |
| Sound Level [dB(A)] | 105 |
| Depth [mm] | 54 |
| Temperature Range To [°c] | 60 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Mounting Type | Flat Plug-in Connector |
| Housing Colour | Grey |
| Homologation | ECE-R28 |
| Frequency Range To [hz] | 400 |
| Includes | (1) Universal Mounting Bracket |
| Protection | IP54 |
| Depth [in] | 2.13 |
| Power Consumption [a] | 5.5 |
| Temperature range to [°F] | 140 |
| Registration Type | ECE Approved |
| Ip Rating | IPX9K |
| Grade Type | Standard Replacement |
| California Proposition 65 Required | No |
| Quantity | 1 |
| Temperature range from [°F] | -40 |
| Housing Color | Gray |
| Voltage [VDC] | 12 |
| Diameter [in] | 3.82 |
| Overall Height [in] | 4.8 |
| Wattage [W] | 66 |
| Operating Mode | Electric |
| Supplementary Article/Supplementary Info 2 | with E Quality Seal |
| Assy/Disassy by Qualified Personnel Required! | . |
| ECE Regulation | R28 |
| Voltage | 12.00 2H |
| Color | Black / Gray |
| Decibel Rating | 105.00 |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Connector Quantity | 1 |
| Mount Type | Bracket Mounting |
| Terminal Quantity | 2 |
| Mounting Bracket Included | Yes |
Additional Information
| Harmonized Tariff Code (HTS) | 8512300020 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | IN |
| UPC | 04082300279375 |
HELLA 002952811 Cross References
| Brand | Part Number |
|---|---|
| 66006, DFP24ZPXQ50052CP | |
| BMW | 1 367 310, 1 367 312, 61 33 1 367 310, 61 33 1 367 312 |
| Bosch | 0 320 043 011, 0 986 320 133, 0 986 320 133 090, 0 986 320 136 090, 0 986 320 139, 0 986 320 139 090, 0 986 320 140 090 |
| Ford | 1 825 723, 1 831 441 |
| Holder | 0001801206, 021098 |
| John Deere | AL 12 135, AZ 12 135 |
| Mercedes-Benz | 001 542 86 20, 002 542 04 20, 002 542 79 20, 003 542 07 02, 003 542 07 20, 003 542 13 20, 003 542 17 20, 003 542 28 20, 003 542 31 20, 003 542 34 20, A 001 542 86 20, A 002 542 04 20, A 002 542 79 20, A 003 542 07 02, A 003 542 07 20, A 003 542 13 20, A 003 542 17 20, A 003 542 28 20, A 003 542 31 20, A 003 542 34 20 |
| N/A | 2220011, 628106, 628102, 589680, 0 986 320 140, 0 986 320 136, 086 7508, 867508, 945995, Y 253 101 1, F 238 900 020 041, 72481193, 1 678 404 M1, 4 355 332 M1, 4153088A, 216547, 3600136023, 6108843M1, 5050022200., 966527, 8 077 831 9, 11802744-0, 80778319-0, 90-00553-9, 40365, 20850, 22909, 2590-99-802-1954, 5050022200, 4355332M1, Y253 101 1, 000 1801 206, X86097518000, 589 680, 2310-4015-00-A, V20-77-0004, V10-77-0916, 56370046, 1000156059, 021.654.7, 4767 5, 100417-11D, 091784-00, 1579727, 100 951 0007, 1 678 404 MO1A, 100417-11D_100, 0071729.2 |
| Opel | 09255071, 12 28 057 |
| Volkswagen | 111 951 213 D, 411 951 213 |
| Volvo | 1 180 274 4 |
