HELLA 007794021 Part Description
Manufacturer
Product Description

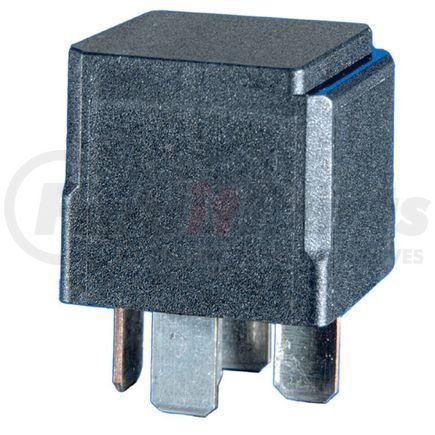

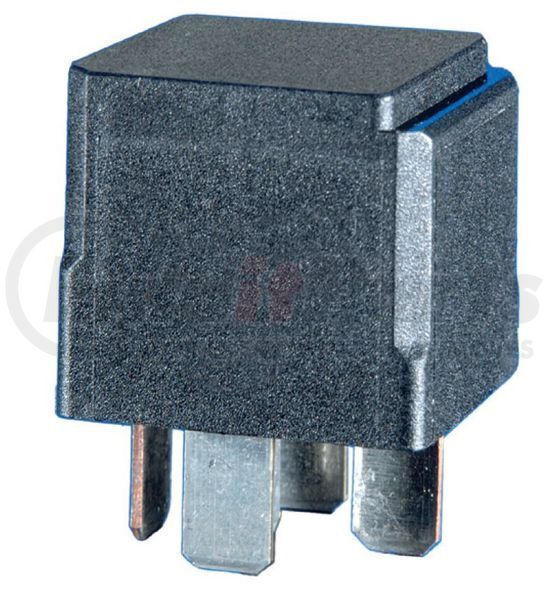

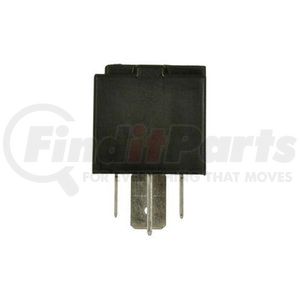

HELLA Micro Plug Relay 007794021
Features & Benefits
- Provides consistent switching of high-current circuits for reliable electrical system operation in vehicles.
- Ensures dependable performance in extreme environments with an operating temperature range suitable for demanding conditions.
- Minimizes electromagnetic interference in sensitive systems with integrated resistor or diode suppression protection.
- Simplifies installation and replacement tasks with a standardized pin connectors designed for multiple automotive functions.
- Offers universal compatibility, ensuring seamless integration with most modern vehicles' electrical systems.
HELLA 007794021 Specifications
Product Attributes
| Temperature Range [°c] | 80 |

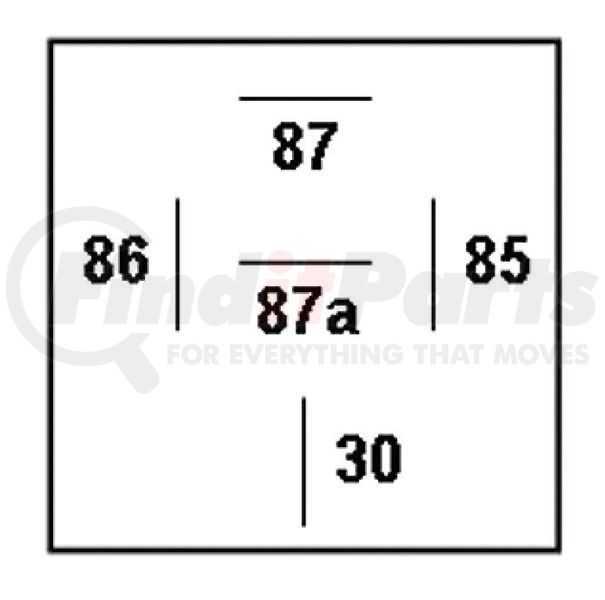

| Number of Pins | 5 |
| Ohmic Load [a] | 30 |
| Capacitive Load [a] | 20 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Voltage [V] | 12 |
| Colour | Black |
| Relay function | ESP |
| Supplementary Article/Supplementary Info | without Holder |
| Combi Switch Function | Normally Closed Contact |
| Supplementary Article/Info 2 | with resistor |
| Has the same colour as the orginal part | Brown |
| SVHC | 7439-92-1; Lead |
| for OE number | 90491314 |

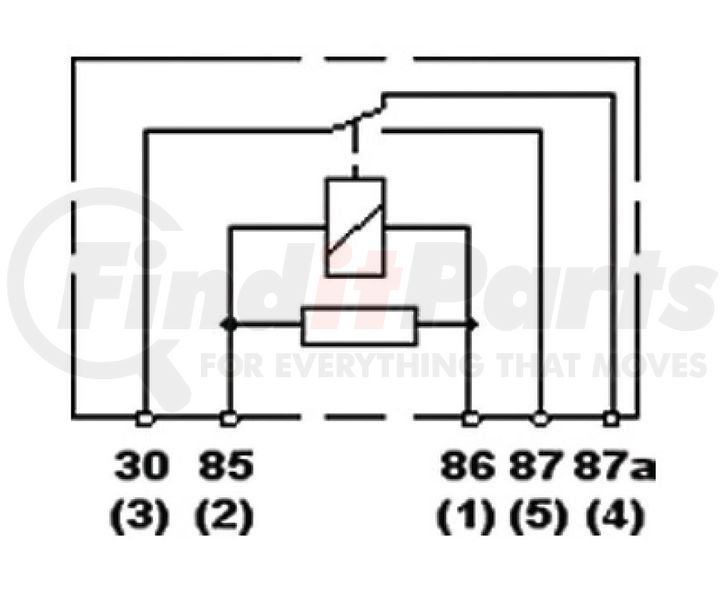

| Wiring Diagramme | W2 |
| Protection Type (IP Code) | 54 |
| Plug Type ID | B1 |
| Capacity at 12V | 20/30A |
| Inductive Load [a] | 5 |
| California Proposition 65 Required | No |
| Color | Black |
| Voltage [VDC] | 12 |
| Wiring Diagram | W2 |
| Ip Rating | 54 |
| Original Part Color | Brown |
| Supplementary Article/Supplementary Info 2 | with Resistor |
| Assy/Disassy by Qualified Personnel Required! | . |
| Temperature range [°F] | 176 |
| Voltage | 12.00 2H |
| Continuous Duty | Yes |
| Terminal Type | Blade |
| Terminal Quantity | 5 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Cover Material | Aluminum |
| Heatsink Protected | Yes |
| Amperage Rating | 30.00 68 |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8536410050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 04082300078695 |
HELLA 007794021 Cross References
| Brand | Part Number |
|---|---|
| Altrom Group | 002 542 74 19 |
| Audi | 2E0 937 099 |
| Bosch | 0 332 204 101, 0 332 204 103, 0 332 204 201, 0 332 209 137, 0 332 209 150, 0 332 209 151, 0 986 332 041, 0 986 AH0 625 |
| Jaguar | 27DAC 7687 |
| Mercedes-Benz | 000 545 55 05, 000 545 83 05, 000 821 01 63, 000 982 81 23, 000 982 83 23, 001 542 92 19, 002 542 14 19, 002 542 74 19, 002 542 89 19, 002 545 14 19, 003 542 10 19, 003 545 27 05, 003 545 86 05, 004 545 04 05, 005 455 55 05, A 000 545 55 05, A 000 545 83 05, A 000 821 01 63, A 000 982 81 23, A 000 982 83 23, A 001 542 92 19, A 002 542 14 19, A 002 542 74 19, A 002 542 89 19, A 002 545 14 19, A 003 542 10 19, A 003 545 27 05, A 003 545 86 05, A 004 545 04 05, A 005 455 55 05 |
| N/A | 23 1244, 4272432M1, 9 000 032 44, 87329426, 4 14001 6, 20 201 000, 75 613 156, 1000193647, 1082-000018-00, 611 008, 166009, 890008530, 225190, RM13977251, 4 272 432 M1 |
| Opel | 1238307, 13500119, 6238515, 6238564, 90491314, 90543014 |
| Valeo | 643501, 643512 |
| Vauxhall | 1238307, 13500119, 6238515, 6238564, 90491314, 90543014 |
| Volkswagen | 2E0 937 099 |
| Volvo | RM13977251 |
| Volvo Truck | RM13977251 |
| smart | 000 545 55 05, 000 545 83 05, 000 821 01 63, 000 982 81 23, 000 982 83 23, 001 542 92 19, 002 542 14 19, 002 542 74 19, 002 542 89 19, 002 545 14 19, 003 542 10 19, 003 545 27 05, 003 545 86 05, 004 545 04 05, 005 455 55 05, A 000 545 55 05, A 000 545 83 05, A 000 821 01 63, A 000 982 81 23, A 000 982 83 23, A 001 542 92 19, A 002 542 14 19, A 002 542 74 19, A 002 542 89 19, A 002 545 14 19, A 003 542 10 19, A 003 545 27 05, A 003 545 86 05, A 004 545 04 05, A 005 455 55 05 |
