HELLA 007794031 Part Description
Manufacturer
Product Description

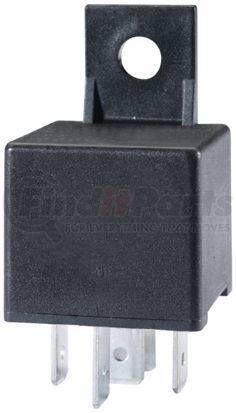

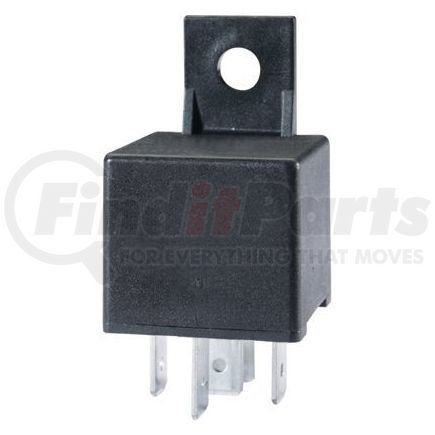

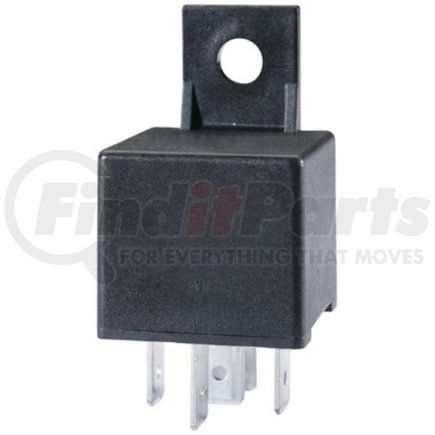

HELLA Micro Plug Relay 007794031
Features & Benefits
- Provides consistent switching of high-current circuits for reliable electrical system operation in vehicles.
- Ensures dependable performance in extreme environments with an operating temperature range suitable for demanding conditions.
- Minimizes electromagnetic interference in sensitive systems with integrated resistor or diode suppression protection.
- Simplifies installation and replacement tasks with a standardized pin connectors designed for multiple automotive functions.
- Offers universal compatibility, ensuring seamless integration with most modern vehicles' electrical systems.
HELLA 007794031 Specifications
Product Attributes
| Ohmic Load [a] | 20 |
| Number of Pins | 5 |
| Temperature Range [°c] | 80 |
| Voltage [V] | 12 |
| Capacitive Load [a] | 30 |
| Wiring Diagramme | W2 |
| Combi Switch Function | Normally Closed Contact |
| Colour | Black |
| Inductive Load [a] | 5 |
| Capacity at 12V | 20/30A |
| Plug Type ID | B1 |
| Protection Type (IP Code) | 54 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Supplementary Article/Info 2 | with resistor |
| Supplementary Article/Supplementary Info | with Holder |
| SVHC | 7439-92-1; Lead |
| Supplementary Article/Supplementary Info 2 | with Resistor |
| Wiring Diagram | W2 |
| Temperature range [°F] | 176 |
| Ip Rating | 54 |
| Assy/Disassy by Qualified Personnel Required! | . |
| California Proposition 65 Required | No |
| Color | Black |
| Voltage [VDC] | 12 |
| Voltage | 12.00 2H |
| Continuous Duty | Yes |
| Terminal Type | Blade |
| Terminal Quantity | 5 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Cover Material | Plastic |
| Amperage Rating | 20.00 68 |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8536410050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 04082300078701 |
HELLA 007794031 Cross References
| Brand | Part Number |
|---|---|
| Bosch | 0 332 204 125, 0 332 209 138, 0 332 209 150 |
| John Deere | AL 15 0015, WZ2605102 |
| N/A | 27340, 135100, 20 201 100, 5358170103, 3 615 652 M1, 11703280 |
