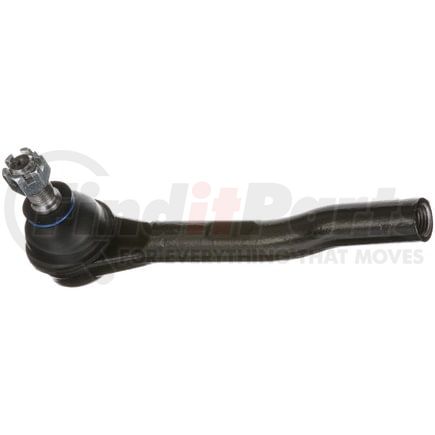

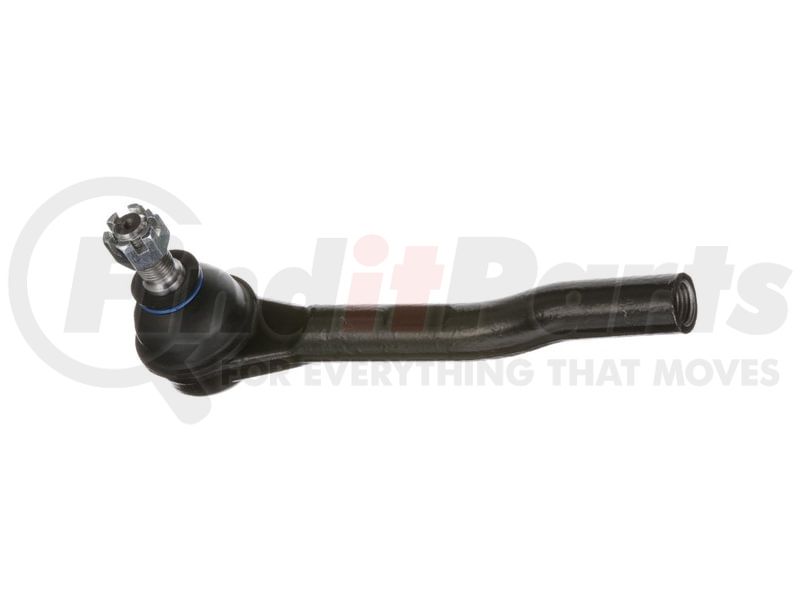

DELPHI TA3380 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Tie Rod End
DELPHI TA3380 Specifications
Product Attributes
| Length | 190.00 MM |
| Color | Black |
| Shank Length | 15.10 MM |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Stud Length | 15.10 MM |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 42 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12.00 MM |
| Height | 65.00 MM |
| Grade Type | Standard Replacement |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.5 lb |
| Cone Outside Diameter | 15.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 54.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Position(s) | Front Left Outer |
| Shank Length | 0.594 IN |
| Stud Length | 0.594 IN |
| End 2 Thread Diameter | 0.472 IN |
| Cone Outside Diameter | 0.594 IN |
| Length - Stud Center to End | 2.146 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604390399 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA3380 Cross References
| Brand | Part Number |
|---|---|
| N/A | 101-8437, ES801389, 53560-T7J-003, MS60660 |
DELPHI TA3380 Fits Vehicles
- Honda HR-V (2016-2021)
