RAYBESTOS 780459R2 Part Description
Manufacturer
Product Description

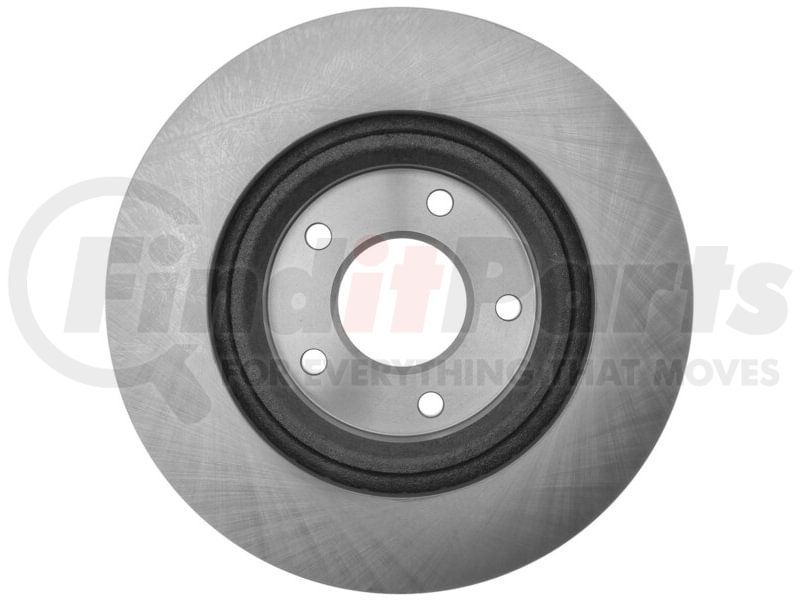

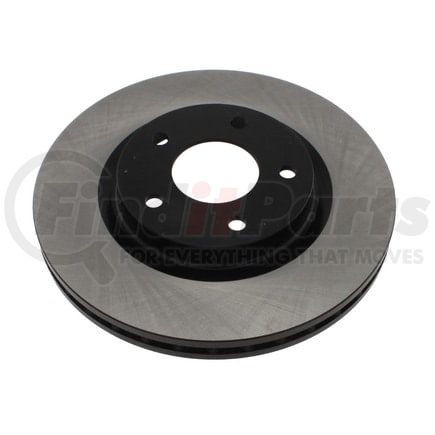

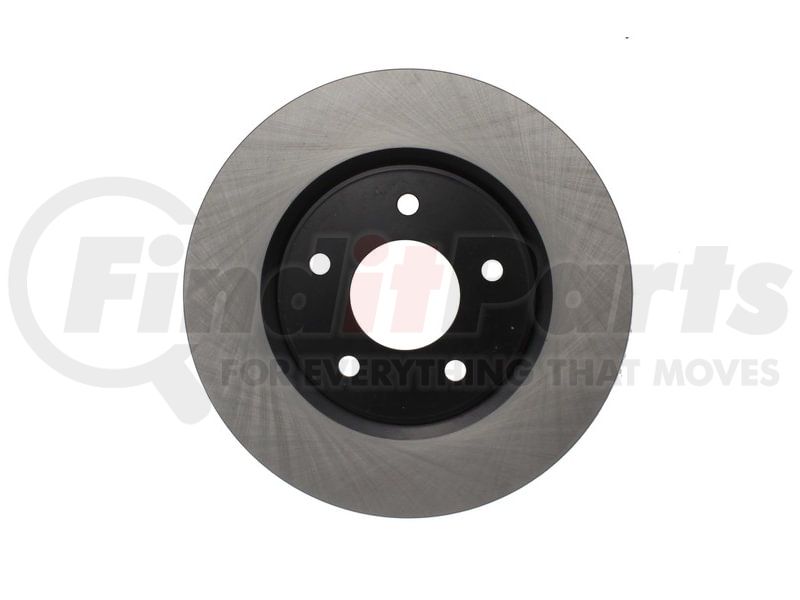

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 780459R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.961 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.028 IN |
| Outside Diameter | 11.575 IN |
| Overall Height | 1.799 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 69 MM |
| Discard Thickness | 24.4 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 13 MM |
| Nominal Thickness | 26.1 MM |
| Outside Diameter | 294 MM |
| Overall Height | 45.7 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213447224 |
RAYBESTOS 780459R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH145706, YH145706C, YH145706P |
| AutoZone | 43153, 43153DG, 43153DL, DL43153 |
| Autopartsource | 591195 |
| Bendix | PRT5706 |
| Bosch | 16011438 |
| BrakeBest | 16011438, 780459, 780459FZN, 780459R, 780459RGS |
| Brembo | 09.A637.10 |
| Casting Numbers | 326251 |
| Centric Parts | 120.63067, 120.63067CRY, 121.63067, 126.63067CSL, 126.63067CSR, 126.63067SL, 126.63067SR, 227.63067L, 227.63067R, 320.63067 |
| Chrysler | 05105514AA, 5105514AA |
| Dura Corp | BR3134602, BR53038, BR900596, BR900752 |
| DuraGo | BR31346, BR31346-02, BR900752 |
| Eurorotor | 53235 |
| Mitsubishi | 4615A075, 4615A117 |
| Monroe Brakes | BD126509 |
| NAPA BRAKES | SDK6572 |
| Newtek Automotive USA | 53038 |
| PowerStop | AR8369EVC |
| Promax | 14-53038, 20-53038 |
| Qualis | 43153 |
| TRW | 4932, DF7792 |
| TopNotch | TN780459GEO |
| TruStar | 491195 |
| UAP | 2053038, 53038 |
| Ultra Brake | 53235 |
| WABCO - Archived | PS126509 |
| WORLDPAC | 1407-79992, 1427-731741 |
| Wagner Brake | BD126509, BD126509E |
| Winhere | 6620795 |
RAYBESTOS 780459R2 Fits Vehicles
- Chrysler 200 (2011-2014)
- Chrysler Cirrus (2009-2010)
- Chrysler Sebring (2007-2010)
- Dodge Avenger (2008-2014)
- Dodge Caliber (2007-2012)
- Jeep Compass (2007-2017)
- Jeep Patriot (2007-2017)
- Mitsubishi ASX (2013-2015)
- Mitsubishi Eclipse Cross (2018-2020, 2022-2023)
- Mitsubishi Lancer (2008-2016)
- Mitsubishi Outlander (2007-2020)
- Mitsubishi Outlander Sport (2011-2023)
- Mitsubishi RVR (2011-2018)
