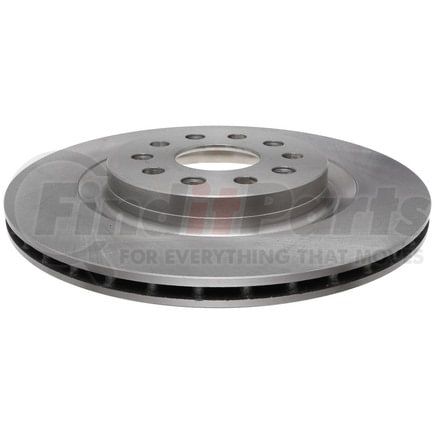

RAYBESTOS 782850R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
Raybestos R-Line Brake Rotor
RAYBESTOS 782850R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.835 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.787 IN |
| Inside Diameter | 9.291 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Diameter | 0.661 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.866 IN |
| Outside Diameter | 13.78 IN |
| Overall Height | 1.618 IN |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Misc. Holes | 5 |
| Center Hole Diameter | 72 MM |
| Discard Thickness | 20 MM |
| Inside Diameter | 236 MM |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 16.8 MM |
| Nominal Thickness | 22 MM |
| Outside Diameter | 350 MM |
| Overall Height | 41.1 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213419313 |
RAYBESTOS 782850R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH737159HC |
| Centric Parts | 120.58025, 121.58025 |
| Chrysler | 68341651AA, 68463428AA |
| DuraGo | BR901968, BR901968-01 |
| Dynamic Friction Company | 604-42045 |
| Jeep | 68341651AA |
| WORLDPAC | 1407-737159, 1427-737160 |
| Winhere | 6622928 |
RAYBESTOS 782850R Fits Vehicles
- Jeep Grand Cherokee (2022-2024)
- Jeep Grand Cherokee L (2021-2024)
