(888) 312-8812 Login SignupRAYBESTOS 782871FZN Raybestos Element3 Coated Brake Rotor
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 782871FZN Part Description
Manufacturer
Product Description

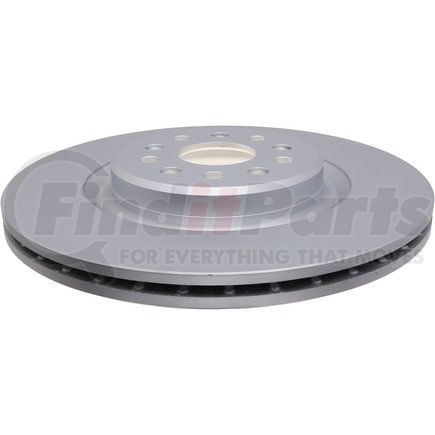

Raybestos Element3 Coated Brake Rotor
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
Raybestos Element3 Coated Brake Rotor
RAYBESTOS 782871FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.835 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Inside Diameter | 9.685 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Diameter | 0.669 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Outside Diameter | 15.354 IN |
| Overall Height | 1.909 IN |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Salability Restrictions | No |
| Misc. Holes | 5 |
| Center Hole Diameter | 72 MM |
| Discard Thickness | 26 MM |
| Inside Diameter | 246 MM |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 17 MM |
| Nominal Thickness | 28 MM |
| Outside Diameter | 390 MM |
| Overall Height | 48.5 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213419382 |
RAYBESTOS 782871FZN Cross References
| Brand | Part Number |
|---|---|
| Centric Parts | 120.58029, 121.58029 |
| Chrysler | 68346963AA |
| WORLDPAC | 1427-737156 |
| Winhere | 6622977 |
RAYBESTOS 782871FZN Fits Vehicles
- Jeep Grand Cherokee (2022-2024)
- Jeep Grand Cherokee L (2022-2023)
RAYBESTOS 782871FZN Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 782871FZN Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
RAYBESTOS 782871FZN Questions & Answers
No questions yet
Be the first to ask a question about this product!
